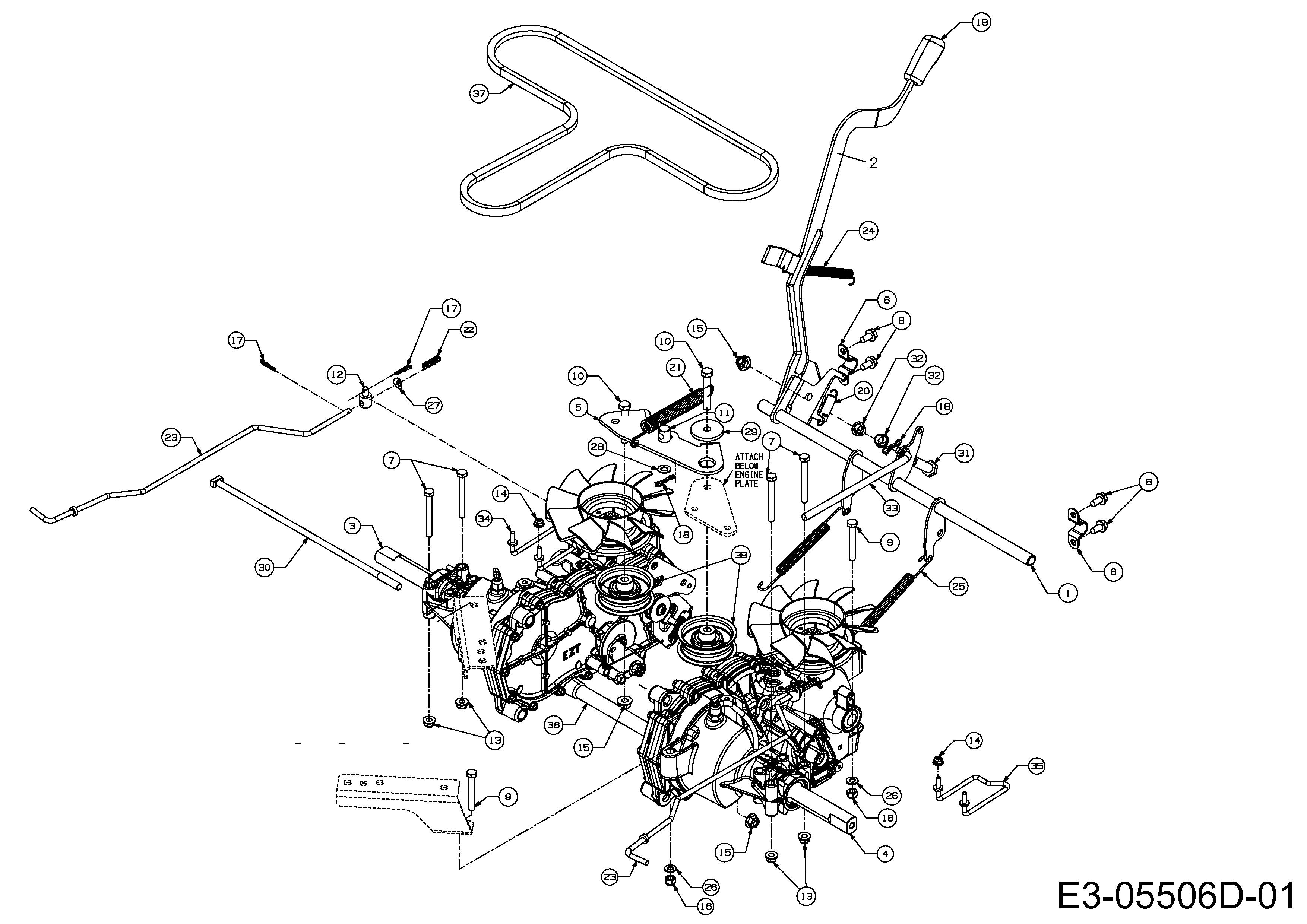

MTD012693

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04770	SHF:BRAKE	N/A	POA
002	603-04773	HNDL PARK BRAKE	N/A	POA
003	618-04868A	TRANS ASM HYDRO LH	£1,154.53	Add
004	618-04869A	TRANS ASM HYDRO RH	£1,154.53	Add
005	703-07318C	BRACKET IDLER	N/A	POA
006	703-07593	BRACKET BRAKE SHAFT	N/A	POA
007	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-05278	SCREW HEX CAP 5/16-24X2.25	N/A	POA
010	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
011	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
012	711-1530	FERRULE:.325 ID x .312 OD	£24.80	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04065	NUT	£4.02	Add
016	712-0411	NUT	£2.69	Add
017	714-0104	PIN INTERNAL COTTER	£2.78	Add
018	714-04040	PIN-COTTER	£4.38	Add
019	731-04735	Handle	£24.91	Add
020	732-0209	EXTENSION SPRING	£8.58	Add
021	732-04229	SPR:EXT:.75 DIA x 6.02	£14.35	Add
022	732-0437	COMPR. SPRING:.34 OD x 1.0 LG	£17.07	Add
023	732-04688A	WIRE LVR BYPASS	N/A	POA
024	732-0963	SPRING	£9.72	Add
025	732-0994	SPR:EXTN:.500 DIA x 7.0 LG	£14.30	Add
026	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
027	736-0271	WASHER	£3.16	Add
028	736-0314	WASHER-THRUST	£2.97	Add
029	738-04392	SPACER	£15.86	Add
030	738-04423		N/A	POA
031	738-0533	SHLD SCREW	£6.33	Add
032	741-0491	BEARING-NYLINER	£12.94	Add
033	747-05139A	ROD-BRAKE	N/A	POA
034	747-05277B	KEEPER BELT LH	N/A	POA
035	747-05278B	KEEPER BELT RH	£42.84	Add
036	750-05347	SPACER	N/A	POA
037	754-04250	BELT-A SEC X 63	£85.71	Add
038	756-04224	IDLER PULLEY	£28.15	Add
