MTD014659

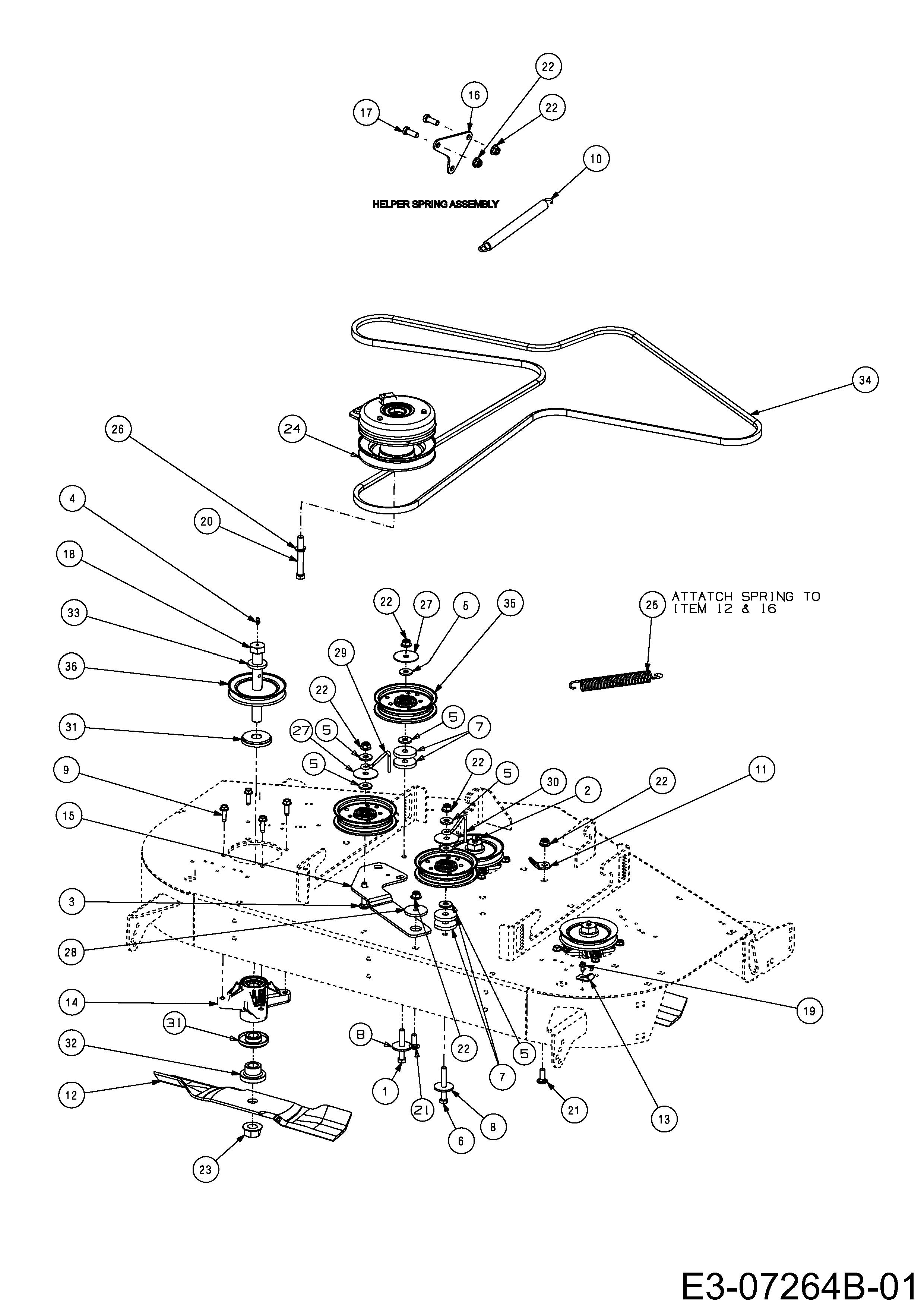

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD014659

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 00011861 HEX SCREW 3/8-16X2.50 N/A POA
002 737-3004 grease nipple N/A POA
003 00014270 CARRIAGE BOLT 3/8-16X2.00 N/A POA
004 00060078 grease nipple N/A POA
005 736-3052 WASH:FLAT:.406 X 1.00 X .105 £3.77 Add
006 710-3022 HEX BOLT UTV £3.58 Add
007 01003269 WASHER-FLAT £8.73 Add
008 01009253 WASHER-FLAT .390x1.5x.134 N/A POA
009 02000762 Screw N/A POA
010 02002629 SPRING-BRAKE TENSION N/A POA
011 02004195 MOUNTING BRACKET £17.88 Add
012 742-04417 BLADE HI LIFT £46.28 Add
013 16606-Z BRKT:HOOK:RETAINER 16606 £5.80 Add
014 618-04426 SPINDLE ASSY £136.79 Add
015 703-07616A NO LONGER AVAILABLE N/A POA
016 703-07641 PLT MOUNT SPRING N/A POA
017 710-0514 HEX BOLT £3.81 Add
018 710-05173A BLADE BOLT £39.07 Add
019 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
020 710-3157A HEX.SCREW HHCS:7/16-20:3.25GR5 £9.80 Add
021 710-3168 CARRIAGE BOLT 3/8 INCH X 1 INCH £7.01 Add
022 712-04065 NUT £4.02 Add
023 712-3078 NUT HEX FLANGE 3/4-16 £11.32 Add
024 717-05000 CLU:ELEC:PTO 46/50 £494.06 Add
025 732-0594A EXTENSION SPRING £25.17 Add
026 736-0171 WASHER £2.93 Add
027 736-3040 FLAT WASHER £13.16 Add
028 738-04392 SPACER £15.86 Add
029 747-04530 ROD KEEPER £19.05 Add
030 747-04938 ROD BELT KEEPER £15.67 Add
031 748-3065A SPCR:SPDL:DECK £14.96 Add
032 750-05420 SPACER BLADE .76X2.0X1.1 £20.99 Add
033 750-05553 SPACER .812 ID X .218 LG £12.50 Add
034 754-04044A BELT £69.34 Add
035 753-08171 KIT IDLER PULLEY £37.57 Add
036 756-3089 V-PULLEY 4.0 DIA £31.38 Add
