MTD012690

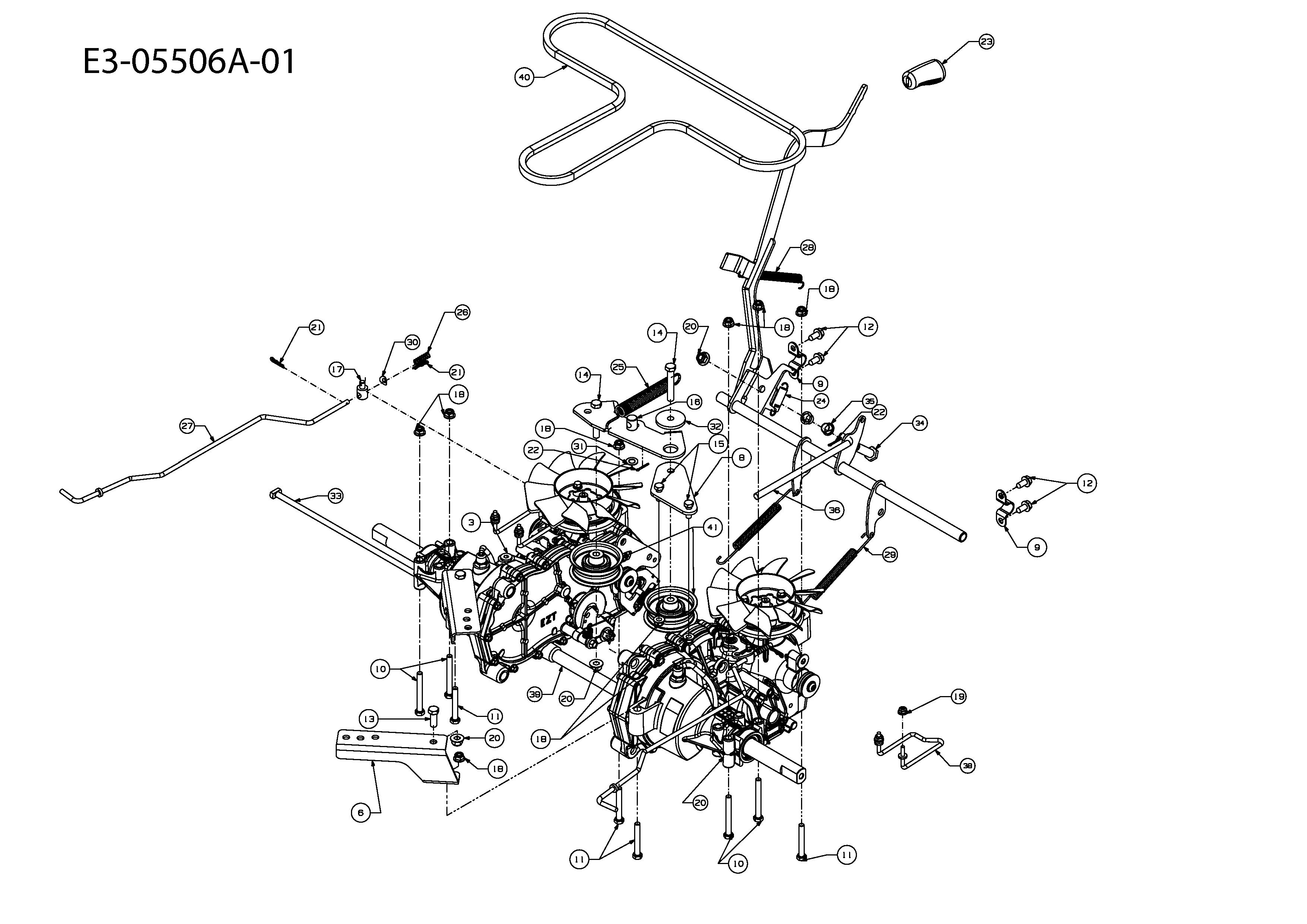

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012690

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04770 SHF:BRAKE N/A POA
002 603-04773 HNDL PARK BRAKE N/A POA
003 618-04868 TRANS ASM HYDRO LH N/A POA
004 618-04869 TRANS ASM HYDRO RH N/A POA
005 703-07318A N/A POA
006 703-07367 N/A POA
007 703-07368 N/A POA
008 703-07484 N/A POA
009 703-7593 N/A POA
010 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
011 710-0395 SCRE.HHCS:5/16-18:2.25:GR2:STD £5.26 Add
012 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
013 710-0514 HEX BOLT £3.22 Add
014 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
015 710-3038 BOLT £8.22 Add
016 711-0832 FERRULE:3/8-24x.375 DIA:HT TRT £16.65 Add
017 711-1530 FERRULE:.325 ID x .312 OD £40.85 Add
018 712-04063 FLANGED NUT £3.54 Add
019 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
020 712-04065 NUT £3.39 Add
021 714-0104 PIN INTERNAL COTTER £2.36 Add
022 714-0507 COTTER PIN 3/32 DIA £2.65 Add
023 731-04735 Handle £58.85 Add
024 732-0209 EXTENSION SPRING £7.19 Add
025 732-04229 SPR:EXT:.75 DIA x 6.02 £16.32 Add
026 732-0437 COMPR. SPRING:.34 OD x 1.0 LG £15.93 Add
027 732-04688A WIRE LVR BYPASS N/A POA
028 732-0963 SPRING £8.15 Add
029 732-0994 SPR:EXTN:.500 DIA x 7.0 LG £16.82 Add
030 736-0175 SPRING WASHER £2.87 Add
031 736-0314 WASHER-THRUST £2.52 Add
032 738-04392 SPACER £13.25 Add
033 738-04423 N/A POA
034 738-0533 SHLD SCREW £6.81 Add
035 741-0491 BEARING-NYLINER £3.79 Add
036 747-05139A ROD-BRAKE N/A POA
037 747-05277 N/A POA
038 747-05278 N/A POA
039 750-05347 SPACER N/A POA
040 754-04250 BELT-A SEC X 63 £66.63 Add
041 756-04224 IDLER PULLEY £23.48 Add
