MTD012683

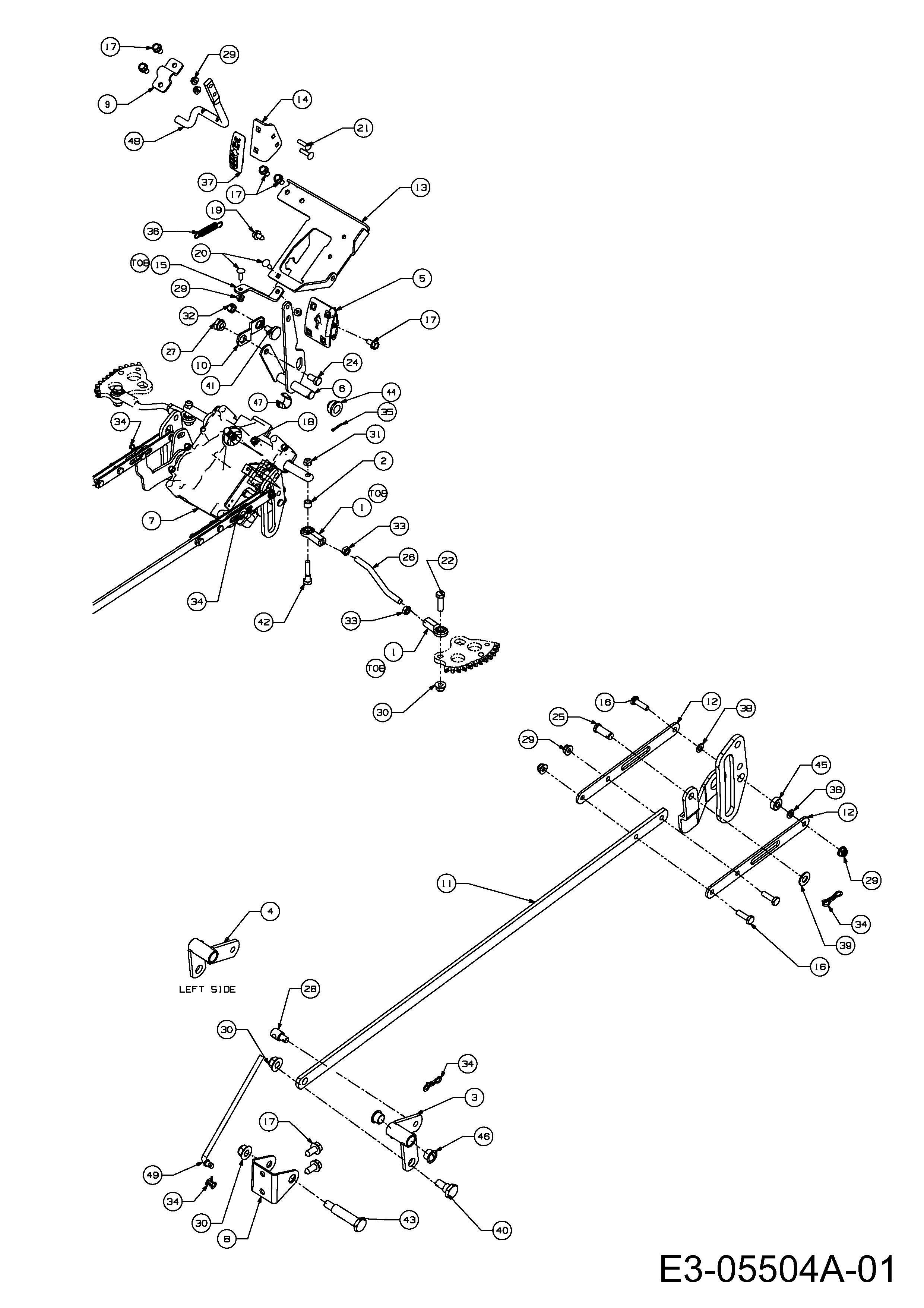

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	01000451	JOINT:BALL:FEMALE 3/8-24 RH	N/A	POA
002	02003170	SPACER .334X.500X.375	N/A	POA
003	603-04736		N/A	POA
004	603-04737		N/A	POA
005	603-04752	PEDAL FORWARD	£102.78	Add
006	603-04765		N/A	POA
007	618-04846		N/A	POA
008	703-07455		N/A	POA
009	703-07465	BRACKET	N/A	POA
010	703-07466A		N/A	POA
011	703-07566		N/A	POA
012	703-07567	PLATE STEERING LINK	N/A	POA
013	703-07642A		N/A	POA
014	703-07675		N/A	POA
015	703-07786		N/A	POA
016	710-0206	NO LONGER AVAILABLE	N/A	POA
017	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
018	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
019	710-0604A	SCREW	£3.62	Add
020	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
021	710-0932	SCR:CRG:1/4-20:1.00:GR1	£5.70	Add
022	710-3005	BOLT	£3.24	Add
023	710-3015	SCREW HEX CAP	£3.33	Add
024	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
025	711-0173	PIN-CLEVIS:.375 DIA x .969	£8.35	Add
026	711-05270	STEERING LINK	£44.66	Add
027	711-05274	HUB ADJ NEUTRAL	N/A	POA
028	711-05364	FERRULE-ADJ 1/4-28 x 1.00	£13.39	Add
029	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
030	712-04065	NUT	£4.02	Add
031	712-0411	NUT	£2.69	Add
032	712-3000	NUT:HEXLK:3/8-16 GR.B CTRLK	£3.20	Add
033	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
034	714-04040	PIN-COTTER	£4.38	Add
035	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
036	732-04262	SPRING:EXTN:.429 OD x 2.515	£12.34	Add
037	735-04113	PAD:FOOT:REV	£11.55	Add
038	736-04299	Washer plain	N/A	POA
039	736-0864	WASHER THRUST	£3.58	Add
040	738-0143	SHOULDER BOLT	£12.24	Add
041	738-0322A	SCR:SHLD:.625 DIA x.217	£15.44	Add
042	738-04427	SCREW-SHOULDER	£11.84	Add
043	738-0509	SHLD:SCR:.500 X 1.825	£20.18	Add
044	741-0225	HEX FLANGE BEARING	£4.92	Add
045	741-04280	BRG:BALL:.25x.6875x.25:DS	£11.43	Add
046	741-0491	BEARING-NYLINER	£12.94	Add
047	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
048	747-05174		N/A	POA
049	747-05311	ROD HYDRO CONTROL	£31.10	Add
