MTD012685

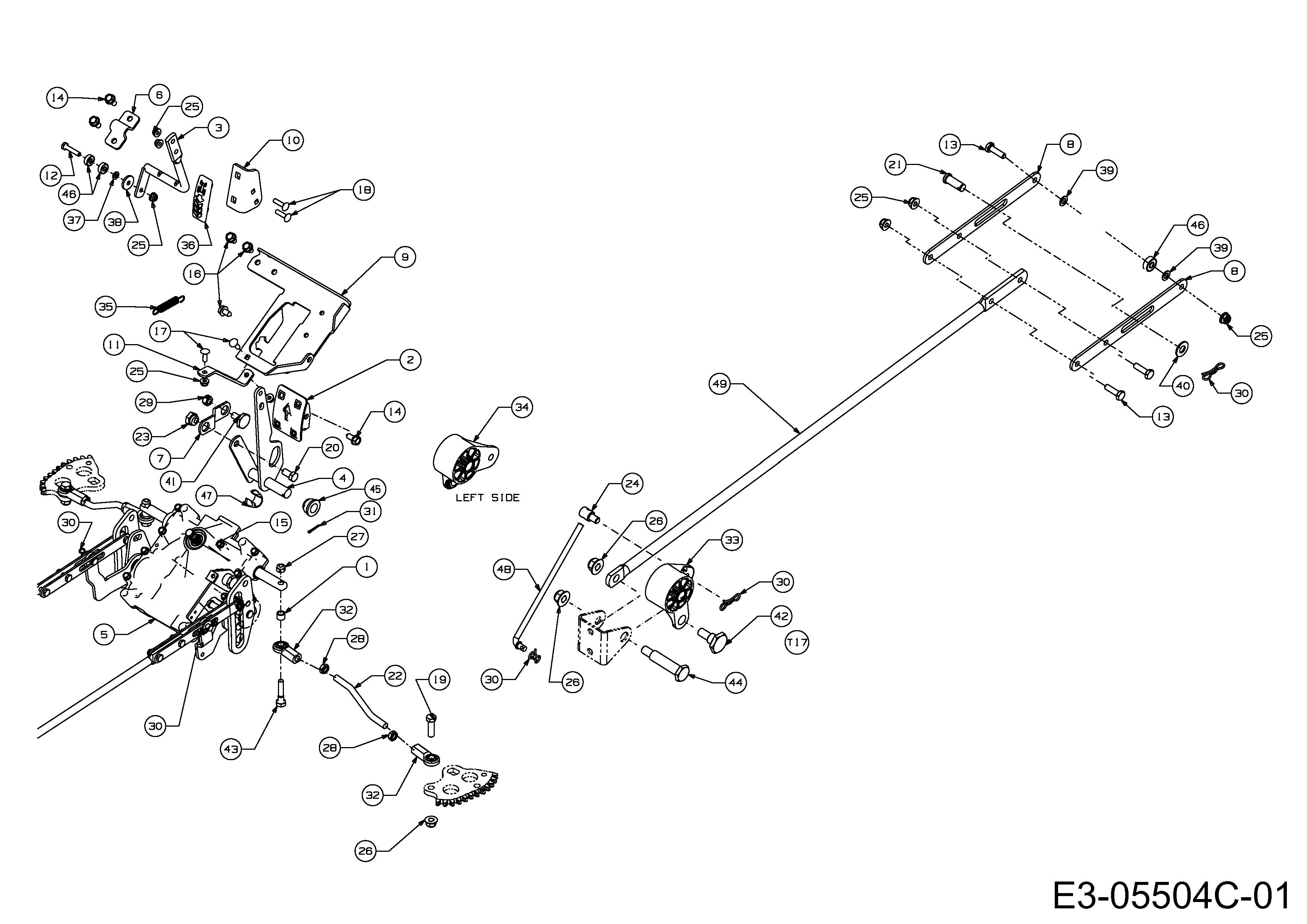

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02003170	SPACER .334X.500X.375	N/A	POA
002	603-04752	PEDAL FORWARD	£102.78	Add
003	603-04849	ROD REVERSE PEDAL	N/A	POA
004	603-04850	BRKT FWD PDL PIVOT	N/A	POA
005	618-04846B	STEERING ASM-SYNCHRO HYDRO	£2,785.17	Add
006	703-07465	BRACKET	N/A	POA
007	703-07466B	BRACKET	N/A	POA
008	703-07567	PLATE STEERING LINK	N/A	POA
009	703-07642D		N/A	POA
010	703-07675A	PEDAL REVERSE	N/A	POA
011	703-07786A	SUPPORT PDL BRKT	N/A	POA
012	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
013	710-0206	NO LONGER AVAILABLE	N/A	POA
014	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0604A	SCREW	£3.62	Add
017	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
018	710-0932A	SCR:CRG:1/4-20:1.000:GR5	£3.39	Add
019	710-3005	BOLT	£3.24	Add
020	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
021	711-0173	PIN-CLEVIS:.375 DIA x .969	£8.35	Add
022	711-05270	STEERING LINK	£44.66	Add
023	711-05274	HUB ADJ NEUTRAL	N/A	POA
024	711-05364	FERRULE-ADJ 1/4-28 x 1.00	£13.39	Add
025	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
026	712-04065	NUT	£4.02	Add
027	712-0411	NUT	£2.69	Add
028	712-0711	NUT	£3.07	Add
029	712-3000	NUT:HEXLK:3/8-16 GR.B CTRLK	£3.20	Add
030	714-04040	PIN-COTTER	£4.38	Add
031	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
032	723-04080	JOINT BALL FEMALE 3/8-24 RH	£35.94	Add
033	731-07615	ARM HYDRO PIVOT RH	N/A	POA
034	731-07616	ARM HYDRO PIVOT LH	£25.70	Add
035	732-04262	SPRING:EXTN:.429 OD x 2.515	£12.34	Add
036	735-04113	PAD:FOOT:REV	£11.55	Add
037	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
038	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add
039	736-04299	Washer plain	N/A	POA
040	736-0864	WASHER THRUST	£3.58	Add
041	738-0322A	SCR:SHLD:.625 DIA x.217	£15.44	Add
042	738-04409	SCR:SHOULDER: .500 x .434	£4.70	Add
043	738-04427	SCREW-SHOULDER	£11.84	Add
044	738-0509	SHLD:SCR:.500 X 1.825	£20.18	Add
045	741-0225	HEX FLANGE BEARING	£4.92	Add
046	741-04280	BRG:BALL:.25x.6875x.25:DS	£11.43	Add
047	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
048	747-05311	ROD HYDRO CONTROL	£31.10	Add
049	747-05397	ROD HYDRO LINK	N/A	POA
