MTD017684

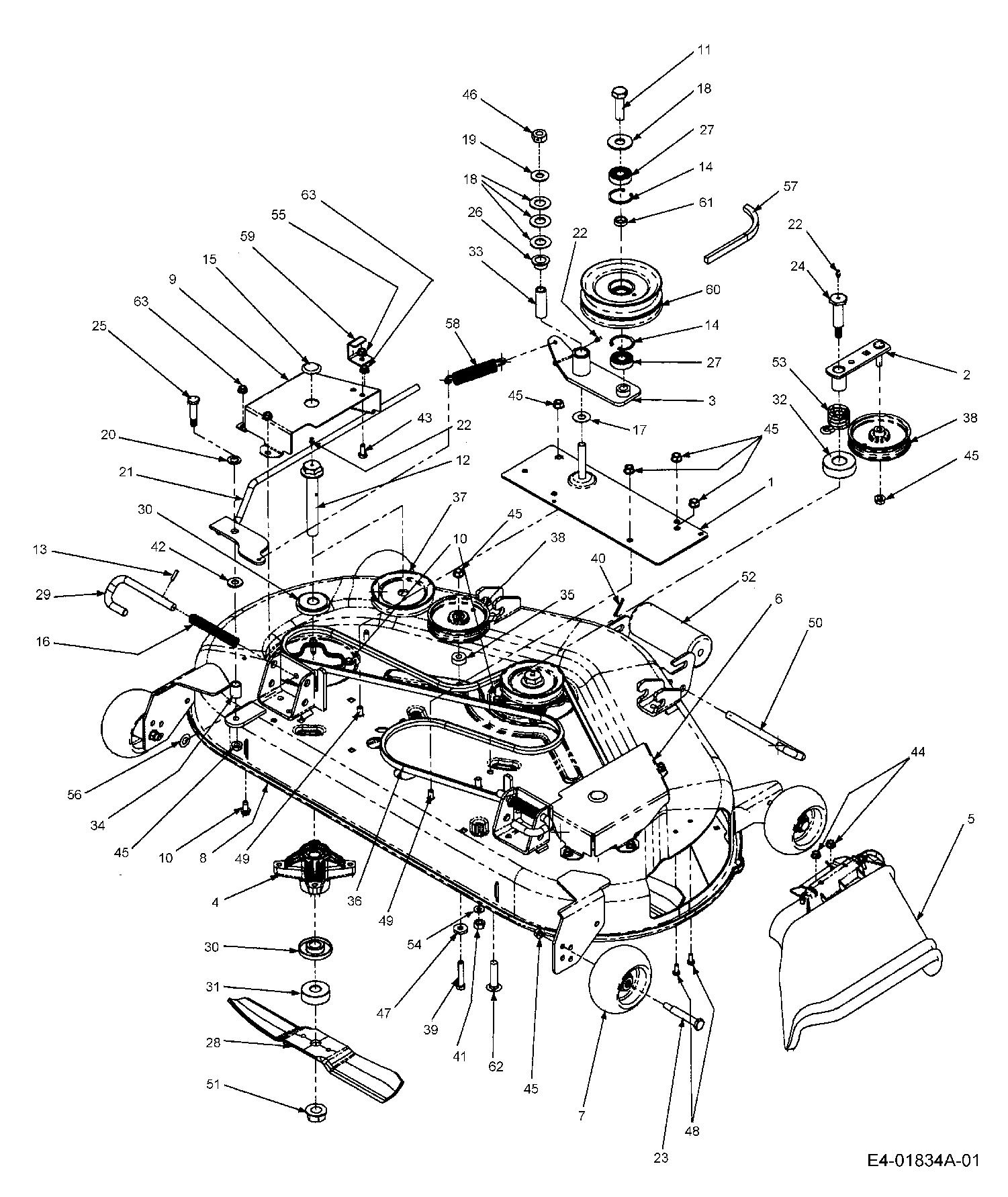

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	01008590	PLATE ASM-DECK MTG YELO RZ CTP	N/A	POA
002	01008593	ARM ASM-IDLER	£140.52	Add
003	01008589	IDLER ASM-PULLEY YELO RZ CTP	£75.04	Add
004	618-3129C	SPINDLE, BLADE ASSY.	£216.30	Add
005	631-0094A	CHUTE	£109.13	Add
006	01008597		N/A	POA
007	703-1890A	WHEEL ASSY W/TIRE	£29.03	Add
008	01008481		N/A	POA
009	01008586	COVER-LH BELT YELO RZ CTP	£96.39	Add
010	01008620	6KT.-SCHRAUBE	£6.39	Add
011	01008530	SCREW-HEX CAP 5/8-18X2.0 GR5	£28.06	Add
012	710-1852	BOLT-HEX HD BLADE 3/4-16x5.37	£42.49	Add
013	715-3003	PIN, SPIRAL SPRING	£15.25	Add
014	716-3020	RING-INTERNAL SNAP	£7.71	Add
015	726-3045	PLUG,BUTTON	£6.94	Add
016	732-0802	Spring	£5.26	Add
017	736-0100	WASH:FLAT:.531 x 1.25 x .036	£3.20	Add
018	736-0188	FI-WASHER	£6.15	Add
019	736-0179	WASHER-FL	£14.34	Add
020	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
021	01008538	HANDLE ASM-TENSION YELO RZ C	N/A	POA
022	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
023	738-3056	SHOULDER BOLT	£12.94	Add
024	738-3172	BOLT SHOULDER	£25.85	Add
025	738-0213	SCREW-SHLD	£7.41	Add
026	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
027	741-0524A	BRG BALL 625X40X12:6203	£31.45	Add
028	01008616	BLADE-15.94" HI LIFT	£74.01	Add
029	747-3013	NO LONGER AVAILABLE	N/A	POA
030	748-3065A	SPCR:SPDL:DECK	£14.96	Add
031	748-3020	SPACER	£23.00	Add
032	01008456	SPACER .76X1.5X.50 RZ CTP	£90.55	Add
033	750-0656	NO LONGER AVAILABLE	N/A	POA
034	750-0150	SPACER	£14.20	Add
035	750-3119	SPACER	£13.99	Add
036	754-3039	V-BELT	£130.78	Add
037	756-3089	V-PULLEY 4.0 DIA	£31.38	Add
038	01004081	PULLEY-IDLER	£66.11	Add
039	00002528	SCREW-HEX CAP 3/8-16X2.00	£21.27	Add
040	00003107	COTTER-PIN	N/A	POA
041	00027279	HEX NUT	£3.10	Add
042	00010958	WASHER-FLAT	£3.24	Add
043	00013406	SCREW-HEX CAP 5/16	£3.31	Add
044	712-3027	LOCK NUT	£2.79	Add
045	00022560	NO LONGER AVAILABLE	N/A	POA
046	00023287	NUT-HEX CENTER LOCK 1/2-20	£4.18	Add
047	00083192	WASHER-FLAT	£3.80	Add
048	01000338	HHCS:1/4-20:.620:GR5:STD	£3.39	Add
049	710-3178	BOLT SHORT NECK CARR	£11.46	Add
050	711-3314	PIN, ROLLER	£33.00	Add
051	01000380		N/A	POA
052	01000385	ROLLER, FRONT AND REAR	£42.89	Add
053	732-3067	SPRING	£31.86	Add
054	736-3015	WASH:FLAT: .469 x .875 x .105	£18.36	Add
055	712-3004A	HEX FLANGE NUT	£2.97	Add
056	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
057	01002391	BELT-PTO V-TYPE	£94.66	Add
058	732-0826	SPRING-EXTENSION 01002874	£13.56	Add
059	01004863	BRACKET-ROD STOP	£54.87	Add
060	01008376P	PULLEY-DOUBLE	£170.23	Add
061	01008404P	SPACER .635X.88X.28	£25.70	Add
062	00030276	BOLT-CARRIAGE 3/8X1.5 RZ CTP	£14.89	Add
063	00012166	NUT-HEX 5/16-18	£4.17	Add
