MTD016320

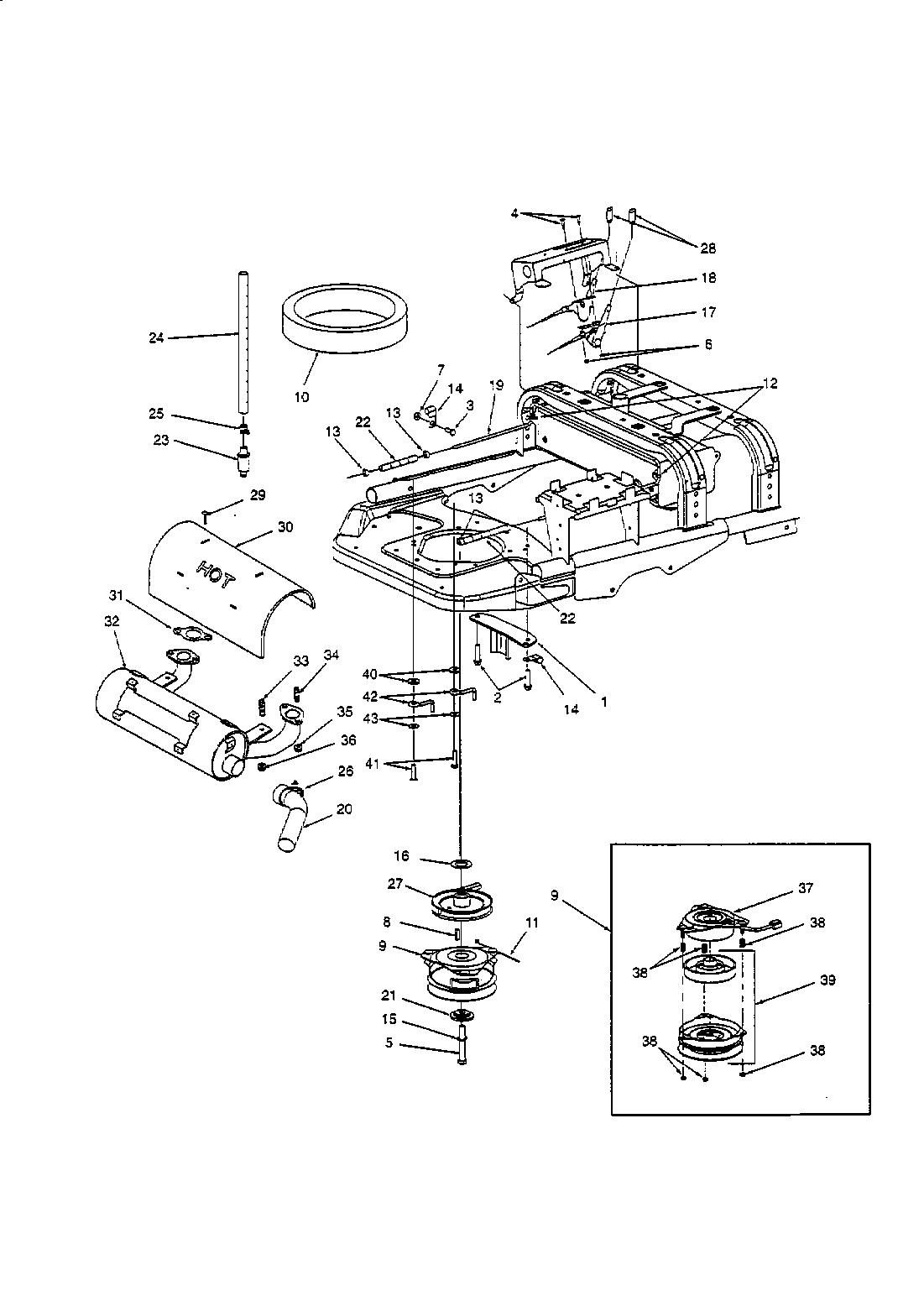

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016320

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0317 RET ASM:CLU N/A POA
002 710-1007 SCREW HEX HD TAP £3.48 Add
003 710-3008 HEX BOLT £2.57 Add
004 710-3009 SCR:T:#10-24:0.750:PANPHI N/A POA
005 710-3157A HEX.SCREW HHCS:7/16-20:3.25GR5 £7.86 Add
006 712-0161 NYLOK NUT #10-24 £3.84 Add
007 712-3004A HEX FLANGE NUT £2.52 Add
008 714-0128 KEY-SQ:1/4:1.00 £5.99 Add
009 717-3389 CLUTCH:ELEC:PTO:CVX 1" HIGH £396.29 Add
010 723-0454 SEALING WASHER £45.48 Add
011 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
012 712-0431 NUT £2.71 Add
013 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
014 717-3446 CLUTCH ASSY,PTO £285.16 Add
015 720-0302 KNOB N/A POA
016 723-0457 SEAL £70.73 Add
017 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
018 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
019 726-3008 BRACKET £2.85 Add
020 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
021 736-0171 WASHER £2.50 Add
022 736-0242 BELL WASHER £3.14 Add
023 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £2.92 Add
024 746-3073 CABLE, CHOKE CONTROL £45.58 Add
025 746-3074 CABLE,THROTTLE CONTROL £45.58 Add
026 747-3362 ROD-BELT RETAINER REAR N/A POA
027 756-3060 PULLEY £61.24 Add
028 720-0302 KNOB N/A POA
029 KH-25-086-40 BOLT THRU N/A POA
030 KH-24-281-06 DUCT,HEAT SHIELD N/A POA
031 KH-24-041-02 EXHAUST GASKET £5.75 Add
032 KH-24-068-08 EXHAUST N/A POA
033 KH-24-072-08 BOLT SPINDLE N/A POA
034 KH-25-072-04 STUD £4.68 Add
035 KH-M-0841080 NUT,HEX FLANGE, M8X1.25 £2.85 Add
036 KH-M-0641060 Nut £2.92 Add
037 759-3694 CLUTCH-MAGNETIC £601.68 Add
038 759-3697 KIT-SPRING & NUT £28.21 Add
039 759-3739 ARMATURE ASSY. £658.12 Add
040 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £2.92 Add
041 710-1008 SCR:TTSEMS:3/8-16:1.875:HXLWSH N/A POA
042 747-3362 ROD-BELT RETAINER REAR N/A POA
043 736-3010 WASH:FL:.407X.812X.135:HD £2.41 Add
