MTD016316

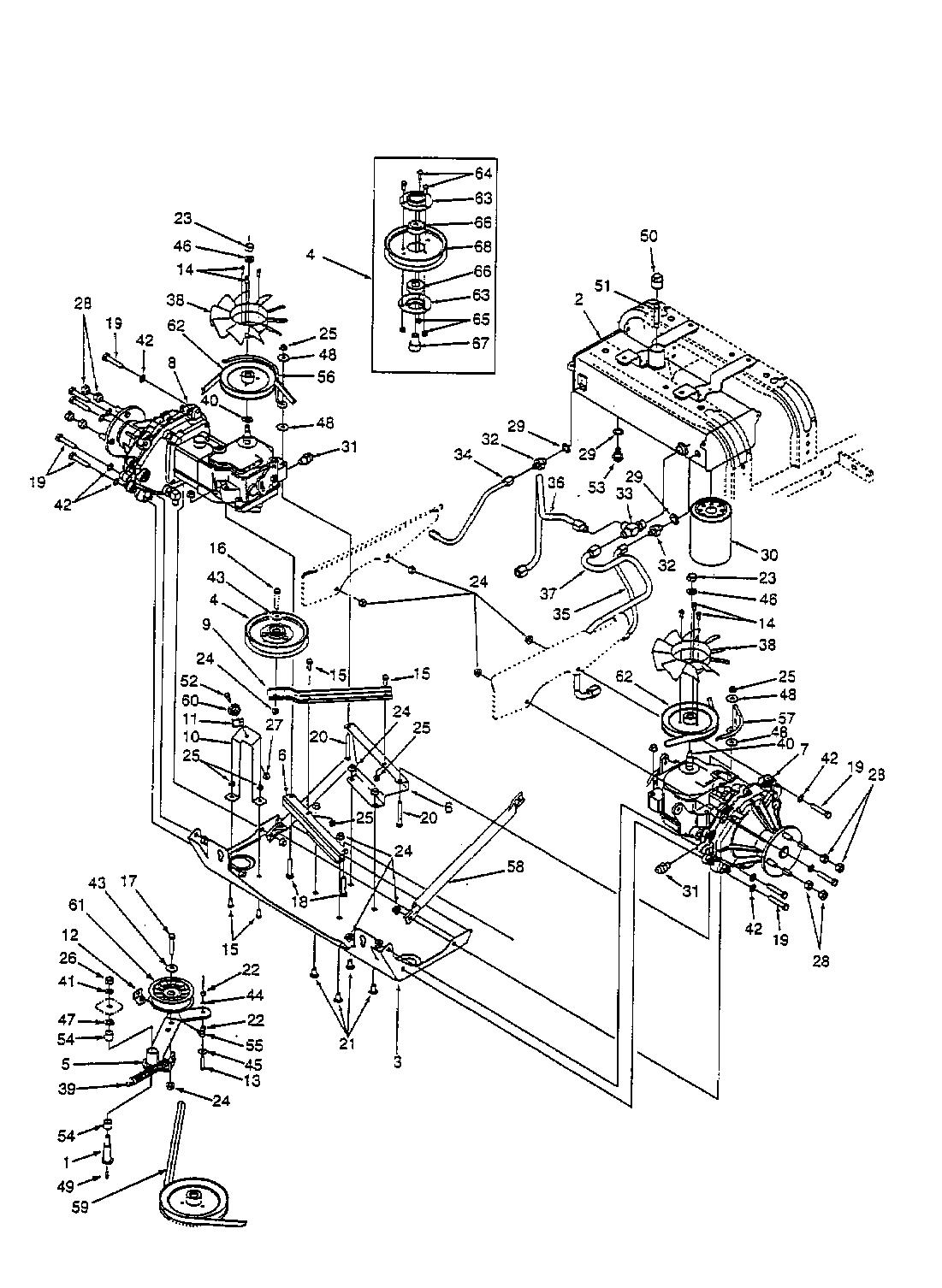

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016316

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 738-3108 BOLT-SHOULDER 01000505 £59.30 Add
002 603-0344 TANK ASSY.-HYDRAULIC £264.79 Add
003 603-0358B FLOW SLIDE ASSY. N/A POA
004 603-0362 PULLEY £184.77 Add
005 603-0377A ARM ASSY.,ILDER N/A POA
006 603-0450 SUPPORT ASSY.,PUMP N/A POA
009 703-2888 ARM IDLER £30.53 Add
010 703-3168 BRACKET,PULLEY MOUNTING N/A POA
011 703-3169 BRACKET,CABLE N/A POA
012 703-3174 BRACKET,CABLE N/A POA
013 710-0428 SCREW HHCS:1/4-28:1.25:GR5:STD (OBSOLETE) N/A
014 710-1189 SCR:C:#12-24:0.625:HXINDWSH N/A POA
015 736-0222 WASH:LOCK:1/4:EXTRN (OBSOLETE) N/A
016 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
017 710-0347 HEX SCR £3.14 Add
018 710-3103 SCRE.HHCS:5/16-18:2.00:GR5:STD £2.87 Add
019 710-3144 SCREW £2.94 Add
020 710-3156 BOLT-HEX N/A POA
021 710-3178 BOLT SHORT NECK CARR £11.02 Add
022 712-0138 NUT £2.57 Add
023 712-0333 NUT:HEX:1/2-20:GR2 £3.60 Add
024 712-0431 NUT £2.71 Add
025 712-3004A HEX FLANGE NUT £2.52 Add
026 712-3019 NUT £12.07 Add
027 712-0117 NUT:CTR LOCK:1/4-28:GR A £2.76 Add
028 712-3050 NUT:LUG:7/16-14 £6.58 Add
029 721-0223 SEAL,DRAIN PLUG £18.39 Add
02A 737-3120 FLUID-DRIVE SYSTEM £63.55 Add
030 723-3071 FILTER ELEMENT,OIL £77.56 Add
031 727-3100 FITTING,CONNECTOR N/A POA
032 727-3116 FITTING,CONNECTOR N/A POA
033 727-3118 FITTING,TEE N/A POA
034 727-3120 TUBE,INLET LH N/A POA
035 727-3121 TUBE,INLET RH N/A POA
036 727-3122 TUBE-OUTLET LH N/A POA
037 727-3123 TUBE,OUTLET RH N/A POA
038 731-1449A FAN:BLADE:10 £18.55 Add
039 732-0478 EXT. SPRING DECK CONTROL £12.36 Add
040 732-0729 CIRCLIP £3.27 Add
041 736-0171 WASHER £2.50 Add
042 736-0185 FLAT WASHER (RED) £3.04 Add
043 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £2.92 Add
044 736-0329 L. WASHER £1.28 Add
045 736-0342 FLAT WASHER £2.52 Add
046 736-0921 WASHER:LOCK:1/2:REGULAR DUTY £3.30 Add
047 736-3015 WASH:FLAT: .469 x .875 x .105 £22.29 Add
048 736-3089 WASHER-FL N/A POA
049 737-0280 FITTING-GREASE £4.72 Add
050 737-3069 OIL- PLUG N/A POA
051 737-3070 PIPE-DIPSTICK N/A POA
052 738-0924 HEX SCREW £3.11 Add
053 738-0940 PLUG,OIL DRAIN £4.68 Add
054 741-3063 BUSHING £37.17 Add
055 746-3080 CABLE,DECLUTCHING N/A POA
056 747-3360 ROD,BELT RATAINING RH £22.16 Add
057 747-3361 ROD,BELT RETAINING LH £22.16 Add
058 749-3040 STRUT,FRAME N/A POA
059 754-3076 V-BELT, TRANSMISSION DRIVE £71.67 Add
060 756-0625 cable idler wheel £18.76 Add
061 756-0627D PUL:IDLR:FLAT 3.5 OD £22.97 Add
062 756-0974 PULLEY £70.50 Add
063 703-2907 CUP,BEARING £12.60 Add
064 710-0751 BOLT 069 £2.68 Add
065 712-0324 HEX. INS L NUT £1.36 Add
066 741-0600 BRG BALL 17x40x12 6203 DS £15.34 Add
067 750-3176 SPACER,IDLER ARM PULLEY N/A POA
068 756-3085 PULLEY,IDLER 5.0IN N/A POA
55A 746-3080 CABLE,DECLUTCHING N/A POA
59A 754-3077 V-Belt £60.83 Add
