MTD016520

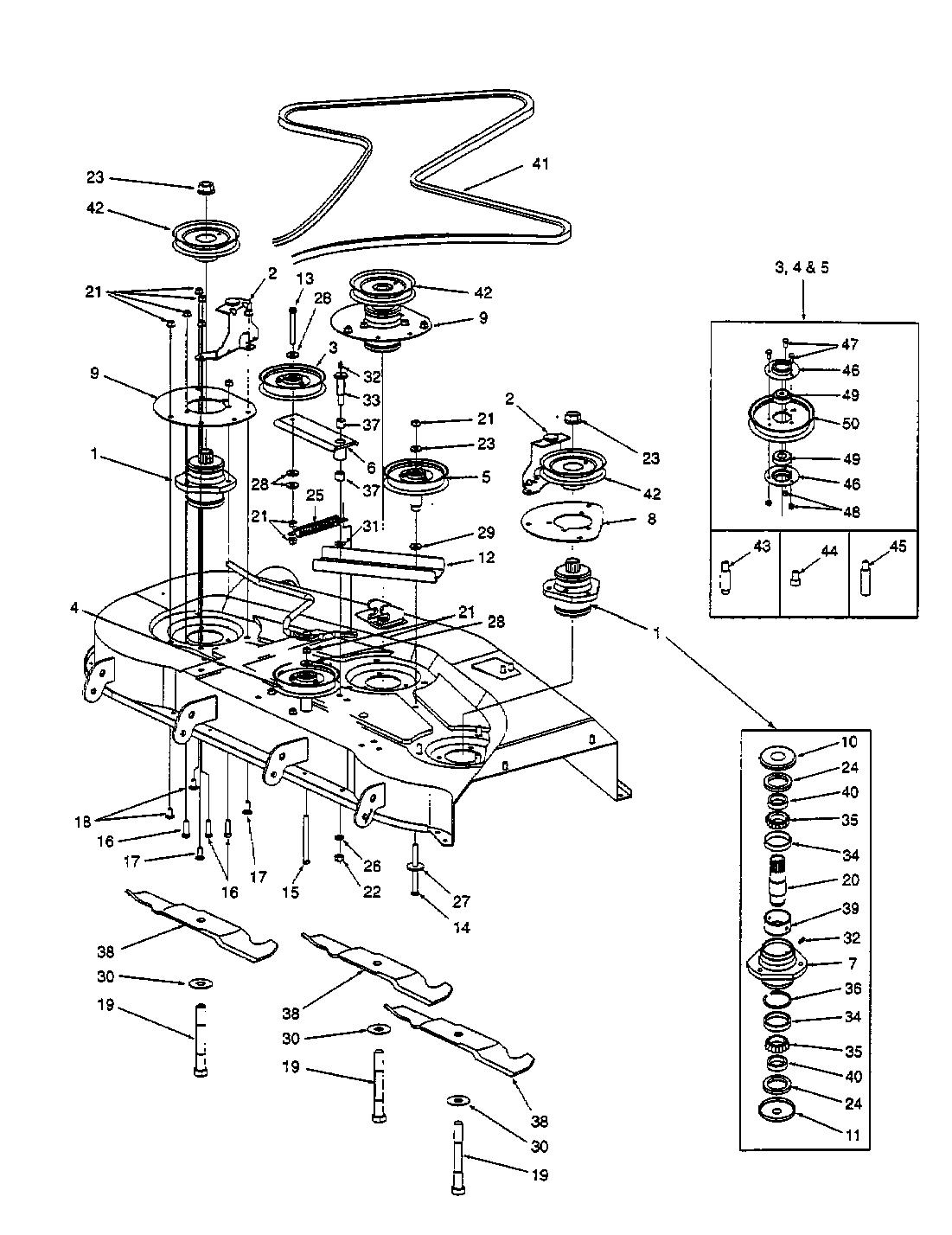

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016520

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0043A BLADE SPINDLE ASSY. N/A POA
002 603-0326 COVER-BELT N/A POA
003 603-0362 PULLEY £217.04 Add
004 603-0406 PULLEY,IDLER ASSY.5" £169.91 Add
005 603-0407 PULLEY,IDLER ASSY.5" £236.09 Add
006 603-0469 ARM ASSY.-IDLER N/A POA
007 619-3022 SPINDLE,HOUSING N/A POA
008 703-2178 COVER,PLATE RIGHT N/A POA
009 703-2179A Shield N/A POA
010 703-2184 CUP,SPINDLE TOP N/A POA
011 703-2185 CAP,SPINDLE BOTTOM £8.85 Add
012 703-2849 CHANNEL N/A POA
013 710-0521 SCREW HHCS:3/8-16:3.00:GR8:STD £5.19 Add
014 710-0693 SCREW-HEX £18.67 Add
015 710-0693 SCREW-HEX £18.67 Add
016 710-3005 BOLT £3.24 Add
017 710-3168 CARRIAGE BOLT 3/8 INCH X 1 INCH £7.01 Add
018 710-3178 BOLT SHORT NECK CARR £11.46 Add
019 710-3252 BOLT,BLADE 3/4-16X6.0 £41.84 Add
020 711-3342 BLADE SPINDLE £95.10 Add
021 712-0431 NUT £3.20 Add
022 712-3019 NUT £14.44 Add
023 712-3078 NUT HEX FLANGE 3/4-16 £11.32 Add
024 721-0385 SEALING WASHER £16.52 Add
025 732-0848 TORS. SPRING:.29 ID X 1.14 LG £7.58 Add
026 736-0171 WASHER £2.93 Add
027 736-0227 WASH:FLAT:.390x1.500x.134 £10.28 Add
028 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £3.47 Add
029 736-0316 WASHER £5.97 Add
030 736-3014 WASHER £10.72 Add
031 736-3015 WASH:FLAT: .469 x .875 x .105 £18.36 Add
032 737-0280 FITTING-GREASE £13.79 Add
033 738-3108 BOLT-SHOULDER 01000505 £60.78 Add
034 741-3050 CUP,BEARING £27.23 Add
035 741-3051 TAPER LK BUSHING £57.08 Add
036 741-3052 SPACER,BEARING CUP £16.02 Add
037 741-3063 BUSHING £38.18 Add
038 759-3820 MOWER BLADE £61.37 Add
039 750-3073 SPACER,BEARING CUP N/A POA
040 750-3187 SEALING WASHER £81.64 Add
041 754-3078 NO LONGER AVAILABLE N/A POA
041 754-3083 V-Belt £157.43 Add
042 756-3082 PULLEY,SPINDLE £102.30 Add
043 750-3175 SPACER £55.51 Add
044 750-3176 SPACER,IDLER ARM PULLEY N/A POA
045 750-3177 SPACER £41.38 Add
046 703-2907 CUP,BEARING £13.77 Add
047 710-0751 BOLT 069 £3.39 Add
048 712-0324 HEX. INS L NUT £3.69 Add
049 741-0600 BRG BALL 17x40x12 6203 DS £18.36 Add
050 756-3085 PULLEY,IDLER 5.0IN N/A POA
