MTD016509

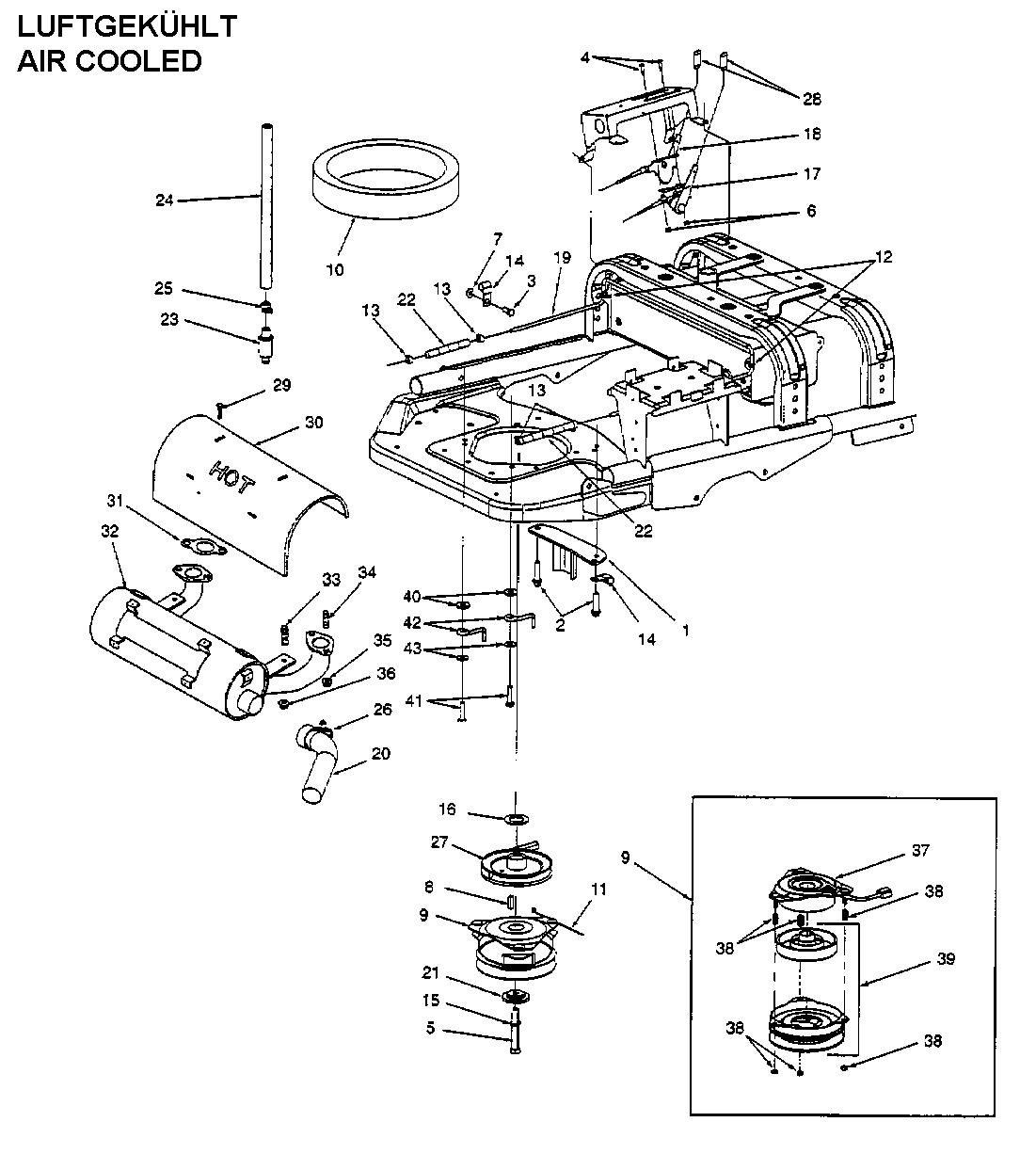

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0317	RET ASM:CLU	N/A	POA
002	710-1007	SCREW HEX HD TAP	£4.14	Add
003	710-3008	HEX BOLT	£3.03	Add
004	710-3009	NO LONGER AVAILABLE	N/A	POA
005	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
006	712-0161	NYLOK NUT #10-24	£6.05	Add
007	712-3004A	HEX FLANGE NUT	£2.97	Add
008	714-0128	KEY-SQ:1/4:1.00	£7.41	Add
009	717-3389	CLUTCH:ELEC:PTO:CVX 1" HIGH	£484.28	Add
010	723-0454	SEALING WASHER	£50.26	Add
011	725-0157	NO LONGER AVAILABLE	N/A	POA
012	725-1711	CLIP:WIRE RETAINER	£3.76	Add
013	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
014	726-3008	BRACKET	£2.93	Add
015	736-0171	WASHER	£2.93	Add
016	736-0250	WASH:FLAT:1.00x1.75x.107	£10.32	Add
017	746-3066	CABLE,CHOKE ASSY.	£63.37	Add
018	746-3070	THROTTLE CABLE	£43.58	Add
019	749-3048	TUBE,FUEL LINE	N/A	POA
020	749-3071	EXHAUST MANIFOLD	£72.74	Add
021	750-3106	SPACER,CLUTCH	£55.98	Add
022	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
023	751-10517A	OIL DRAIN	£38.87	Add
024	751-3141-MET	HOSE-OIL DRAIN MTR	£13.04	Add
025	751-3142	CAP:DRAIN:OIL	£17.58	Add
026	751-3147	CLAMP,MUFFLER	£41.84	Add
027	756-3060	PULLEY	£67.76	Add
028	720-0302	KNOB	N/A	POA
029	KH-25-086-40	BOLT THRU	N/A	POA
030	KH-24-281-06	DUCT,HEAT SHIELD	N/A	POA
031	KH-24-041-02	GASKET,EXHAUST	£6.46	Add
032	KH-24-068-08	EXHAUST	N/A	POA
033	KH-24-072-08	BOLT SPINDLE	N/A	POA
034	KH-25-072-04	STUD	£4.98	Add
035	KH-M-0841080	NUT HEX FLANGE	£3.31	Add
036	KH-M-0641060	NUT	£3.03	Add
037	759-3694	CLUTCH-MAGNETIC	£667.55	Add
038	759-3697	KIT-SPRING & NUT	£31.09	Add
039	759-3739	ARMATURE ASSY.	£730.17	Add
040	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
041	710-1008	NO LONGER AVAILABLE	N/A	POA
042	747-3362	ROD-BELT RETAINER REAR	N/A	POA
043	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
