MTD016696

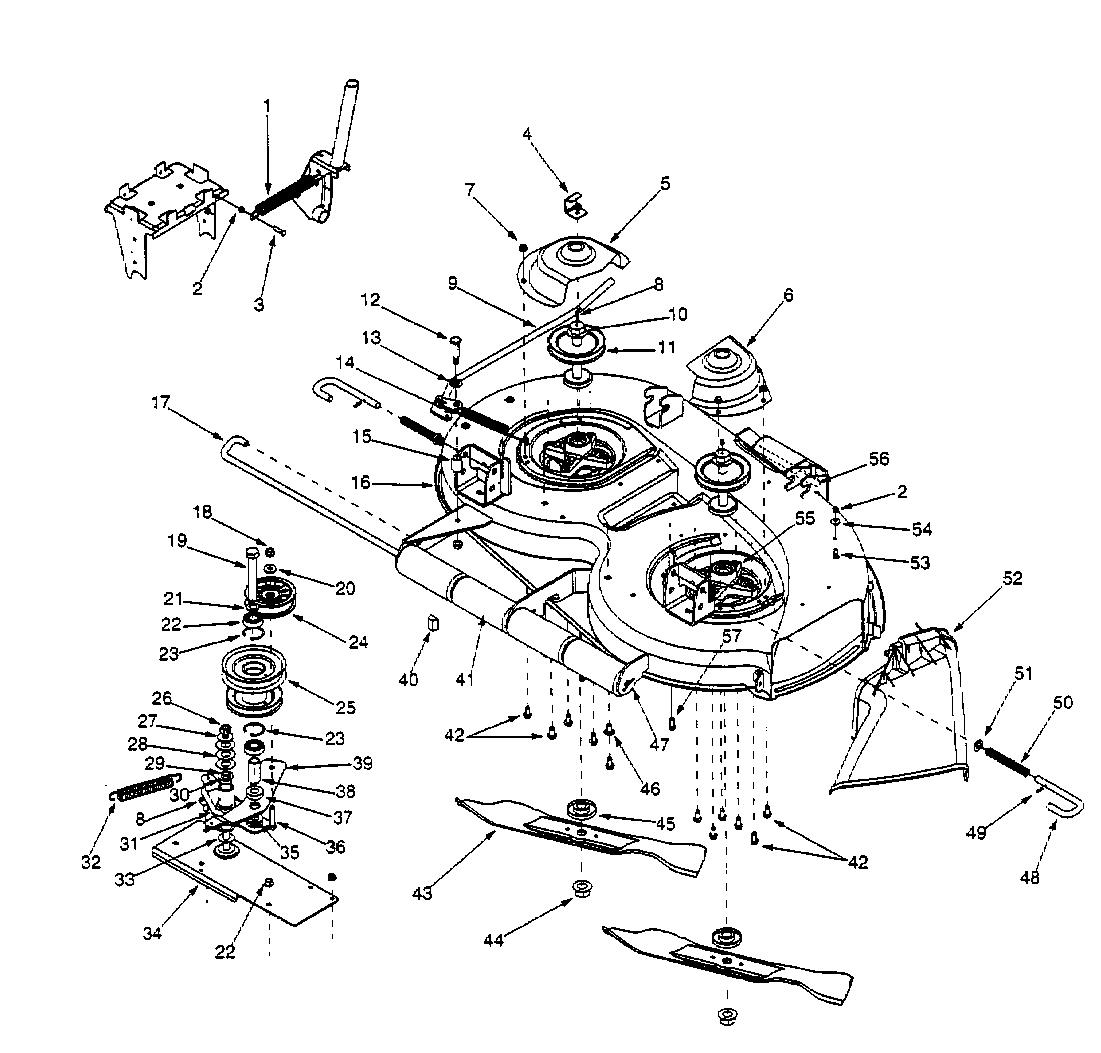

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add
002	712-3006	NUT	£2.77	Add
003	710-0597	HEX SEMS SCREW	£2.97	Add
004	703-2559	BRACKET	£4.05	Add
005	703-2945	COVER,BELT LEFT	N/A	POA
006	703-3237	CVR:BELT:DECK 46" RH	N/A	POA
007	712-3004A	HEX FLANGE NUT	£2.97	Add
008	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
009	603-0580	ARM-HGT ADJ CONNECT	N/A	POA
010	710-1336A	BOLT, SPINDLE	£39.86	Add
011	756-3089	V-PULLEY 4.0 DIA	£31.38	Add
012	738-0213	SCREW-SHLD	£7.41	Add
013	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
014	732-0851A	SPRING,EXT.1"	£34.65	Add
015	750-0151	SPCR:.550IDx.750ODx1.125	£12.04	Add
016	603-0316	DECK ASSY.42"	N/A	POA
017	711-3358	ROD:GRILL:SUPT G STY	N/A	POA
018	712-0431	NUT	£3.20	Add
019	710-3151	BOLT-HEX	£29.25	Add
020	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
021	736-0290	WASHER FLAT CODE H140 AND BEFORE	£11.52	Add
022	741-0524A	BRG BALL 625X40X12:6203	£31.45	Add
023	716-3020	RING-INTERNAL SNAP	£7.71	Add
024	756-0627D	PUL:IDLR:FLAT 3.5 OD	£27.53	Add
025	756-3103	PULLEY-DOUBLE	£234.79	Add
026	712-0239	LOCK NUT	£12.14	Add
027	736-0179	WASHER-FL	£14.34	Add
028	736-0188	FI-WASHER	£6.15	Add
029	750-0656	NO LONGER AVAILABLE	N/A	POA
030	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
031	603-0581	ARM,PIVOT ASSY.	£142.07	Add
032	732-0850	SPR:EXTN:1.0 OD X 6.140 LG	£38.31	Add
033	736-0100	WASH:FLAT:.531 x 1.25 x .036	£3.20	Add
034	603-0584	PLATE ASSY-MOUNTINCUB YELLOW	N/A	POA
035	736-0187	FLAT WASHER	£3.19	Add
036	710-3037	SCREW-HEX	£4.22	Add
037	738-0988	SPCR:SHLDR:0.875 DIA. X 0.245	£28.42	Add
038	750-3164	SLEEVE	N/A	POA
039	703-3147	ARM:IDLER PIVOT	£77.14	Add
040	754-3092	BELT, SPINDLE	£106.92	Add
041	731-3005	ROLLER	£42.43	Add
042	710-1260A	SCREW	£4.00	Add
043	759-3830	BLADE	£55.77	Add
044	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
045	748-3065A	SPCR:SPDL:DECK	£14.96	Add
046	710-3178	BOLT SHORT NECK CARR	£11.46	Add
047	714-0115	COTTER PIN	£3.42	Add
048	747-3013	NO LONGER AVAILABLE	N/A	POA
049	715-3003	PIN, SPIRAL SPRING	£15.25	Add
050	732-0802	Spring	£5.26	Add
051	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
052	631-0220B	CHUTE ASSY	£35.56	Add
053	710-0751	BOLT 069	£3.39	Add
054	736-0270	BELL WASHER	£3.91	Add
055	618-3129C	SPINDLE, BLADE ASSY.	£216.30	Add
056	711-3314	PIN, ROLLER	£33.00	Add
057	710-3008	HEX BOLT	£3.03	Add
