MTD016693

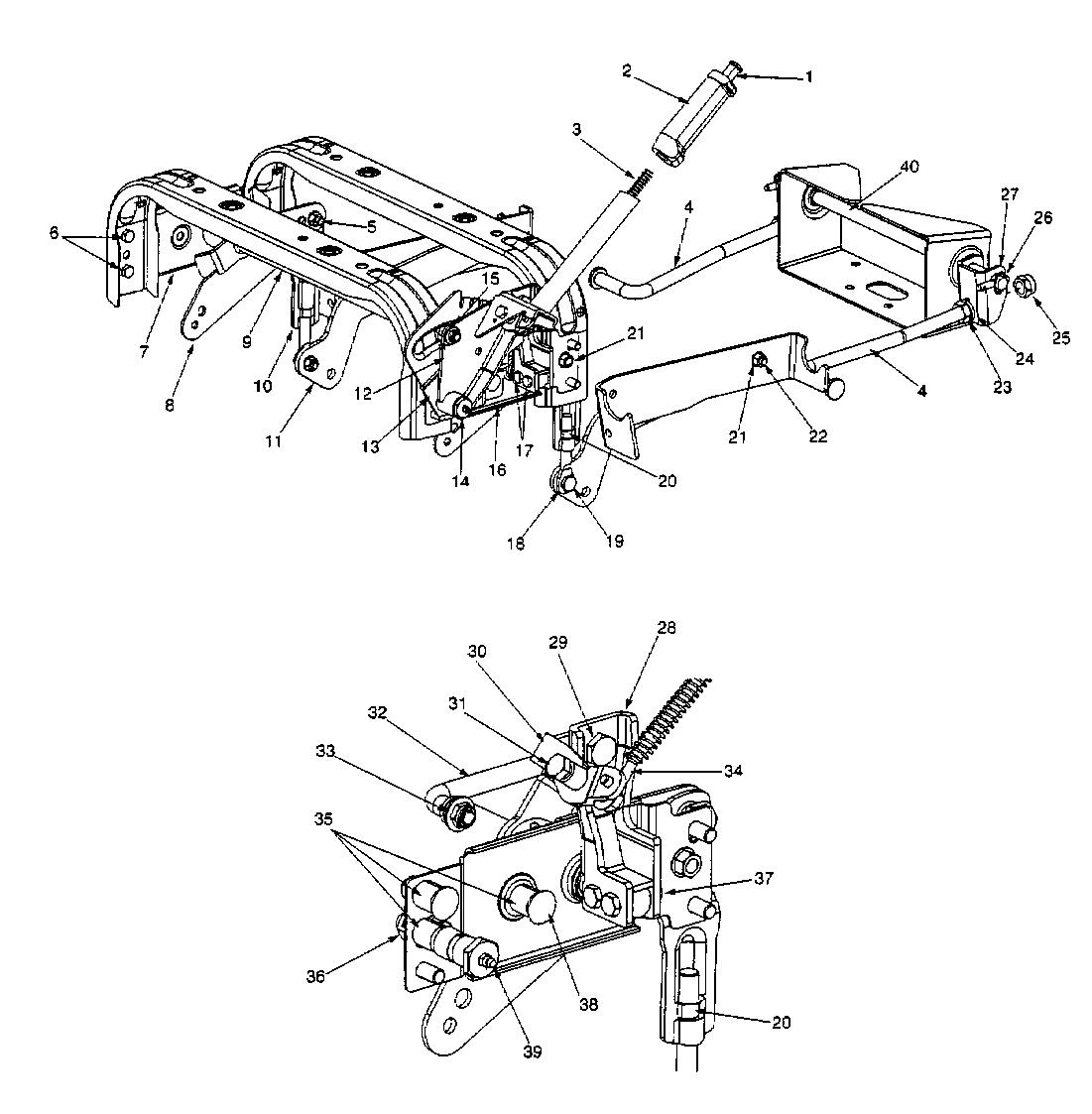

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016693

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 711-0642A BUTTON HANDLE £4.37 Add
002 731-3158 GRIP:HNDL:DECK LIFT £18.52 Add
003 732-3097 COMP SPRING:.4ID x 8.52 LG £5.99 Add
004 747-3405 FRONT LIFT ROD N/A POA
005 738-0507B SHOULDER BOLT £5.78 Add
006 710-0216 HHCS:3/8-16:.75:GR5:STD £2.95 Add
007 603-0422 BRACKET,SHAFT LH. N/A POA
008 603-0370 LINK,PIVOT ASSY. N/A POA
009 603-0313 SHAFT ASSY-LIFT N/A POA
010 703-2621 LINK, ADJUSTABLE DECK LIFT N/A POA
011 703-2780 LINK, PARALLEL LIFT N/A POA
012 603-0327 LEVER N/A POA
013 703-2772 PANEL-SELECT 5SP £41.47 Add
014 738-3150 ROD N/A POA
015 712-3020 NUT:JAMLK:3/8-16:GR5:NYLON N/A POA
016 603-0423 BRKT:AXLE:RH N/A POA
017 710-3083 SCREW-SHLD N/A POA
018 711-0773 SUSPENSION BRACKET £9.30 Add
019 738-0380 SCR:SHLDR:.500x.270:3/8-16 £10.27 Add
020 712-0206 NUT £2.89 Add
021 712-0431 NUT £2.71 Add
022 738-3151 SCR:SHLD:.56 X .27:3/8-16 N/A POA
023 712-3015 NUT £8.90 Add
024 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
025 712-3016 NUT:HEXLK:5/8-11:GR5:NYLON £19.34 Add
026 711-3266 CLEVIS, PIN £17.87 Add
027 703-3407 BRKT:MT:HOLD DOWN ROD N/A POA
028 603-0401 ARM ASM:LIFT £65.88 Add
029 738-0183 SCREW-SHLD .500X.215" (OBSOLETE) (OBSOLETE) N/A
030 603-0257 FORK, LIFT £47.06 Add
031 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
032 747-3276 ROD, LIFT LINK £26.61 Add
033 736-0300 WASHER £2.39 Add
034 747-3267 ASM:SHFT LINK DECK-PAINTED N/A POA
035 750-3200 SPACER,IDLER ARM PULLEY N/A POA
036 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.36 Add
037 712-3009 NUT:HEXLK:5/16-18:GRB:CTRLK £2.53 Add
038 710-0431 SREW: M5X20-8.8:DIN 603 092.34.137 £4.62 Add
039 737-0280 FITTING-GREASE £4.72 Add
040 747-3406 SEAT ROD £61.39 Add
