MTD016690

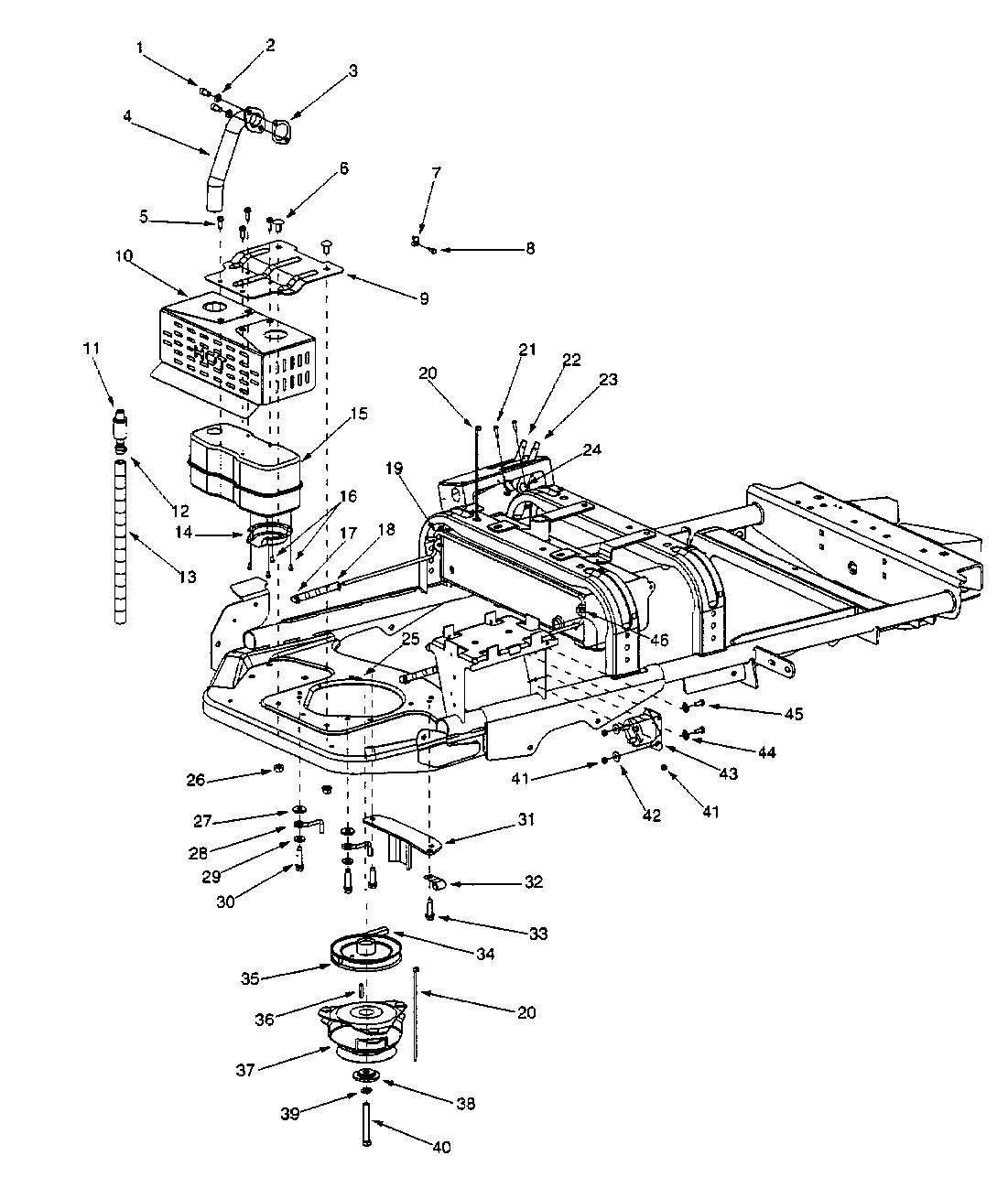

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-1314A	SOCKET HEAD SCREW	£3.24	Add
002	736-0119	LOCK WASHER 5/16	£3.33	Add
003	721-0208	EXHAUST GSKT 10 & 11 HP	£5.80	Add
004	751-0619A	PIPE:EXH:SINGLE B&S OHV	N/A	POA
005	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
006	710-3178	BOLT SHORT NECK CARR	£11.46	Add
007	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
008	710-1237	SCREW SELF TAP	£3.00	Add
009	703-2859	BRACKET,MUFFLER SUPPORT	N/A	POA
010	703-3004	EXHAUST PROTECTION	£218.78	Add
011	751-10517A	OIL DRAIN	£38.87	Add
012	751-3142	CAP:DRAIN:OIL	£17.58	Add
013	751-3141-MET	HOSE-OIL DRAIN MTR	£13.04	Add
014	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
015	751-0617C	MFLR SINGLE INLET	£115.83	Add
016	710-0148	SCR:F:#8-32:0.375 HXINDWSH	£3.58	Add
017	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
018	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
019	749-3048	TUBE,FUEL LINE	N/A	POA
020	725-0157	NO LONGER AVAILABLE	N/A	POA
021	710-3009	NO LONGER AVAILABLE	N/A	POA
022	746-3074	CABLE,THROTTLE CONTROL	£50.37	Add
023	746-3073	CABLE, CHOKE CONTROL	£50.37	Add
024	712-0161	NYLOK NUT #10-24	£6.05	Add
025	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
026	712-0431	NUT	£3.20	Add
027	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
028	747-3362	ROD-BELT RETAINER REAR	N/A	POA
029	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
030	710-1007	SCREW HEX HD TAP	£4.14	Add
031	603-0317	RET ASM:CLU	N/A	POA
032	726-3008	BRACKET	£2.93	Add
033	710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH	£7.56	Add
034	754-3076	V-BELT, TRANSMISSION DRIVE	£85.81	Add
035	756-3060	PULLEY	£67.76	Add
036	714-0128	KEY-SQ:1/4:1.00	£7.41	Add
037	717-3467	NO LONGER AVAILABLE	N/A	POA
038	750-3106	SPACER,CLUTCH	£55.98	Add
039	736-0171	WASHER	£2.93	Add
040	710-0510	HHCS:7/16-20:3.00:GR5:STD	£4.39	Add
041	712-0291	LOCK-NUT	£2.77	Add
042	736-0270	BELL WASHER	£3.91	Add
043	725-3001	SOLENOID SWITCH	£89.12	Add
044	736-3006	WASH:LOCK:1/4:INTEXT	£3.07	Add
045	710-0751	BOLT 069	£3.39	Add
046	725-1711	CLIP:WIRE RETAINER	£3.76	Add
