MTD016687

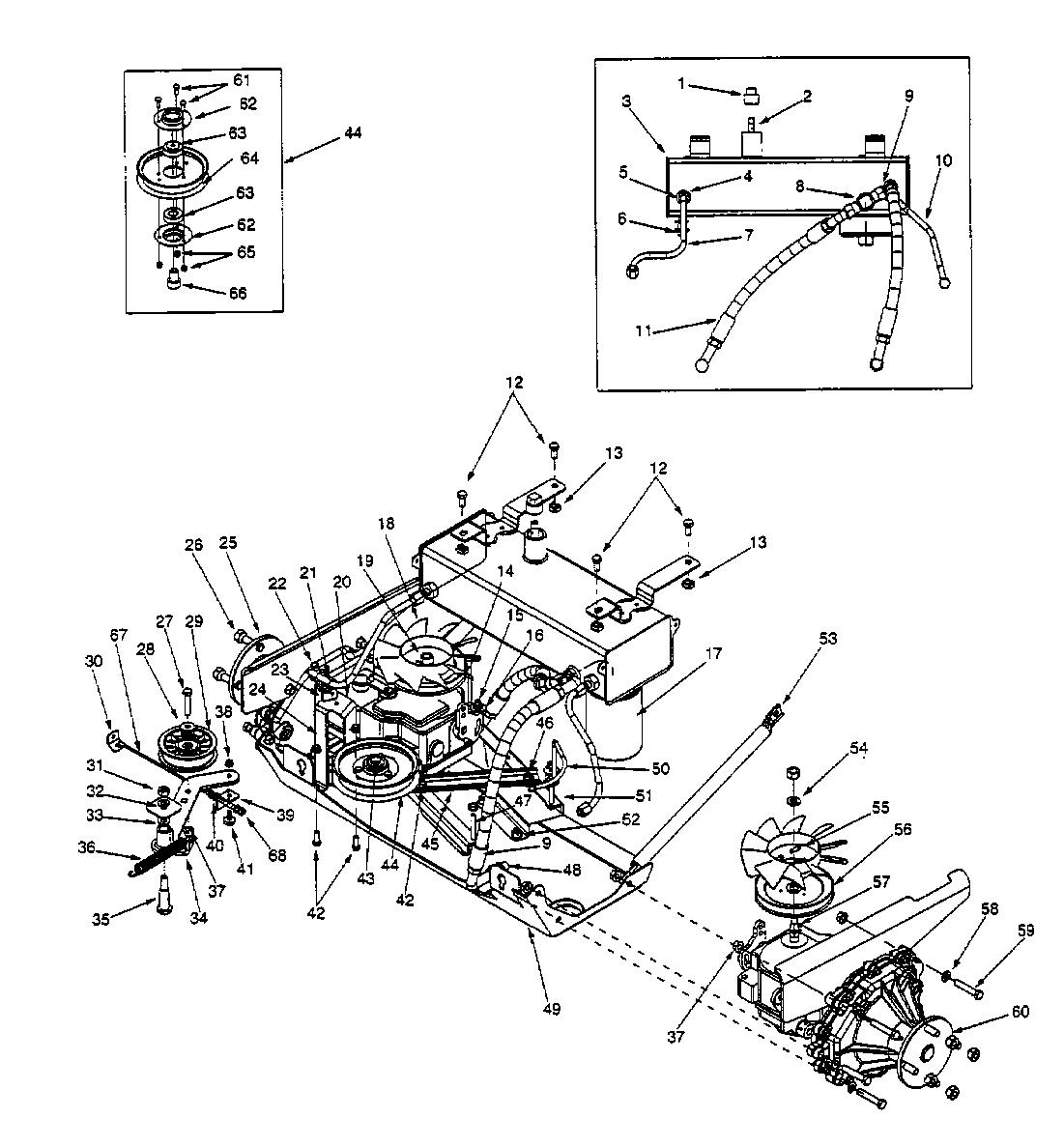

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016687

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 737-3069 OIL- PLUG N/A POA
002 737-3070A PIPE-DIPSTICK N/A POA
003 603-0639 TANK ASSY.-HYDRAULIC N/A POA
004 727-3116 FITTING,CONNECTOR N/A POA
005 721-0223 SEAL,DRAIN PLUG £18.39 Add
006 738-0940 PLUG,OIL DRAIN £4.68 Add
007 727-3120 TUBE,INLET LH N/A POA
008 727-3155 TEE, PLASTIC N/A POA
009 727-3154 HOSE-RIGHT OUTLET N/A POA
010 727-3121 TUBE,INLET RH N/A POA
011 727-3153 HOSE-LEFT OUTLET N/A POA
012 710-0216 HHCS:3/8-16:.75:GR5:STD £2.95 Add
013 712-0455 NUT:RET:1/4-20:C7956-1420 N/A POA
014 747-3360 ROD,BELT RATAINING RH £22.16 Add
015 710-0378 HHCS:5/16-18:2.50:GR5:STD £4.22 Add
016 736-3089 WASHER-FL N/A POA
017 723-3071 FILTER ELEMENT,OIL £77.56 Add
018 731-1449A FAN:BLADE:10 £18.55 Add
019 712-0333 NUT:HEX:1/2-20:GR2 £3.60 Add
020 703-3168 BRACKET,PULLEY MOUNTING N/A POA
021 756-0625 cable idler wheel £18.76 Add
022 738-0924 HEX SCREW £3.11 Add
023 703-3169 BRACKET,CABLE N/A POA
024 712-0117 NUT:CTR LOCK:1/4-28:GR A £2.76 Add
025 618-3110A DRIVE ASS´Y, COMPLETE FINAL N/A POA
026 712-3050 NUT:LUG:7/16-14 £6.58 Add
027 710-0347 HEX SCR £3.14 Add
028 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £2.92 Add
029 756-0627D PUL:IDLR:FLAT 3.5 OD £22.97 Add
030 703-3174 BRACKET,CABLE N/A POA
031 712-3019 NUT £12.07 Add
032 736-0171 WASHER £2.50 Add
033 736-3015 WASH:FLAT: .469 x .875 x .105 £22.29 Add
034 603-0377A ARM ASSY.,ILDER N/A POA
035 603-0102 BOLT-SHOULDER £64.84 Add
036 732-0478 EXT. SPRING DECK CONTROL £12.36 Add
037 712-0431 NUT £2.71 Add
038 712-3027 LOCK NUT £2.38 Add
039 703-3380 BRACKET-DECLUTCHING CABLE £61.79 Add
040 736-0119 LOCK WASHER 5/16 £2.81 Add
041 738-0704 SCREW-SHLD £6.12 Add
042 710-3008 HEX BOLT £2.57 Add
043 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
044 603-0362 PULLEY £184.77 Add
045 703-2888 ARM IDLER £30.53 Add
046 712-3004A HEX FLANGE NUT £2.52 Add
047 710-3103 SCRE.HHCS:5/16-18:2.00:GR5:STD £2.87 Add
048 727-3100 FITTING,CONNECTOR N/A POA
049 603-0358B FLOW SLIDE ASSY. N/A POA
050 747-3361 ROD,BELT RETAINING LH £22.16 Add
051 603-0450 SUPPORT ASSY.,PUMP N/A POA
052 710-3078 BOLT-PATCH 5/16-18X.62 N/A POA
053 749-3040 STRUT,FRAME N/A POA
054 736-0921 WASHER:LOCK:1/2:REGULAR DUTY £3.30 Add
055 710-1189 SCR:C:#12-24:0.625:HXINDWSH N/A POA
056 756-0974 PULLEY £70.50 Add
057 732-0729 CIRCLIP £3.27 Add
058 736-0185 FLAT WASHER (RED) £3.04 Add
059 710-3144 SCREW £2.94 Add
060 618-3110A DRIVE ASS´Y, COMPLETE FINAL N/A POA
061 710-0751 BOLT 069 £2.68 Add
062 703-2907 CUP,BEARING £12.60 Add
063 741-0600 BRG BALL 17x40x12 6203 DS £15.34 Add
064 756-3085 PULLEY,IDLER 5.0IN N/A POA
065 712-0324 HEX. INS L NUT £1.36 Add
066 750-3176 SPACER,IDLER ARM PULLEY N/A POA
067 746-3083 CABLE-DECLUTCHING ADJUSTABLE N/A POA
068 712-3007 HEX JAM NUT £2.59 Add
