MTD016686

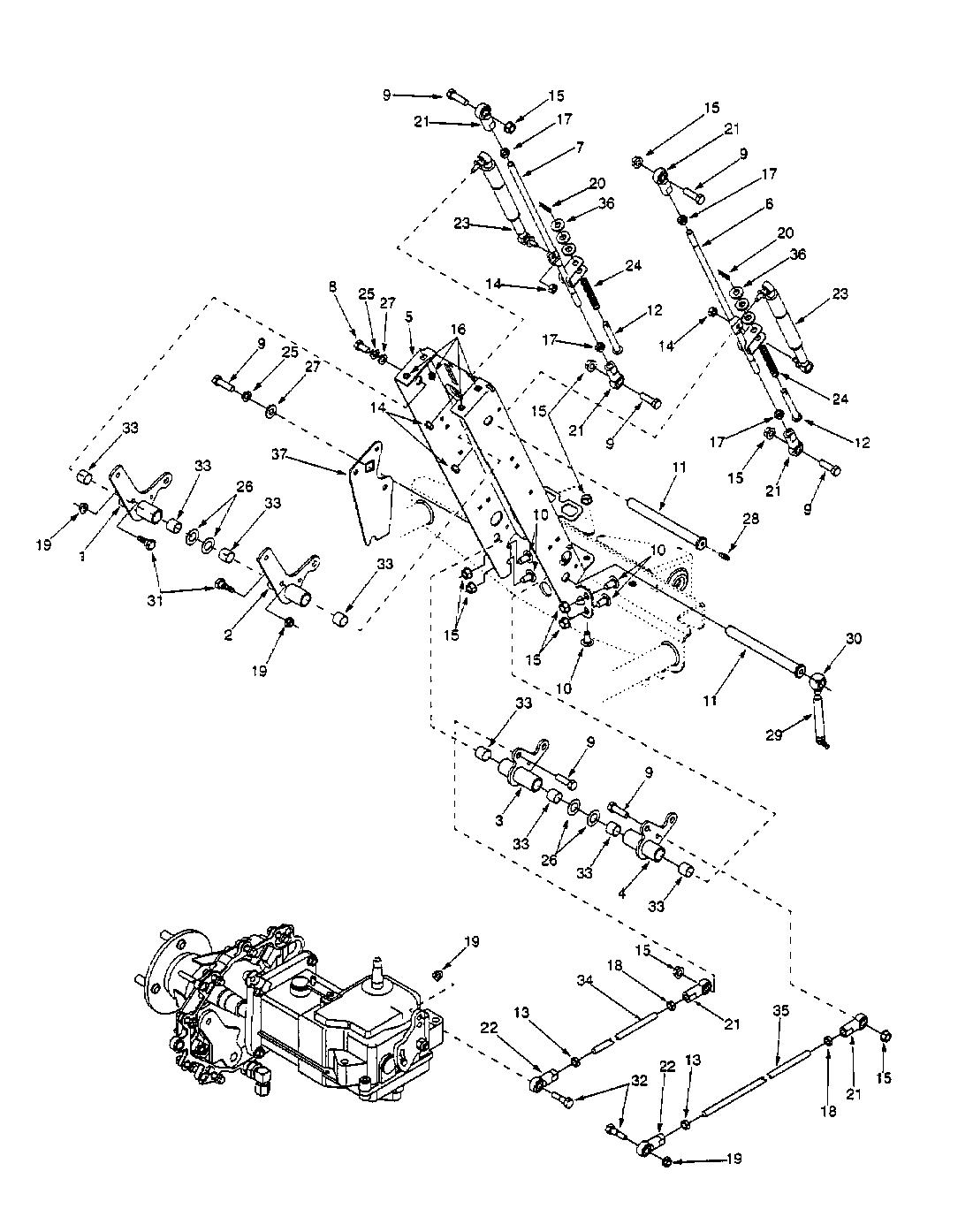

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016686

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0340 BLCRK ASM: LH £81.39 Add
002 603-0341 BLCRK ASM: RH £81.75 Add
003 603-0342 BLCRK ASM: LH £79.17 Add
004 603-0343 BLCRK ASM: RH £83.88 Add
005 603-0647 BEAM ASM:LOGSP:25/27 W/O TRAY £88.46 Add
006 603-0410 ROD ASM: CONTROL RH N/A POA
007 603-0411 ROD ASM:CONT LH N/A POA
008 710-0216 HHCS:3/8-16:.75:GR5:STD £2.95 Add
009 710-3005 BOLT £2.75 Add
010 710-3178 BOLT SHORT NECK CARR £11.02 Add
011 711-1111 SHF:CONT N/A POA
012 711-1124 PIN:.374 DIA. X 2.880 LG N/A POA
013 712-0312 NUT-HEX N/A POA
014 712-0365 NUT:HEXLK:M8 x 1.25:GR.9 £4.48 Add
015 712-0431 NUT £2.71 Add
016 712-0453 NUT:RET:1/4-20:C7956-1420 N/A POA
017 712-0711 NUT £2.59 Add
018 712-3001 NUT:JAM:3/8-24:GR2 £3.27 Add
019 712-3004A HEX FLANGE NUT £2.52 Add
020 714-0104 PIN INTERNAL COTTER £2.36 Add
021 723-0420 ROD END-RH £64.67 Add
022 723-0421 ROD END-LH £41.44 Add
023 717-3113 GEAR-MITER £88.62 Add
023 727-3113 CYL.DAMPFER £204.74 Add
024 732-3084 spring £2.49 Add
025 736-0169 L. WASHER £2.45 Add
026 736-0539 WASH:THRUST:.625 X 1.125 X .06 £15.96 Add
027 736-3004 FLAT WASHER £2.35 Add
028 737-0280 FITTING-GREASE £4.72 Add
029 737-3072 FITTING:HYDRAULIC 65 DEG N/A POA
030 737-3073 ADAP: 1/4-28 THD.X P.T. 90 N/A POA
031 738-3024 SHLD SCR £5.54 Add
032 738-3153 SCREW-SHOULDER .5X.27-3/8-16 N/A POA
033 741-3063 BUSHING £37.17 Add
034 747-3281 ROD, CONTROL LH 32-5/8 LG. £28.51 Add
035 747-3282 ROD-CRUISE CONTROL £31.98 Add
036 736-0300 WASHER £2.39 Add
037 703-3405 SUPPORT PLATE N/A POA
