MTD016684

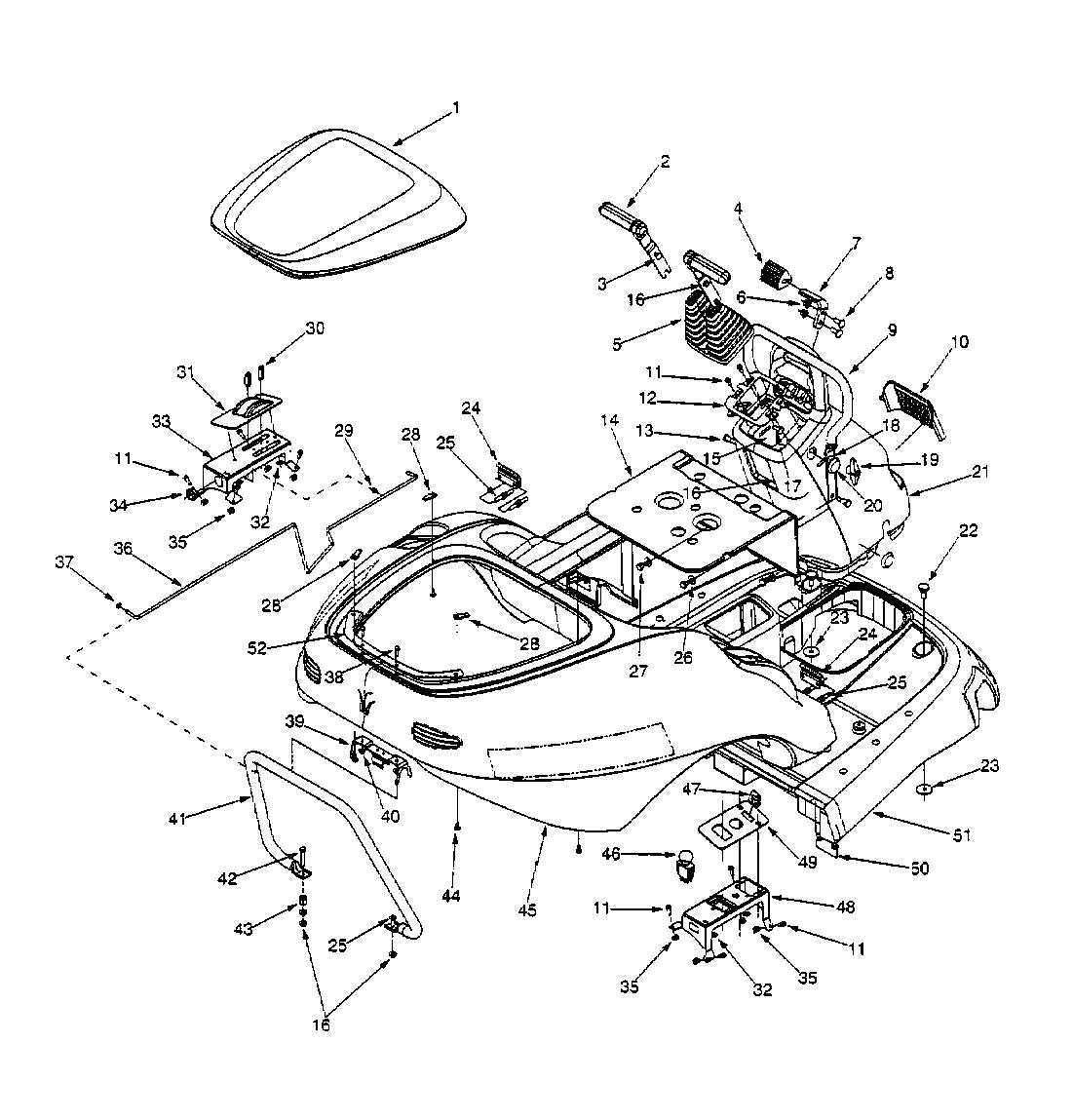

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016684

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-3326 COVER-ENGINE £274.23 Add
002 731-3263 HANDLE-CONTROL £100.57 Add
003 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
004 735-0251 FOOT PAD, BRAKE £10.83 Add
005 731-3185 Boot , dust £66.64 Add
006 712-0431 NUT £2.71 Add
007 703-2807B BRACKET N/A POA
008 710-3168 CARRIAGE BOLT 3/8 INCH X 1 INCH £5.88 Add
009 749-3081 TUBE-CRUISE CONTROL £96.65 Add
010 731-3128A LENS,HEADLIGHT £19.04 Add
011 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
012 703-2648 PLATE N/A POA
013 738-0754 SCR:SHLD:.437 DIA x .54 £11.43 Add
014 731-3325 COVER-SEAT BASE £103.67 Add
015 703-3288 SEAL-INPUT SHAFT £76.32 Add
016 712-3004A HEX FLANGE NUT £2.52 Add
017 710-0276 SCREW:CRG:SPL:5/16-18:1.00 £2.89 Add
018 736-0242 BELL WASHER £3.14 Add
019 720-04072A HAND RELEASE £1.82 Add
020 726-0289 PLUG,PIPE £5.03 Add
021 731-3329 CONSOLE-STEERING £425.26 Add
022 738-3163A SCR:SHLDR:075 X .245:3/8-16 N/A POA
023 736-3039 WASH:FLAT:.406 x 1.5 x .105 £3.12 Add
024 703-2928 HINGE, BODY £30.83 Add
025 710-0376 SCREW HEX CAP 5/16 £7.56 Add
026 736-0226 WASHER:FLAT:.474 x.879 x.064 £2.91 Add
027 738-3024 SHLD SCR £5.54 Add
028 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £5.40 Add
029 732-0830 CLIP,SPRING £21.99 Add
030 720-0302 KNOB N/A POA
031 731-3195A COVER LH £22.84 Add
032 726-3047 PUSH NUT £3.33 Add
033 603-0424 CHANNEL,LH CASTOR N/A POA
034 723-3042 bush £2.71 Add
035 712-0453 NUT:RET:1/4-20:C7956-1420 N/A POA
036 747-3303 ROD,PROP SUPPORT £45.48 Add
037 726-0106 CAP SPEED NUT £2.82 Add
038 710-3015 SCREW HEX CAP £2.82 Add
039 603-0643 CLIP ASSY.-SPRING £80.45 Add
040 712-3027 LOCK NUT £2.38 Add
041 749-3082 TUBE-ENGINE COMPARTMENT £107.41 Add
042 710-3180 SCREW HEX CAP £2.82 Add
043 750-3200 SPACER,IDLER ARM PULLEY N/A POA
044 710-0946 SCR:MACH:1/4-20:0.625:TRUSPHI £2.51 Add
045 731-3327 BODY-REAR £998.52 Add
046 725-1716 SWITCH £35.48 Add
047 725-0201 IGNITION KEY £5.44 Add
048 603-0425 CHANNEL,RH CASTOR N/A POA
049 731-3196 COVER RH N/A POA
050 603-0578 PLATE ASSY.,BODY MOUNTING £16.07 Add
051 731-3328 FLOOR-FRONT BODY £562.29 Add
052 703-3078A PLATE £89.15 Add
