MTD016288

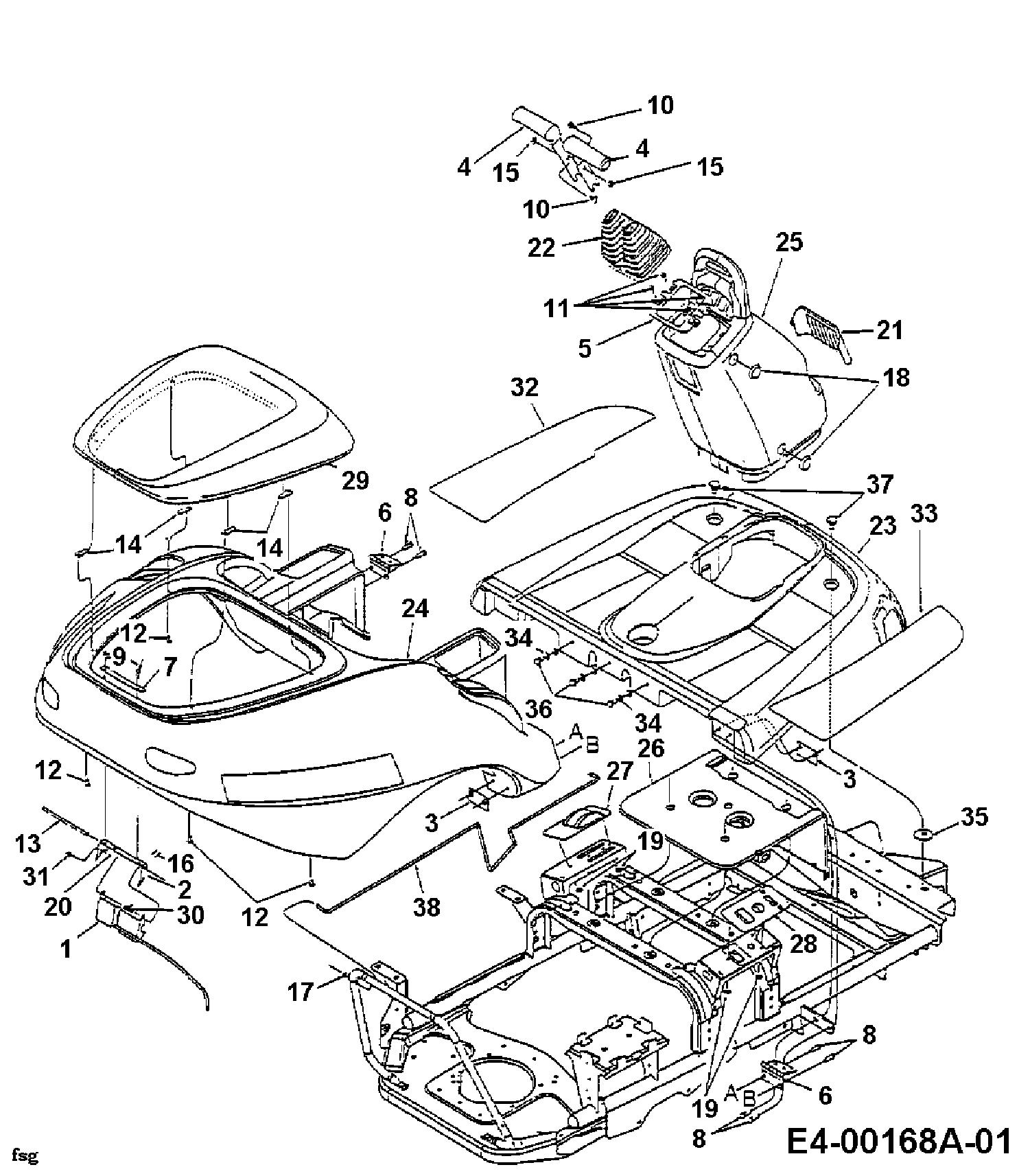

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016288

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0347 GRIP-BLACK £51.06 Add
002 603-0467 BRACKET N/A POA
003 603-0578 PLATE ASSY.,BODY MOUNTING £17.63 Add
004 631-3005 HANDLE £96.83 Add
005 703-2648 PLATE N/A POA
006 703-2928 HINGE, BODY £33.98 Add
007 703-3078A PLATE £98.73 Add
008 710-0376 SCREW HEX CAP 5/16 £9.02 Add
009 710-0425 SCR:MACH:#10-24:0.625:TRUSPHI £8.11 Add
010 710-0451 BOLT:CRG:5/16-18:.750 GR1 £3.70 Add
011 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add
012 710-0946 SCR:MACH:1/4-20:0.625:TRUSPHI £2.56 Add
013 711-1092 ROD,LATCH MOUNTING N/A POA
014 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £4.62 Add
015 712-3004A HEX FLANGE NUT £2.97 Add
016 714-0127 PIN:COT:1/16 X .75 £2.79 Add
017 726-0106 CAP SPEED NUT £3.33 Add
018 726-0289 PLUG,PIPE £5.36 Add
019 726-3047 PUSH NUT £3.48 Add
020 728-0117 RIV:POP:.125 OD:#42 £2.50 Add
021 731-3128A LENS,HEADLIGHT £20.92 Add
022 731-3185 Boot , dust £73.73 Add
023 731-3186 BODY:FRT:FLOOR £448.95 Add
024 731-3187 BODY:RR:ENG COMPARTMENT £836.79 Add
025 731-3188 CONSOLE-STEERING N/A POA
026 731-3192 SEAT PLATE N/A POA
027 731-3195A COVER LH £25.15 Add
028 731-3196 COVER RH N/A POA
029 731-3189 ENGINE-GUARD N/A POA
030 732-0848 TORS. SPRING:.29 ID X 1.14 LG £7.58 Add
031 732-0830 CLIP,SPRING £24.18 Add
032 735-0259 PAD,FLOOR LH £76.10 Add
033 735-0260 PAD,FLOOR RH £76.10 Add
034 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
035 736-3039 WASH:FLAT:.406 x 1.5 x .105 £2.00 Add
036 738-3024 NO LONGER AVAILABLE N/A POA
037 738-3163A SCR:SHLDR:075 X .245:3/8-16 N/A POA
038 747-3303 ROD,PROP SUPPORT £50.26 Add
