MTD016295

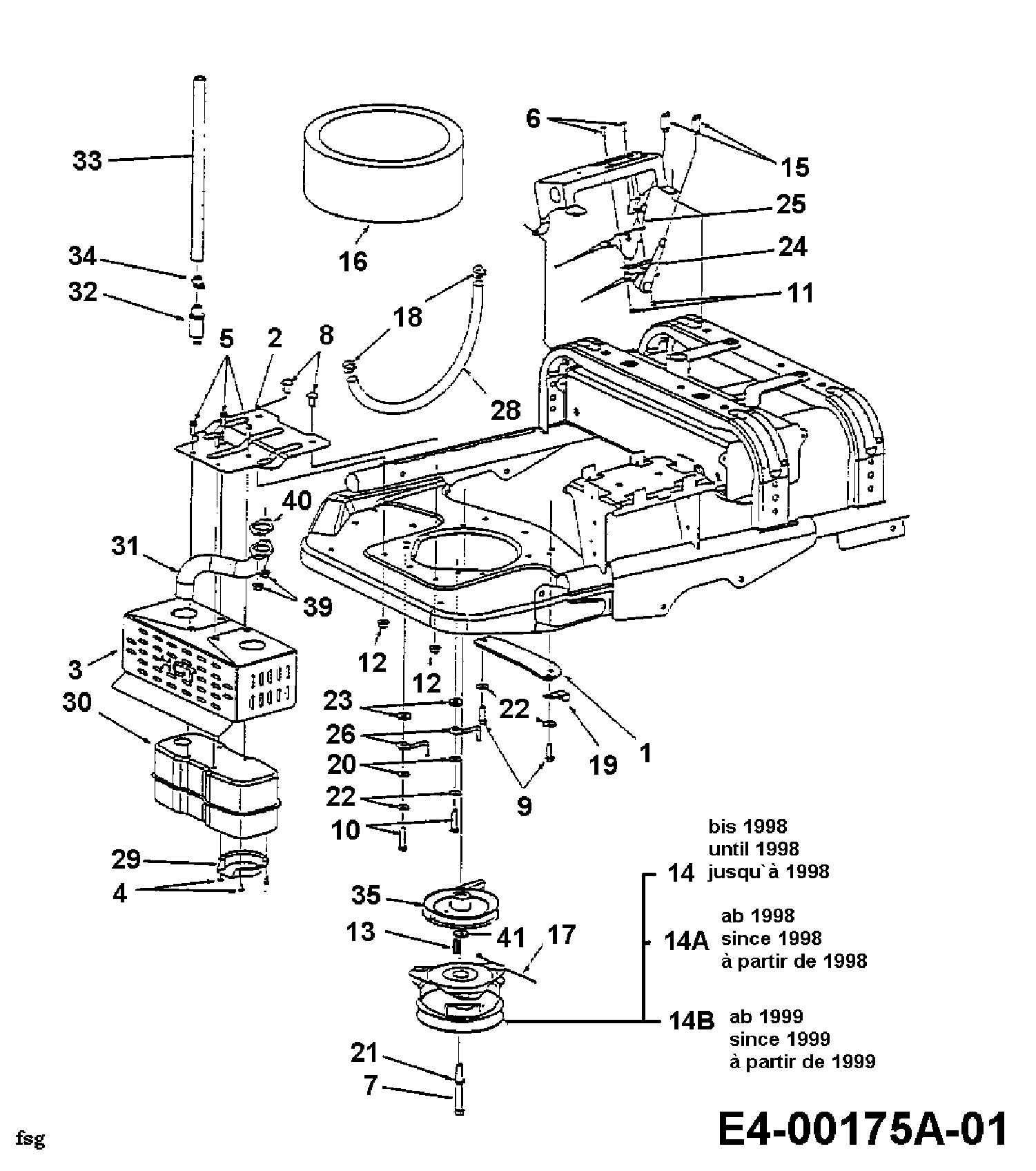

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0650	RETAINER - CLUTCH	N/A	POA
002	703-2859	BRACKET,MUFFLER SUPPORT	N/A	POA
003	703-3004	EXHAUST PROTECTION	£218.78	Add
004	710-0148	SCR:F:#8-32:0.375 HXINDWSH	£3.58	Add
005	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
006	710-3009	NO LONGER AVAILABLE	N/A	POA
007	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
008	710-3178	BOLT SHORT NECK CARR	£11.46	Add
009	710-3206A	HHCS:M8-1.25:25.0:GR8.8:STD	£14.44	Add
010	710-3207	SCREW HHCS:M8-1.25:35:GR8.8STD	£5.00	Add
011	712-0161	NYLOK NUT #10-24	£6.05	Add
012	712-0431	NUT	£3.20	Add
013	714-0128	KEY-SQ:1/4:1.00	£7.41	Add
014	717-3460	CLUTCH	£534.09	Add
015	720-0302	KNOB	N/A	POA
016	723-0457	SEAL	£78.27	Add
017	725-0157	NO LONGER AVAILABLE	N/A	POA
018	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
019	726-3008	BRACKET	£2.93	Add
020	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
021	736-0171	WASHER	£2.93	Add
022	736-0242	BELL WASHER	£3.72	Add
023	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
024	746-3073	CABLE, CHOKE CONTROL	£50.37	Add
025	746-3074	CABLE,THROTTLE CONTROL	£50.37	Add
026	747-3362	ROD-BELT RETAINER REAR	N/A	POA
028	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
029	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
030	751-0617C	MFLR SINGLE INLET	£115.83	Add
031	751-0621	EXHAUST MANIFOLD KOHLER	£67.00	Add
032	751-10517A	OIL DRAIN	£38.87	Add
033	751-3141-MET	HOSE-OIL DRAIN MTR	£13.04	Add
034	751-3142	CAP:DRAIN:OIL	£17.58	Add
035	756-3060	PULLEY	£67.76	Add
039	KH-M-0841080	NUT HEX FLANGE	£3.31	Add
040	KH-12-041-03	NO LONGER AVAILABLE	N/A	POA
041	736-0250	WASH:FLAT:1.00x1.75x.107	£10.32	Add
14A	717-3467	NO LONGER AVAILABLE	N/A	POA
14B	717-3446	CLUTCH ASSY,PTO	£408.94	Add
