PEDALS

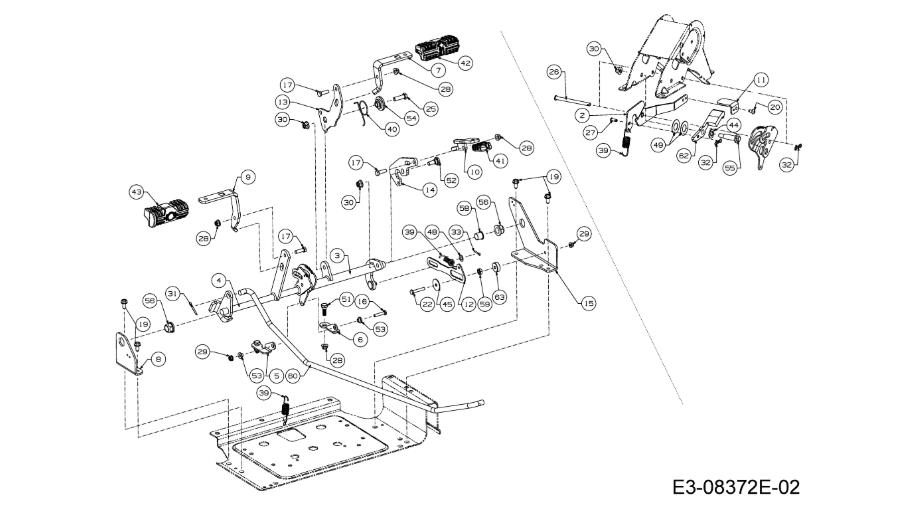

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	647-04270C	SHAFT ASM FWD PEDAL	£91.96	Add
004	647-05042A	SHAFT ASM BRAKE	£80.54	Add
012	703-09837A	LINK NEUTRAL RETURN	£32.21	Add
013	703-10338A	BRACKET PIVOT FORWARD PEDAL	£56.62	Add
014	703-10350	PLATE REVERSE PEDAL PIVOT	£30.00	Add
016	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
017	710-0376	SCREW HEX CAP 5/16	£9.02	Add
018	710-0433	HEX BOLT	£6.66	Add
019	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
021	710-0538	HEX L BOLT	£4.15	Add
022	710-0606	SCREW (RED)	£3.33	Add
023	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
024	710-1331	SCR:AB:#10-16:1.250:CSKPHI	£8.09	Add
025	710-3005	BOLT	£3.24	Add
026	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
028	712-04063	FLANGED NUT	£4.20	Add
029	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
030	712-04065	NUT	£4.02	Add
031	714-0162	COTTER PIN	£2.79	Add
032	714-04040	PIN-COTTER	£4.38	Add
033	714-0474	PIN (RED)	£3.20	Add
034	716-0231	E RING (RED)	£2.97	Add
035	717-04954	SHAFT ASM STEERING	£192.54	Add
036	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
037	731-07358B	COVER COLUMN	£33.50	Add
038	731-11491A	COVER COLUMN	£33.28	Add
039	732-04748	SPRING EXTENSION	£21.34	Add
040	732-04949	SPRING TORSION LH	£14.62	Add
041	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
042	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
043	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
044	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
045	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
046	736-0242	BELL WASHER	£3.72	Add
047	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
048	736-0314	WASHER-THRUST	£2.97	Add
049	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
050	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
051	738-0296	SCR SHLDR	£6.59	Add
052	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
053	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
054	738-04552B	SPACER	£11.82	Add
055	738-0929	HEX CAP SCREW,1/2-13X1.75	£9.71	Add
056	741-0225	HEX FLANGE BEARING	£4.92	Add
057	741-04543	FLANGE BEARING	£13.43	Add
058	741-0495	FLANGED BRG.	£8.22	Add
059	741-05209	BALL BEARING	£19.10	Add
060	747-05654A	ROD BRAKE	£57.87	Add
061	748-0209	BEARING FLANGE	£13.84	Add
062	748-04203	LATCH:CRUS	£17.46	Add
063	750-06497	SPACER	£16.18	Add
