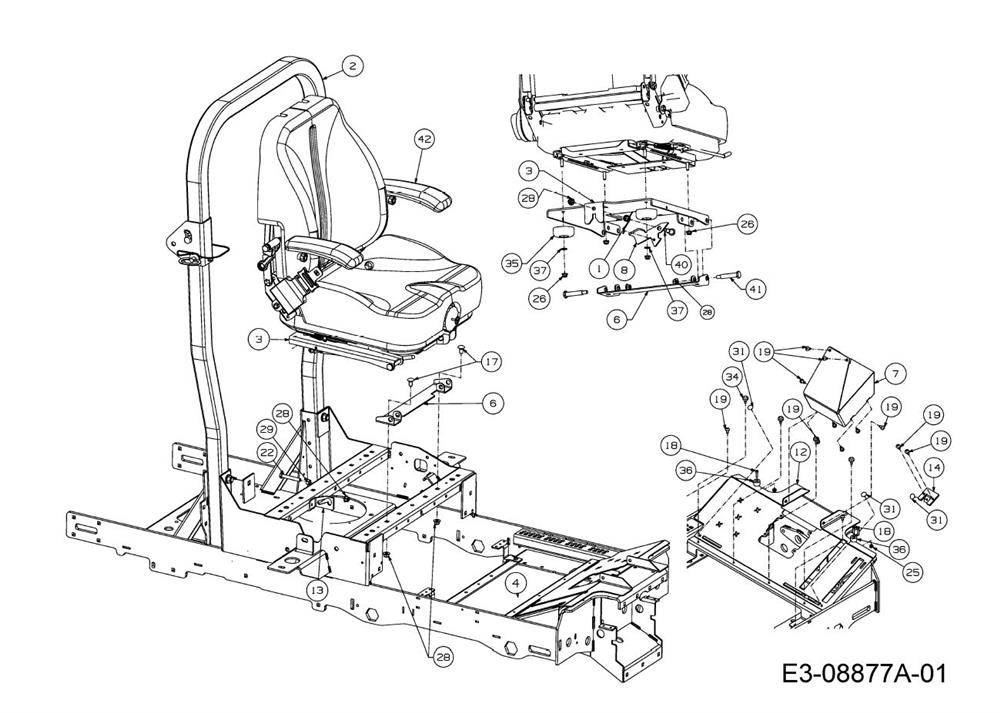

Seat, Roll bar

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	01008140P	SPRING-HANDLE LH	£26.34	Add
002	680-00175	ROPS ASM	£529.66	Add
003	703-07814	PLATE	N/A	POA
004	703-08016	FOOT PLATE	N/A	POA
005	703-08198	ARM	N/A	POA
006	703-08241	BRACKET	N/A	POA
007	703-08323	0	N/A	POA
008	703-08480	0	N/A	POA
009	703-08511	BRACKET	N/A	POA
010	703-08513	PLATE	N/A	POA
011	703-08519	PLATE	N/A	POA
012	703-08596	0	N/A	POA
013	703-08758A	0	N/A	POA
014	703-08857	0	N/A	POA
015	703-09723A	0	N/A	POA
016	703-09942	0	N/A	POA
017	710-0389	BOLT:CRG:3/8-16:.750:GR5	£11.63	Add
018	710-04868	SCREW 10*24-20	£13.79	Add
019	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
020	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
021	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
022	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD	£5.96	Add
023	710-3015	SCREW HEX CAP	£3.33	Add
024	711-05607A	ROD FRONT LINK MTG	£13.60	Add
025	712-0161	NYLOK NUT #10-24	£6.05	Add
026	712-04063	FLANGED NUT	£4.20	Add
027	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
028	712-04065	NUT	£4.02	Add
029	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
030	714-04040	PIN-COTTER	£4.38	Add
031	726-04072A	CLIP RATCHET	£10.97	Add
032	727-04385	PAD ADHESIVE TOOL BOX	£15.39	Add
033	728-04016	RIVET TUBULAR	£4.65	Add
034	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
035	735-04286	BUMPER RUBBER	£29.25	Add
036	735-04287	BUMPER RUBBER	£14.75	Add
037	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
038	736-3024	WASH:FL:.469 X .750 X .06	£2.90	Add
039	738-0296	SCR SHLDR	£6.59	Add
040	738-0966A	SCHR:SHLDR:.50X.925:3/8-16	£5.24	Add
041	738-1011A	SHOULDER BOLT	£6.58	Add
042	757-05011A	SEAT	£1,391.70	Add
