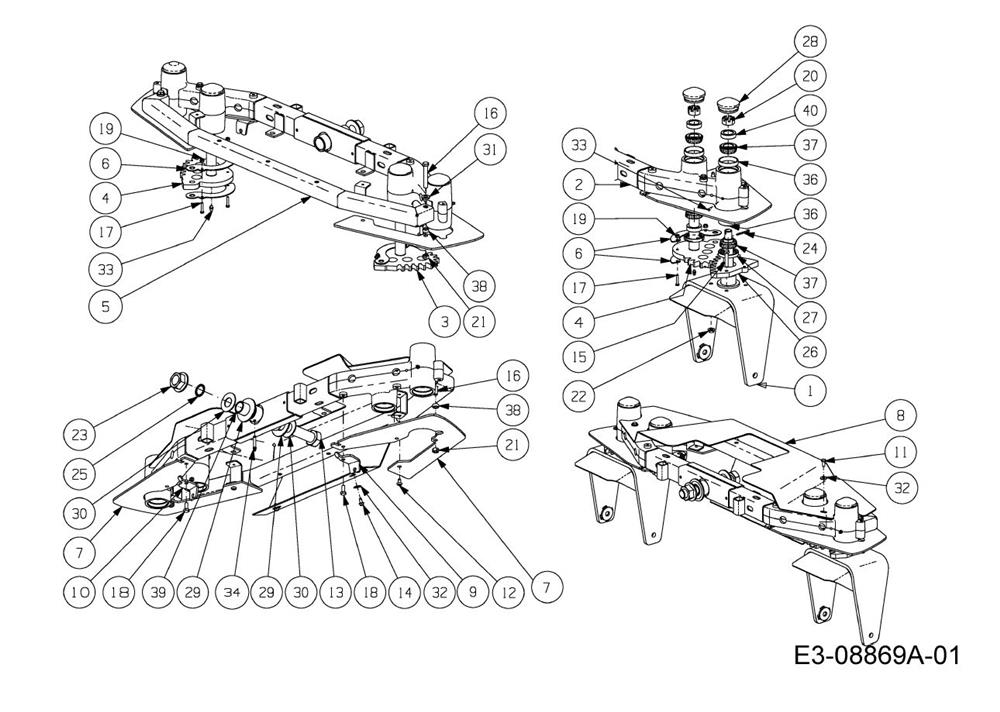

Front Axle

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	680-00153	PLATE	N/A	POA
002	680-00153	PLATE	N/A	POA
003	680-00154	STEERING GEAR L/H	£163.87	Add
004	680-00155	STEERING GEAR R/H	£172.56	Add
005	680-00165	PLATE	N/A	POA
006	703-07931A	BRACKET	£19.68	Add
007	703-08383	PLATE	N/A	POA
008	703-08396	COVER	N/A	POA
009	703-08800	0	N/A	POA
010	703-08801	0	N/A	POA
011	710-0433	HEX BOLT	£6.66	Add
012	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
013	710-05189	HEX HEAD SCREW 1-14*7.0	£33.24	Add
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
015	710-0805A	SCRE.HHCS 5/16-18:1.50	£13.70	Add
016	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD	£5.96	Add
017	710-1194	SCREW 10/24 x 1.00 DX60 CATCHER	£4.95	Add
018	710-1880	HHCS:5/16-18:.75:GR5:PATCH	£4.39	Add
019	712-0161	NYLOK NUT #10-24	£6.05	Add
020	712-0359	NUT-HEX SLOTTED	£13.79	Add
021	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
022	712-3004A	HEX FLANGE NUT	£2.97	Add
023	712-04310	HEX NUT	£15.50	Add
024	714-0162	COTTER PIN	£2.79	Add
025	716-04191	RETAINER	£20.99	Add
026	717-04822	GEAR STEERING YOKE	£76.08	Add
027	721-04462	SEAL OIL	£21.09	Add
028	731-07348	CAP - GREASE AXLE	£68.76	Add
029	736-04604	WASHER	£15.60	Add
030	736-04605	WASHER	£15.32	Add
031	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
032	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
033	737-04345	GREASE NIPPLE	£9.82	Add
034	737-04352	GREASE NIPPLE	£16.20	Add
036	741-04548	BEARING CUP	£20.43	Add
037	741-04549	TAPER LK BUSHING	£23.24	Add
038	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
039	750-05438	SLEEVE	£33.24	Add
040	750-05600	SPACER	£18.98	Add
