Deck housing, Wheels mowing deck

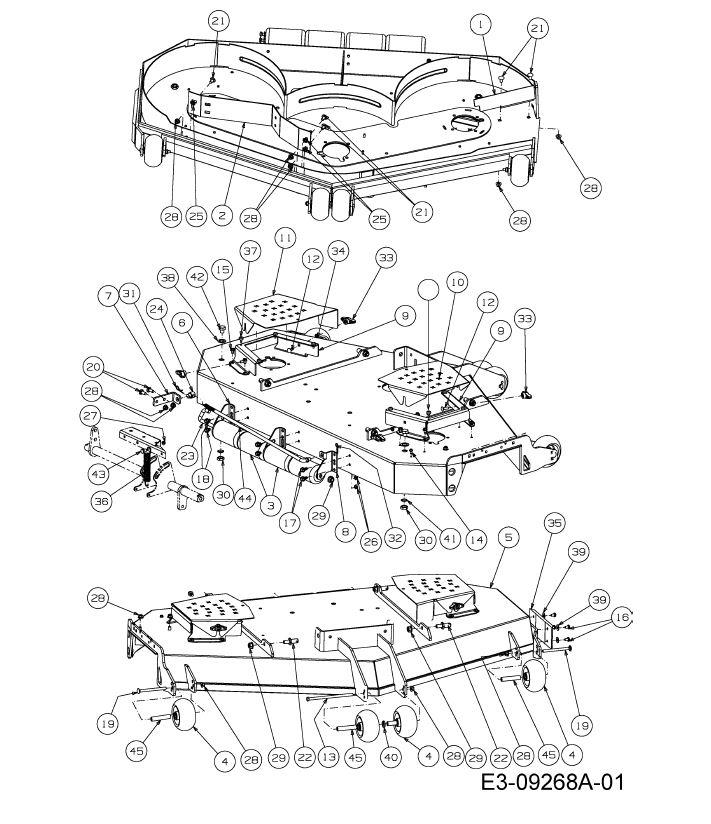

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005195	CHUTE BAFFLE	£53.09	Add
002	02005694	ADJUSTABLE BAFFLE	£85.66	Add
003	631-05115	ROLLER ASM	£33.76	Add
004	634-3159	WHEEL ASSY´S 5"	£33.61	Add
005	680-00329	DECK	N/A	POA
006	703-09137	BOLT	N/A	POA
007	703-09380	BRACKET	N/A	POA
008	703-09579	BRACKET	N/A	POA
009	703-09921	BRACKET	N/A	POA
010	703-09922	COVER	N/A	POA
011	703-09924	COVER	N/A	POA
012	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
013	710-04692	SCREW 3/8-16X7.25	£22.73	Add
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
015	710-0607	SELF TAP SCREW	£4.71	Add
016	710-06156	SCREW	£6.63	Add
017	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
018	710-0773	SCR:TT:3/8-16:.500:HXINDWSH	£7.50	Add
019	710-1649	BOLT-CARRIAGE 3/8-16X4.25 GR5	£17.87	Add
020	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
021	710-3178	BOLT SHORT NECK CARR	£11.46	Add
022	711-05604	PIN	£14.09	Add
023	711-05664	PIN	£35.22	Add
024	711-0770	FERRULE	£24.33	Add
025	712-0229	NUT PUSH	£5.20	Add
026	712-0266A	NUT:JAMLK:3/8-16:GR5	£4.39	Add
027	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
028	712-04065	NUT	£4.02	Add
029	712-04150	NUT FLGLK 1/2-13 NYLON	£6.74	Add
030	712-0641	NUT	£6.47	Add
031	714-0145	R CLIP	£2.78	Add
032	714-04023	COTTER PIN	£7.22	Add
033	720-04122	WING KNOB	£11.09	Add
034	726-0201	SPEED NUT	£3.10	Add
035	731-10336	PLATE SKID GUARD	£86.54	Add
036	732-04929	SPRING BRAKE TENSION	£41.02	Add
037	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
038	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
039	736-0371	WASH:THRST:.343 X .880 X .062	£3.20	Add
040	736-04296	WASH:FL: 6321.00.16	£9.89	Add
041	736-0760	WASHER	£4.01	Add
042	738-04146	PLUG:BOLT:M16 X 1.5	£8.94	Add
043	738-04222	SHOLUDER SCREW .437*.50 1/4-20	£10.32	Add
044	747-06273	SUPPORT ROD	£44.66	Add
045	750-3193	BUSH	£17.14	Add
