MTD012476

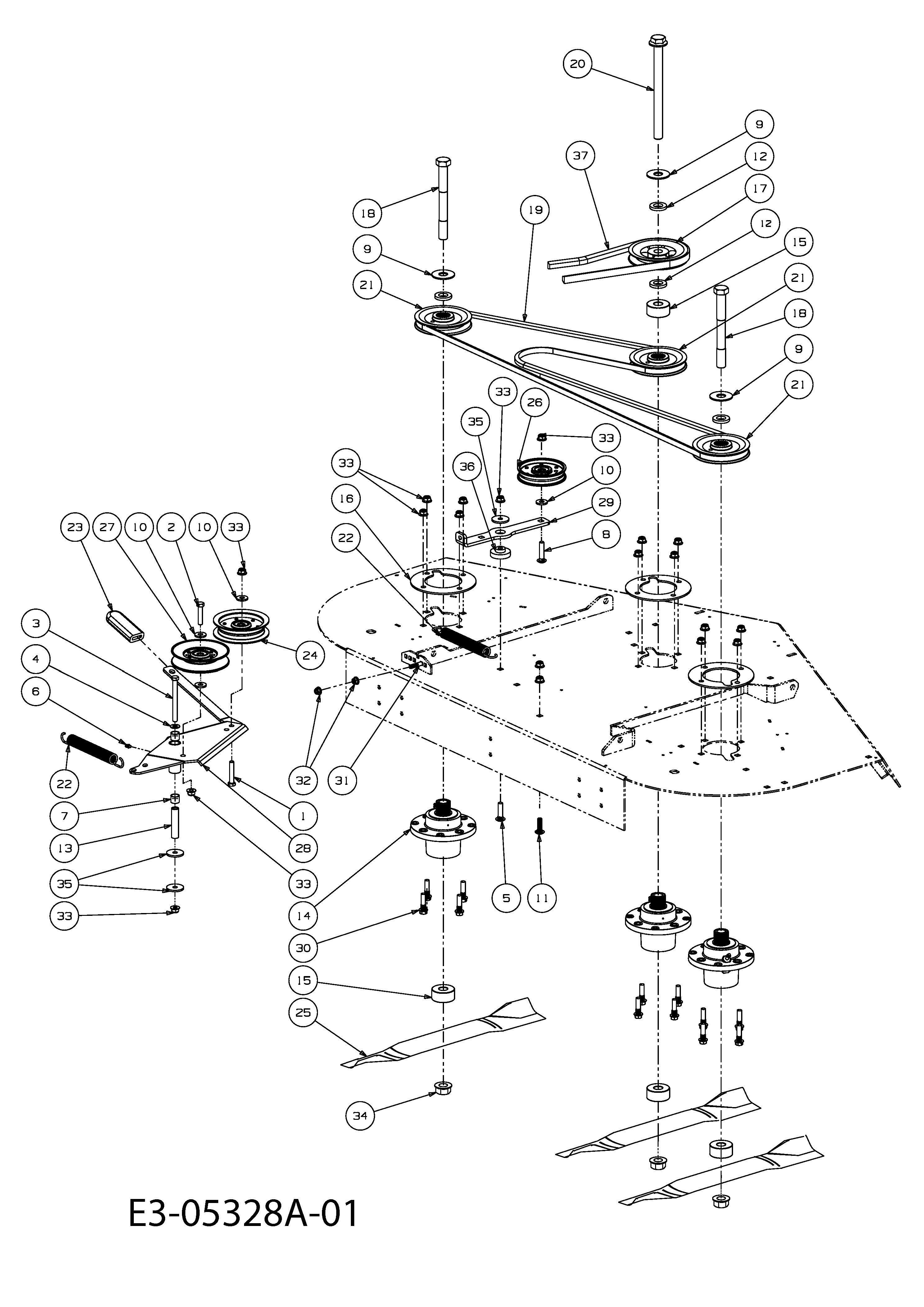

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012476

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 00002528 SCREW-HEX CAP 3/8-16X2.00 £20.26 Add
002 00008495 HEX SCREW 3/8-16X1.75 N/A POA
003 00011925 HEX SCREW 3/8-16X4.00 N/A POA
004 00012158 WASHER .406X.813X.063 N/A POA
005 00030276 BOLT-CARRIAGE 3/8X1.5 RZ CTP £14.18 Add
006 00060078 grease nipple N/A POA
007 01000308 SLEEVE BEARING N/A POA
008 01000364 N/A POA
009 736-3014 WASHER £10.21 Add
010 01000723 WASH:FLAT:.406 X 1.00 X .105 £3.15 Add
011 01002010 N/A POA
012 01003123 SPACER .812X1.47X.218 N/A POA
013 01003245 SPACER £73.41 Add
014 01003532A SPINDEL ASSY. DECK £262.61 Add
015 01004415 SPACER-BLACE SPINDLE £26.97 Add
016 01004478 SUPPORT PLATE N/A POA
017 01005201 PULLEY-DECK DRIVE £88.77 Add
018 01005213 BOLT BLADE £25.59 Add
019 01005376 BELT-V A SEC X 122.3 PREMIUM £94.51 Add
020 01005388 BOLT-BLADE 3/4-16 X 9.0 £33.81 Add
021 01005618 N/A POA
022 02003712 EXTENSION SPRING £19.22 Add
023 02003740 FLAT GRIP N/A POA
024 02004447 IDLER PULLEY £34.39 Add
025 02005019 BLADE-HI LIFT 21.0" 60" TNK CT £82.81 Add
026 02005077 IDLER PULLEY £32.56 Add
027 02005079 IDLER PULLEY £42.48 Add
028 02005507 N/A POA
029 703-07010 DECK IDLER ARM N/A POA
030 710-04829 HEX FLANGE BOLT £11.31 Add
031 710-0262 BOLT:CRG:5/16-18:1.50:GR2 £3.81 Add
032 712-04063 FLANGED NUT £4.00 Add
033 712-04065 NUT £3.83 Add
034 712-3078 NUT HEX FLANGE 3/4-16 £10.78 Add
035 736-0227 WASH:FLAT:.390x1.500x.134 £9.79 Add
036 738-04376 SHOULDER SPACER .854X.280 N/A POA
037 754-04256 BELT-PTO B SEC 111.2 B/M £175.54 Add
