MTD012474

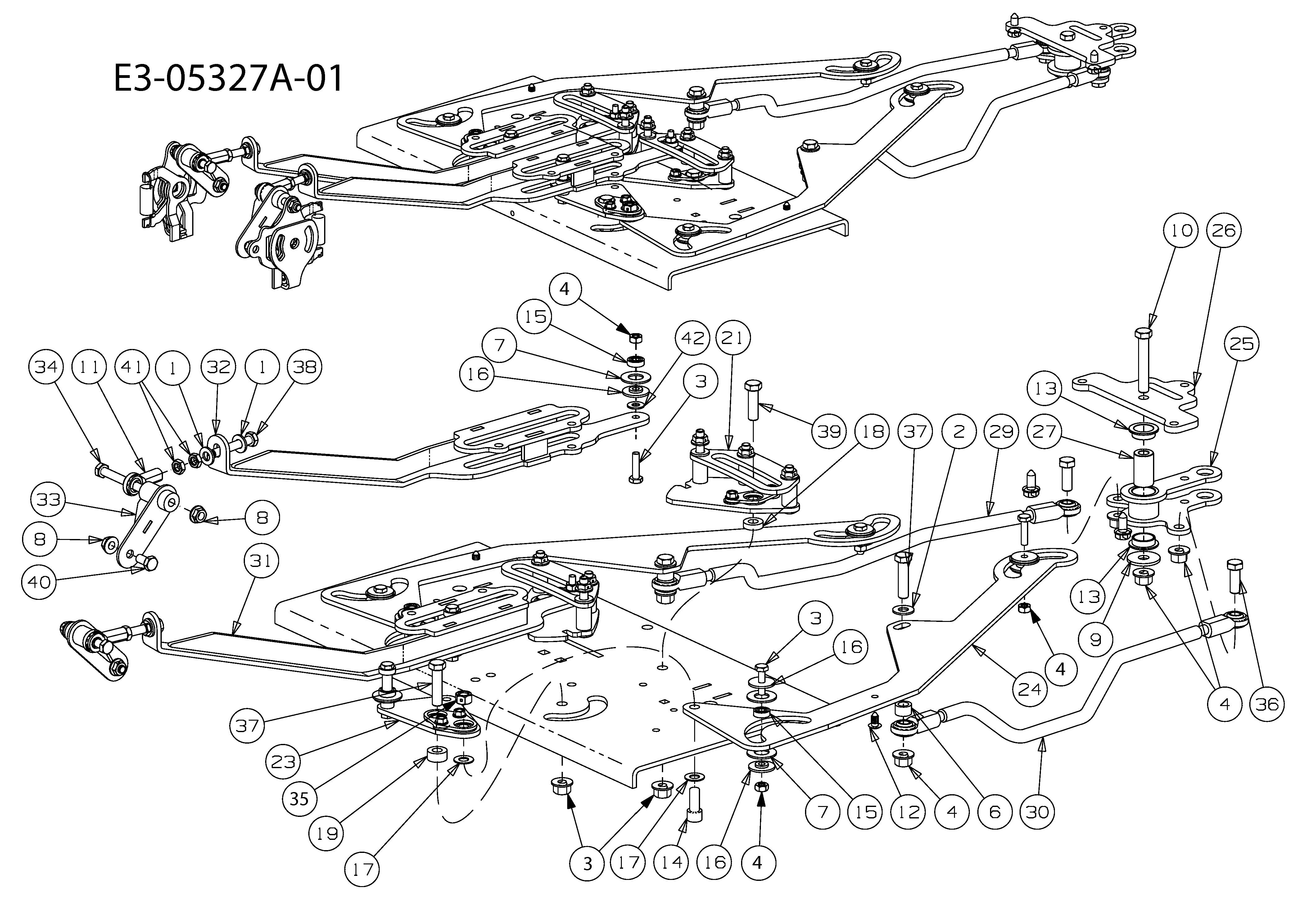

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00009812	WASHER .344X.688X.063	N/A	POA
002	00012158	WASHER .406X.813X.063	N/A	POA
003	00013416	HEX SCREW 1/4-20X1.00	N/A	POA
004	00022560	NO LONGER AVAILABLE	N/A	POA
005	00023041	COUNTER LOCK NUT 1/4-20	N/A	POA
006	00081551	SPACER .407X.625X.375	N/A	POA
007	01000101	WASHER .550X1.25X.068	N/A	POA
008	712-3004A	HEX FLANGE NUT	£2.97	Add
009	01000872	WASHER:FLAT:.411 X 1.25 X .100	£3.90	Add
010	01001366	HEX SCREW	£25.15	Add
011	01008410P	END-5/16 ROD RH	£49.47	Add
012	01008801	RIVET 1/4X.625	N/A	POA
013	02003163	FLANGE BEARING	N/A	POA
014	02003309	SOCKET HEAD SCREW	N/A	POA
015	02003377	BALL BEARING	£27.44	Add
016	02003379	SHOULDER SPACER .251X1.00X.06	N/A	POA
017	02005054	SPACER .381X.750X.040	N/A	POA
018	02005055	SPACER .381X.75X.150	N/A	POA
019	02005056	SPACER .381X.750X.312	N/A	POA
020	02005290	LH SPEED CONTROL CAM ASM.	N/A	POA
021	02005291	RH SPEED CONTROL CAM ASM.	N/A	POA
022	02005292	LH STEERING PIVOT ASM.	N/A	POA
023	02005293	RH STEERING PIVOT ASM.	N/A	POA
024	02005463	CONTROL LINK PLATE	N/A	POA
025	02005468	FRONT STEERING PIVOT ASSY.	£136.52	Add
026	02005482	STEERING PIVOT MOUNT PLATE	£60.20	Add
027	02005483	SPACER	£48.94	Add
028	02005566	NUT HEX CENTER LOCK 3/8-16	N/A	POA
029	603-04618	CONTROL ROD ASSY. LH	£94.74	Add
030	603-04619	CONTROL ROD ASSY. RH	£94.74	Add
031	680-00115	PUMP CONTROL ARM ASM.	N/A	POA
032	680-00116	RH PUMP CONTROL ARM ASM.	N/A	POA
033	680-00118	PUMP CONTROL SPACER ASM.	N/A	POA
034	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
035	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
036	710-0514	HEX BOLT	£3.81	Add
037	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
038	710-0772	HEX BOLT	£11.63	Add
039	710-3005	BOLT	£3.24	Add
040	710-3025	HHCS:5/16-18:.625:GR5:STD	£3.31	Add
041	712-3025	HEX JAM NUT 5/16-24 GR 5	£4.37	Add
042	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
