MTD012473

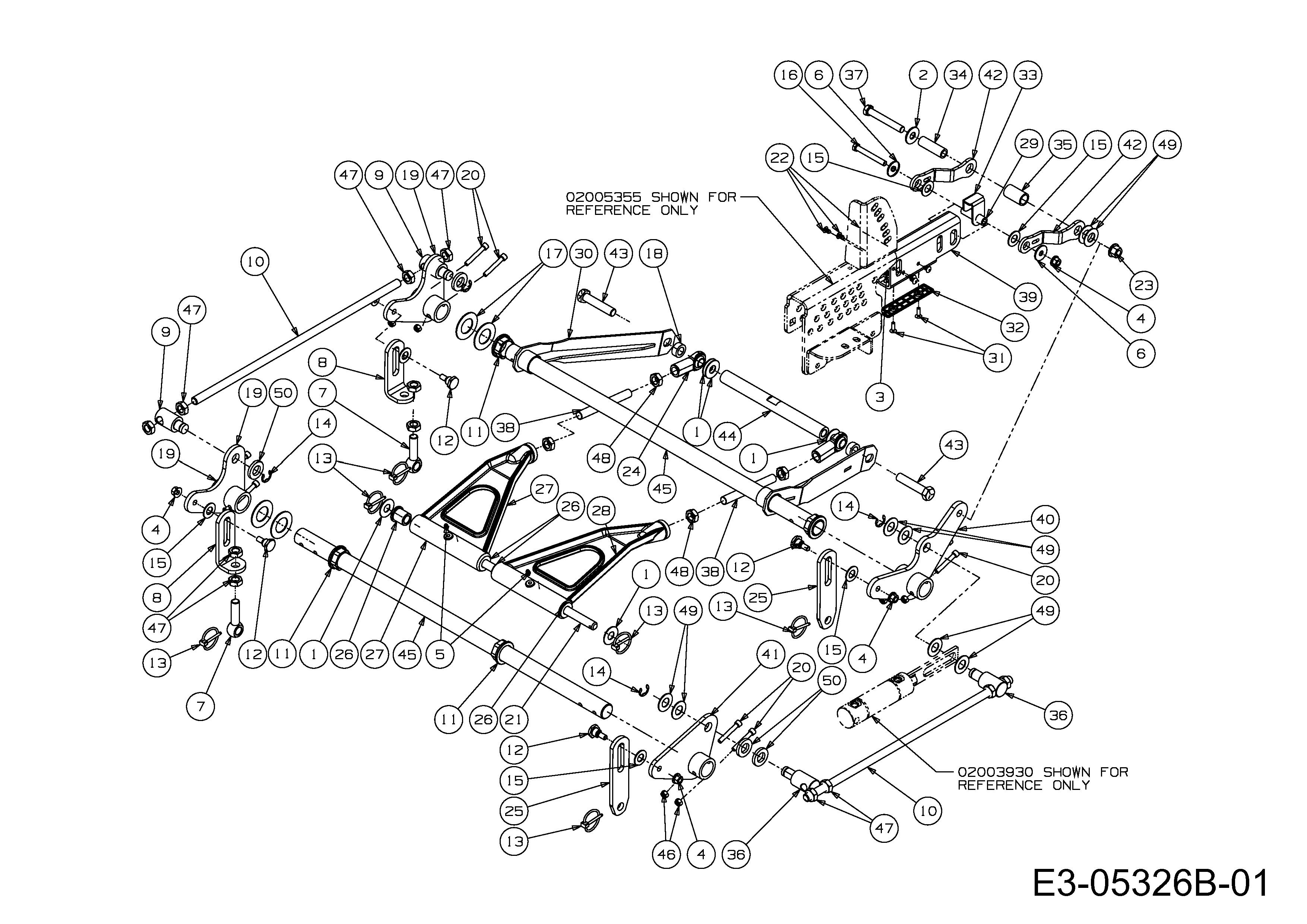

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00002766	WASHER .655X1.5X.055	N/A	POA
002	00011459	WASHER .563X1.38X.109	N/A	POA
003	00012152	NUT 1/4-20	N/A	POA
004	00022560	NO LONGER AVAILABLE	N/A	POA
005	00060078	grease nipple	N/A	POA
006	736-0133	WASH:FLAT:.411 X 1.25 X .100	£3.87	Add
007	01001744	EYE BOLT	£29.47	Add
008	01001746	EYE BOLT LINK	N/A	POA
009	01001855	FERRULE LIFT	£23.84	Add
010	01001857	LIFT CONNECTING ROD	£37.56	Add
011	01001930	HEX FLANGE BEARING	£20.43	Add
012	01003535	SHOULDER BOLT 3/8-16X.625X.437	£20.04	Add
013	01003993	LYNCH PIN 3/16	£11.18	Add
014	01003994	RETAINER CLIP	£13.90	Add
015	01004003	WASHER	£13.16	Add
016	01004127	HEX SCREW 3/8-16X3.00	N/A	POA
017	01006408	WASHER 1.25X2.25X.075	N/A	POA
018	01007527	SPACER .630X1.06X.440	N/A	POA
019	01007680	BELLCRANK ASSY.	£93.21	Add
020	01007962	SCREW 5/16-18X2.0	N/A	POA
021	01008453	DECK LIFT LINK ROD (60" DECK)	£54.00	Add
022	01008801	RIVET 1/4X.625	N/A	POA
023	01010119	FLANGE TOP LOCK NUT 1/2-13	N/A	POA
024	02000293	ROD END RH	£82.83	Add
025	02000561	BRKT:HNGR:MTG STRAP	N/A	POA
026	02002384	FLANGE BEARING	£18.66	Add
027	02002708P	LH LIFT BRACE BEARING	£196.35	Add
028	02002709P	RH LIFT BRACE BEARING	£196.35	Add
029	02003043	SPACER .375X.625X2.20	N/A	POA
030	02003257	FRONT FRAME SUPPORT ASM.	N/A	POA
031	02003505	FLAT HEAD SCREW 1/4-20X.750	N/A	POA
032	02003749	WEAR PLATE	N/A	POA
033	02003942	LOCK BRACKET	N/A	POA
034	02003944	SPACER .510X.750X2.38	N/A	POA
035	02003945	SPACER .765X1.00X1.70	N/A	POA
036	02004280	FERRULE LIFT	£55.19	Add
037	02004518	HEX SCREW 1/2-13X3.5	N/A	POA
038	02004692	ROD 5/8-18X5.5 (60" DECK)	N/A	POA
039	02005103	TUBE, HT ADJUST 1" OD	N/A	POA
040	02005350	ASSIST ASSY. HYDRO	£85.92	Add
041	02005352	BELLCRANK ASSY.	£72.03	Add
042	02005354	LOFT OFFSET YOKE BRACKET	N/A	POA
043	710-04813	HEX SCREW 5/8-11X3.00	N/A	POA
044	711-05072	FRONT LIFT LINK MOUNT SHAFT	£99.02	Add
045	711-05216	DECK LIFT SHAFT	N/A	POA
046	712-0429	NUT HEX.INS L NUT	£4.92	Add
047	712-3015	NUT	£10.65	Add
048	712-3056	NUT:JAM:5/8-18:GR5	£3.80	Add
049	736-0188	FI-WASHER	£6.15	Add
050	750-05553	SPACER .812 ID X .218 LG	£12.50	Add
