MTD012459

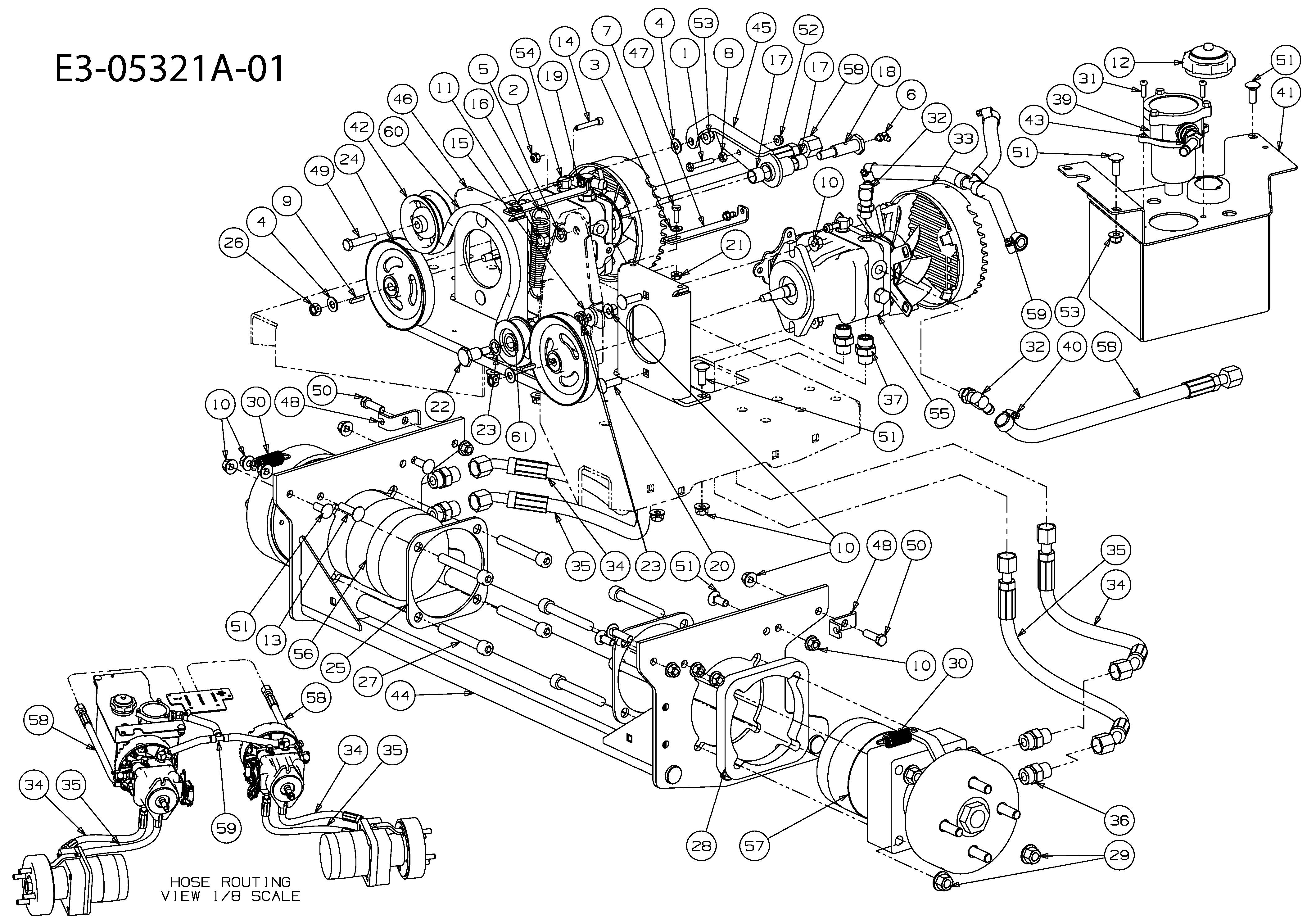

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00011446	HEX SCREW 1/4-20 X 1.50	N/A	POA
002	00012152	NUT 1/4-20	N/A	POA
003	00012154	WASHER .281X.625X.063	N/A	POA
004	00012158	WASHER .406X.813X.063	N/A	POA
005	00012195	WASHER LOCK 7/16	N/A	POA
006	00012226		N/A	POA
007	00013131	HEX SCREW 1/4-20 X .750	N/A	POA
008	00013291	NUT 174-20	N/A	POA
009	00020628	KEY .188X.188X.875	N/A	POA
010	00022560	NO LONGER AVAILABLE	N/A	POA
011	00027279	HEX NUT	£3.10	Add
012	00030261	CAP- HYDRO OIL TANK	£39.63	Add
013	00030276	BOLT-CARRIAGE 3/8X1.5 RZ CTP	£14.89	Add
014	00031672		N/A	POA
015	00083192	WASHER-FLAT	£3.80	Add
016	01000199	SPRING-IDLER TENSION	£15.46	Add
017	01000308	SLEEVE BEARING	N/A	POA
018	738-3108	BOLT-SHOULDER 01000505	£60.78	Add
019	01000628	SCREW:TT:1/4-20:0.500:HXINDWSH	£4.62	Add
020	01002010		N/A	POA
021	712-3027	LOCK NUT	£2.79	Add
022	01003536	BOLT SHOULDER .625x.830	£17.31	Add
023	02001891	WASHER .625X1.00X.048	N/A	POA
024	01006799	HYDRO PUMP PULLEY	N/A	POA
025	01006948		N/A	POA
026	01007309	COUNTER LOCK NUT 3/8-24	N/A	POA
027	01007791	SOCKET CAP SCREW 1/2-13 X 3.50	N/A	POA
028	01009775	HYDRO WHEEL MOTOR SPACER	N/A	POA
029	01010119	FLANGE TOP LOCK NUT 1/2-13	N/A	POA
030	02000401	EXTENSION SPRING .74X2.7X0.75	N/A	POA
031	02000841	SOCKET CAP SCREW 1/4-20X.750	N/A	POA
032	02001160	ELBOW FITTING 9/16X1/2	N/A	POA
033	02001169	PUMP FAN SHROUD	N/A	POA
034	02001178	PUMP MOTOR HOSE ASM. 16.38"	N/A	POA
035	02001179	PUMP MOTOR HOSE ASM. 18.75"	N/A	POA
036	02001715	HYDRO ADAPTER 8 X 10	N/A	POA
037	02001975	HYDRO ADAPTER	N/A	POA
039	02002257	HYDR. FILTER ASSY.	£143.57	Add
040	02002392	HOSE CLAMP	N/A	POA
041	680-00056	HYDRO TANK ASM.	N/A	POA
042	02004558	PULLEY-FLAT IDLER	£52.45	Add
043	02005160	45³ FITTING 3/4 X 1/2	N/A	POA
044	680-00059	WIDE MOTOR FRAME	N/A	POA
045	680-00077	PUMP IDLER	N/A	POA
046	680-00088	PUMP ASM. MOUNT BRACKET	N/A	POA
047	703-07669	PUMP MOUNT BRACE	N/A	POA
048	703-07750	BRAKE CABLE BRACKET	N/A	POA
049	710-0347	HEX SCR	£3.72	Add
050	710-3005	BOLT	£3.24	Add
051	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
052	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
053	712-04065	NUT	£4.02	Add
054	718-04710	HYDRO PUMP LH	£583.50	Add
055	718-04711	HYDRO PUMP RH	£692.87	Add
056	718-04717	MOTOR-HYDRO W/BRAKE LH	£621.82	Add
057	718-04718	MOTOR-HYDRO W/BRAKE RH	£741.14	Add
058	727-04284	HOSE ASSY. - WHEEL PUMP TO	N/A	POA
059	02001872		N/A	POA
060	754-04267	DRIVE BELT	£76.66	Add
061	756-04431	Guide pulley	£150.81	Add
