MTD012451

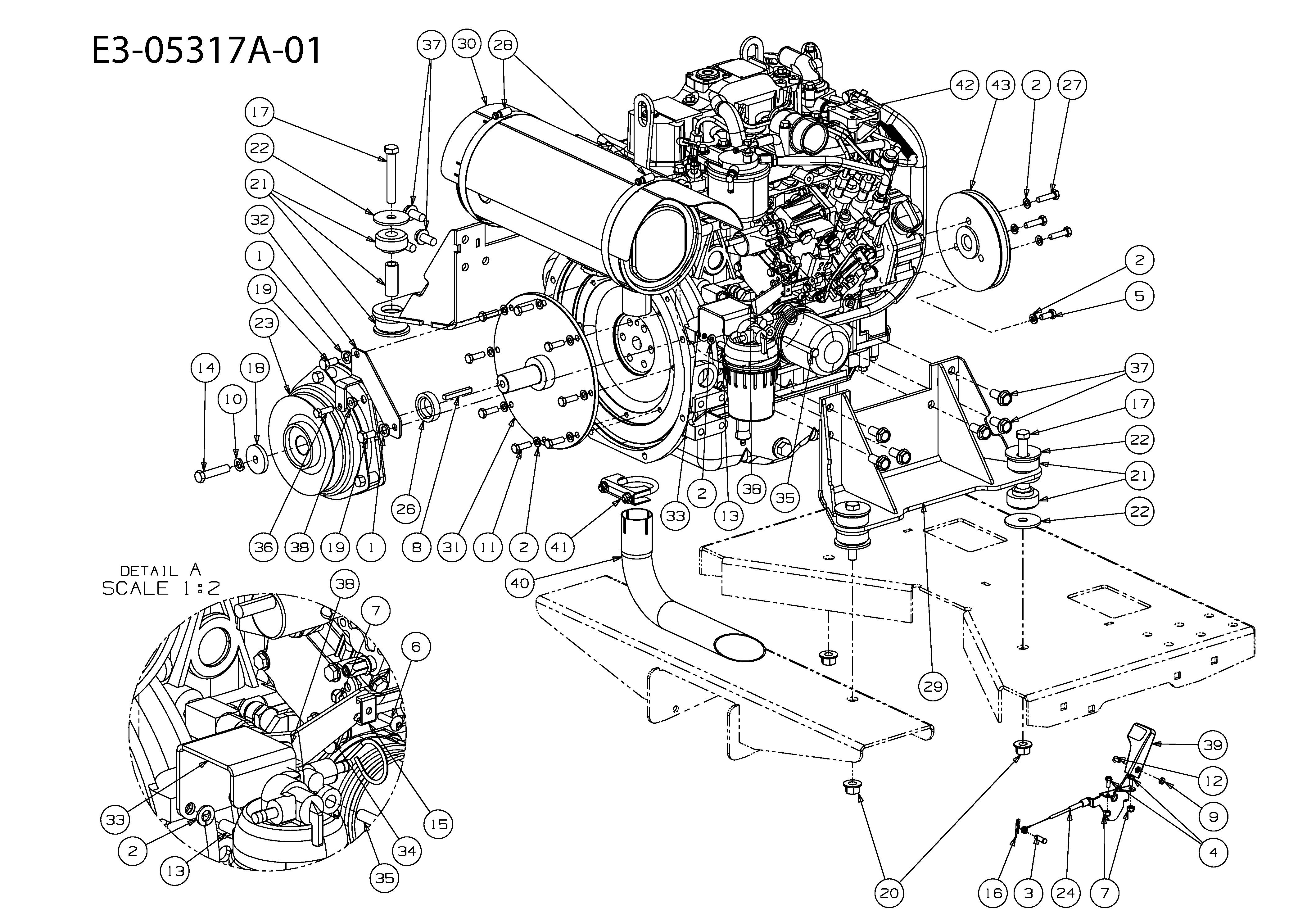

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00012062	WASHER 10x17.8x3.6	N/A	POA
002	00012168	LOCK WASHER	£15.39	Add
003	00012609	PIN CLEVIS	£16.79	Add
004	00013669	HEX FLANGE SCREW #10-32X.500	N/A	POA
005	00014517	HEX SCREW M8-1.25X18	N/A	POA
006	00014602	MACHINE SCREW #10-32X.750	N/A	POA
007	00014608	NUT 10-32	N/A	POA
008	00021517	KEY .250X.250X2.00	N/A	POA
009	00060056	NUT-HEX SS #8-32	£18.87	Add
010	736-0171	WASHER	£2.93	Add
011	01000720	HHCS:M8-1.25:25.0:GR8.8:STD	£14.44	Add
012	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
013	01000981	HEX SCRREW M8-1.25X20	N/A	POA
014	01001082	HEX SCREW 7/16-20X2.00	N/A	POA
015	01002070	CLAMP:CASNG:B&S THROTTLE	£4.29	Add
016	01002771	PIN:COT:.072 DIA x 1.13 LG	£3.10	Add
017	01003113	SCREW 1/2-13X3.25	£12.94	Add
018	01005314	WASHER-FLAT	£30.79	Add
019	01009616	HEX SCREW M10-1.5X20	N/A	POA
020	01010119	FLANGE TOP LOCK NUT 1/2-13	N/A	POA
021	02001035	ISOLATOR ENGINE	£75.69	Add
022	02001098	WASHER	£49.11	Add
023	02001113	BRAKE CLUTCH	£516.17	Add
024	02001133	THROTTLE CONTROL CABLE	£86.57	Add
026	02002158	SPACER 1.14X1.75X.438	N/A	POA
027	02002402	HEX SCREW M8-1.25X30	N/A	POA
028	02002425	CLAMP WORM	£57.87	Add
029	680-00062	ENGINE BRACKET	N/A	POA
030	680-00109	SHIELD - MUFFLER HEAT	£144.95	Add
031	680-00122	COUPLING DISC	N/A	POA
032	703-07329	CLUTCH RETAINER BRACKET	£56.12	Add
033	703-07395	SEPERATOR MOUNT BRACKET	£49.27	Add
034	703-07396	THROTTLE MOUNT BRACKET	N/A	POA
035	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
036	710-0376	SCREW HEX CAP 5/16	£9.02	Add
037	710-05079	HHCS:FLG:M12-1.75x25:GR 8.8	N/A	POA
038	712-04063	FLANGED NUT	£4.20	Add
039	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
040	751-11143	ELBOW EXHAUST PIPE	N/A	POA
041	751-11265	MUFFLER CLAMP	N/A	POA
042	752Y3TNV82BDCB	ENGINE	N/A	POA
043	756-04402	DRIVE PULLEY	N/A	POA
