MTD012445

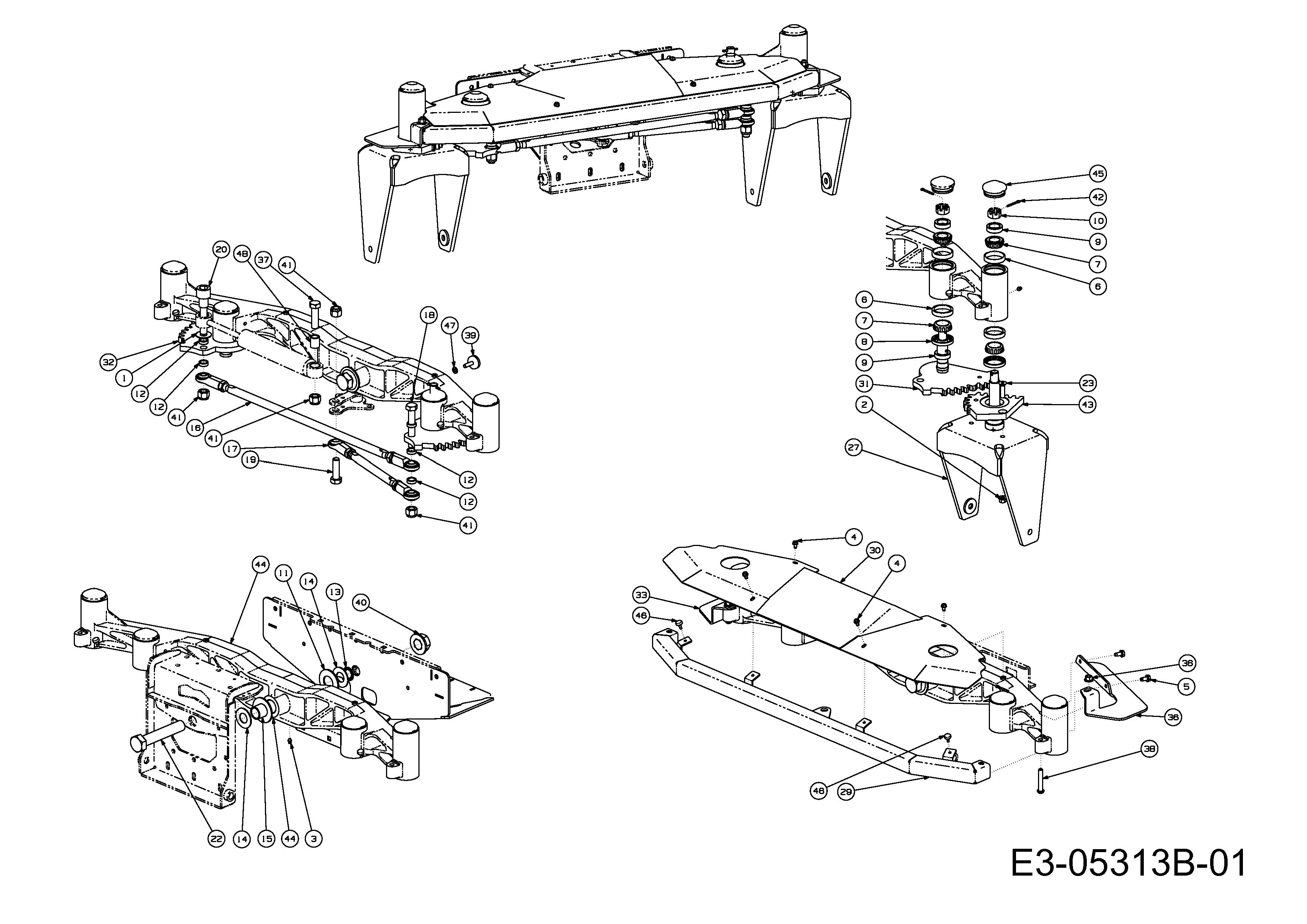

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00002766	WASHER .655X1.5X.055	N/A	POA
002	00022560	NO LONGER AVAILABLE	N/A	POA
003	00060078	grease nipple	N/A	POA
004	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
005	01001161	FLANGE SCREW 5/16-16X2.25	N/A	POA
006	01002620	RACE BEARING	£20.43	Add
007	01002621	CONE BEARING	£23.24	Add
008	01002622	SEAL OIL	£21.09	Add
009	01002624	RING SEAL WEAR	£18.98	Add
010	712-0359	NUT-HEX SLOTTED	£13.79	Add
011	01006294	BELL WASHER 1.25X2.50X.180	N/A	POA
012	01008404P	SPACER .635X.88X.28	£25.70	Add
013	01009997	SELF-LOCK EXTERNAL RETAINER	N/A	POA
014	02000588	WASHER 1.00X2.00X.075	N/A	POA
015	02000589	SPACER 1.00X1.25X3.47	N/A	POA
016	02003187	TIE ROD ASSY.	£124.52	Add
017	02003217	TIE ROD ASSY.	£127.05	Add
018	02003220	HEX SCREW 5/8-11X4.00	£35.47	Add
019	02003222	HEX SCREW 5/8-11X1.75	N/A	POA
020	02003357	SHOULDER BOLT	£64.70	Add
021	02003368P	CYLINDER STEERING	£270.68	Add
022	02003804	HEX SCREW 1-14X5.5	N/A	POA
023	02005073	HEX SCREW 3/8-16X1.50	N/A	POA
024	02005468	FRONT STEERING PIVOT ASSY.	£136.52	Add
027	603-04645A	YOKE ASSY.	£314.28	Add
028	603-04668	FRONT AXLE BRACKET ASM.	N/A	POA
029	680-00072	AXLE BUMPER ASM.	N/A	POA
030	680-00073	COVER AXLE ASM	N/A	POA
031	680-00074	STEERING GEAR ASSY. LH	£198.63	Add
032	680-00075	STEERING GEAR ASSY. RH	£184.89	Add
033	703-07259	RH GEAR COVER PLATE	N/A	POA
036	703-07471	LH GEAR COVER PLATE	N/A	POA
037	710-05000	SCREW	£21.63	Add
038	710-05066	SCREW 3/8-16 X 2.25	N/A	POA
039	710-05068	SHOE SKID ADJUSTABLE	£29.99	Add
040	712-04191	FLANGE TOP LOCK NUT 1.0-14	£20.49	Add
041	712-3016	NUT:HEXLK:5/8-11:GR5:NYLON	£11.98	Add
042	714-0162	COTTER PIN	£2.79	Add
043	717-04729	GEAR STEERING YOKE	£153.22	Add
044	719-04517	AXLE	N/A	POA
045	731-07348	CAP - GREASE AXLE	£68.76	Add
046	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK	£8.74	Add
047	736-0119	LOCK WASHER 5/16	£3.33	Add
048	750-05335	SPACER	£25.59	Add
