MTD012444

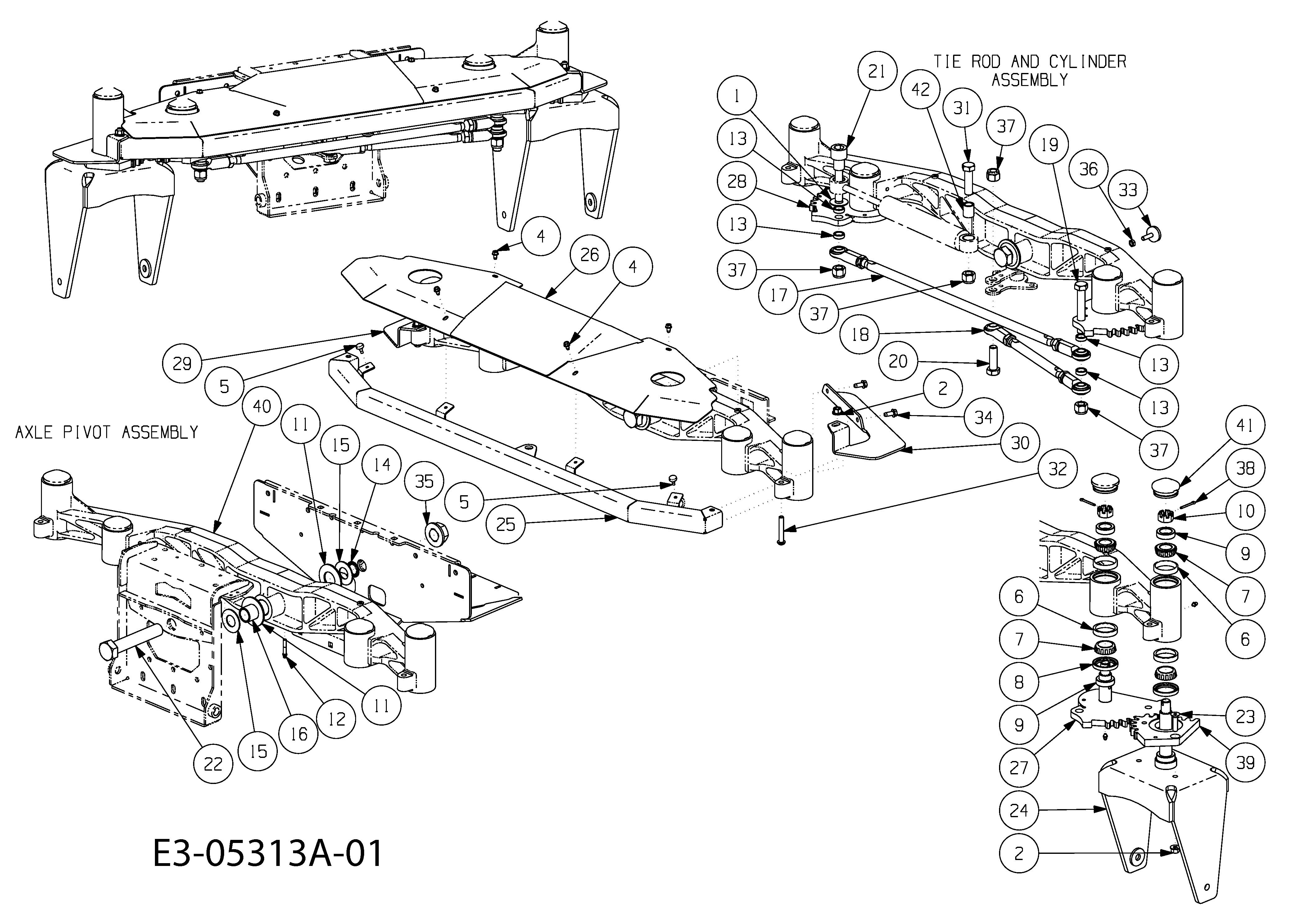

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	00002766	WASHER .655X1.5X.055	N/A	POA
002	00022560	NO LONGER AVAILABLE	N/A	POA
003	00060078	grease nipple	N/A	POA
004	01000628	SCREW:TT:1/4-20:0.500:HXINDWSH	£4.62	Add
005	01001170		N/A	POA
006	01002620	RACE BEARING	£20.43	Add
007	01002621	CONE BEARING	£23.24	Add
008	01002622	SEAL OIL	£21.09	Add
009	01002624	RING SEAL WEAR	£18.98	Add
010	01002626	NUT-HEX SLOTTED	£13.79	Add
011	01006294	BELL WASHER 1.25X2.50X.180	N/A	POA
012	01007642		N/A	POA
013	01008404P	SPACER .635X.88X.28	£25.70	Add
014	01009997	SELF-LOCK EXTERNAL RETAINER	N/A	POA
015	02000588	WASHER 1.00X2.00X.075	N/A	POA
016	02000589	SPACER 1.00X1.25X3.47	N/A	POA
017	02003187	TIE ROD ASSY.	£124.52	Add
018	02003217	TIE ROD ASSY.	£127.05	Add
019	02003220	HEX SCREW 5/8-11X4.00	£35.47	Add
020	02003222	HEX SCREW 5/8-11X1.75	N/A	POA
021	02003357	SHOULDER BOLT	£64.70	Add
022	02003804	HEX SCREW 1-14X5.5	N/A	POA
023	02005073	HEX SCREW 3/8-16X1.50	N/A	POA
024	603-04645A	YOKE ASSY.	£314.28	Add
025	680-00072	AXLE BUMPER ASM.	N/A	POA
026	680-00073	COVER AXLE ASM	N/A	POA
027	680-00074	STEERING GEAR ASSY. LH	£198.63	Add
028	680-00075	STEERING GEAR ASSY. RH	£184.89	Add
029	703-07259	RH GEAR COVER PLATE	N/A	POA
030	703-07471	LH GEAR COVER PLATE	N/A	POA
031	710-05000	SCREW	£21.63	Add
032	710-05066	SCREW 3/8-16 X 2.25	N/A	POA
033	710-05068	SHOE SKID ADJUSTABLE	£29.99	Add
034	710-1260A	SCREW	£4.00	Add
035	712-04191	FLANGE TOP LOCK NUT 1.0-14	£20.49	Add
036	712-3007	HEX JAM NUT	£3.07	Add
037	712-3016	NUT:HEXLK:5/8-11:GR5:NYLON	£11.98	Add
038	714-0162	COTTER PIN	£2.79	Add
039	717-04729	GEAR STEERING YOKE	£153.22	Add
040	719-04517	AXLE	N/A	POA
041	731-07348	CAP - GREASE AXLE	£68.76	Add
042	750-05335	SPACER	£25.59	Add
