MTD011074

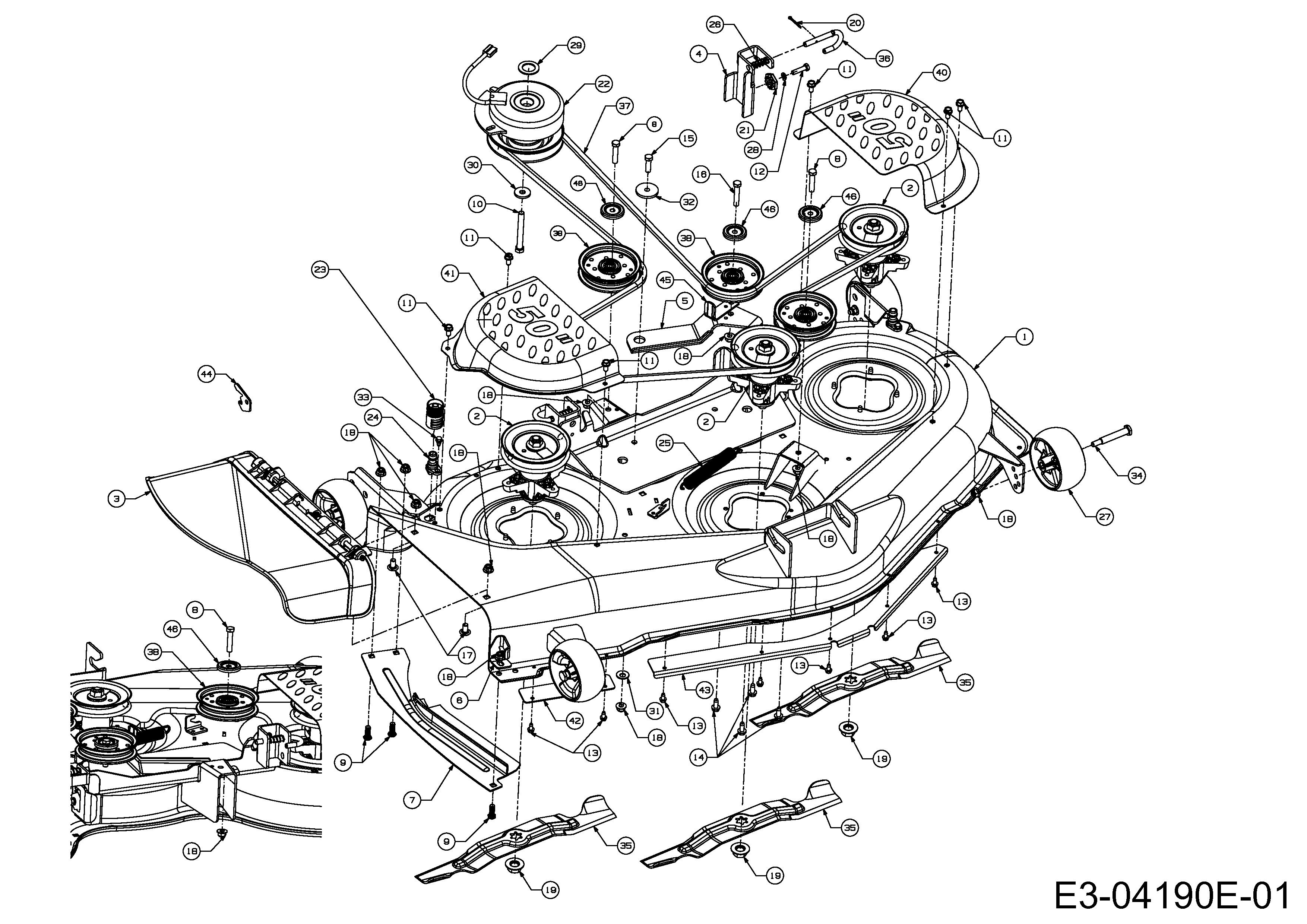

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04328C		N/A	POA
002	918-04125B	SPINDL ASM PUL 5.39 DIA x.5625	£152.37	Add
003	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
004	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
005	703-05825C	BRACKET IDLER ARM	£84.56	Add
006	703-3279	STOP:CHUT:DFL	£27.80	Add
007	703-3511B		N/A	POA
008	710-0347	HEX SCR	£3.72	Add
009	710-04095	SCREW HEX CAP	£8.34	Add
010	710-04379A	SCREW	£13.79	Add
011	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
012	710-0528	SCREW (DNR)	£3.55	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-1260A	SCREW	£4.00	Add
015	710-3005	BOLT	£3.24	Add
016	710-3144	SCREW	£3.28	Add
017	710-3178	BOLT SHORT NECK CARR	£11.46	Add
018	712-04065	NUT	£4.02	Add
019	712-05134	BLADE NUT	£3.81	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	717-05000	CLU:ELEC:PTO 46/50	£494.06	Add
023	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
024	731-07487	NOZ:DECK WSH	£16.29	Add
025	732-04609	Spring	£21.61	Add
026	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
027	734-04155	WHEEL:DECK	£16.47	Add
028	736-0119	LOCK WASHER 5/16	£3.33	Add
029	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
030	736-0322	FI-WASH	£8.68	Add
031	736-0407	WASHER	£11.84	Add
032	738-04162C	SPACER	£5.00	Add
033	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
034	738-03056		N/A	POA
035	742-04053C	BLADE	£39.96	Add
036	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
037	754-04044A	BELT	£69.34	Add
038	753-08171	KIT IDLER PULLEY	£37.57	Add
039	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
040	783-04399	COVER-BELT LH	N/A	POA
041	783-04400	COVER-BELT RH	N/A	POA
042	783-04415	SKIRT:RH:50"	N/A	POA
043	783-06125	SKIRT:CNTR:50" EXPORT	N/A	POA
044	783-06241	BRACKET STOP	N/A	POA
045	783-06368A-S	GUIDE ASSY-BELT	£21.57	Add
046	783-07236	PULLEY CAP	£10.42	Add
