MTD011060

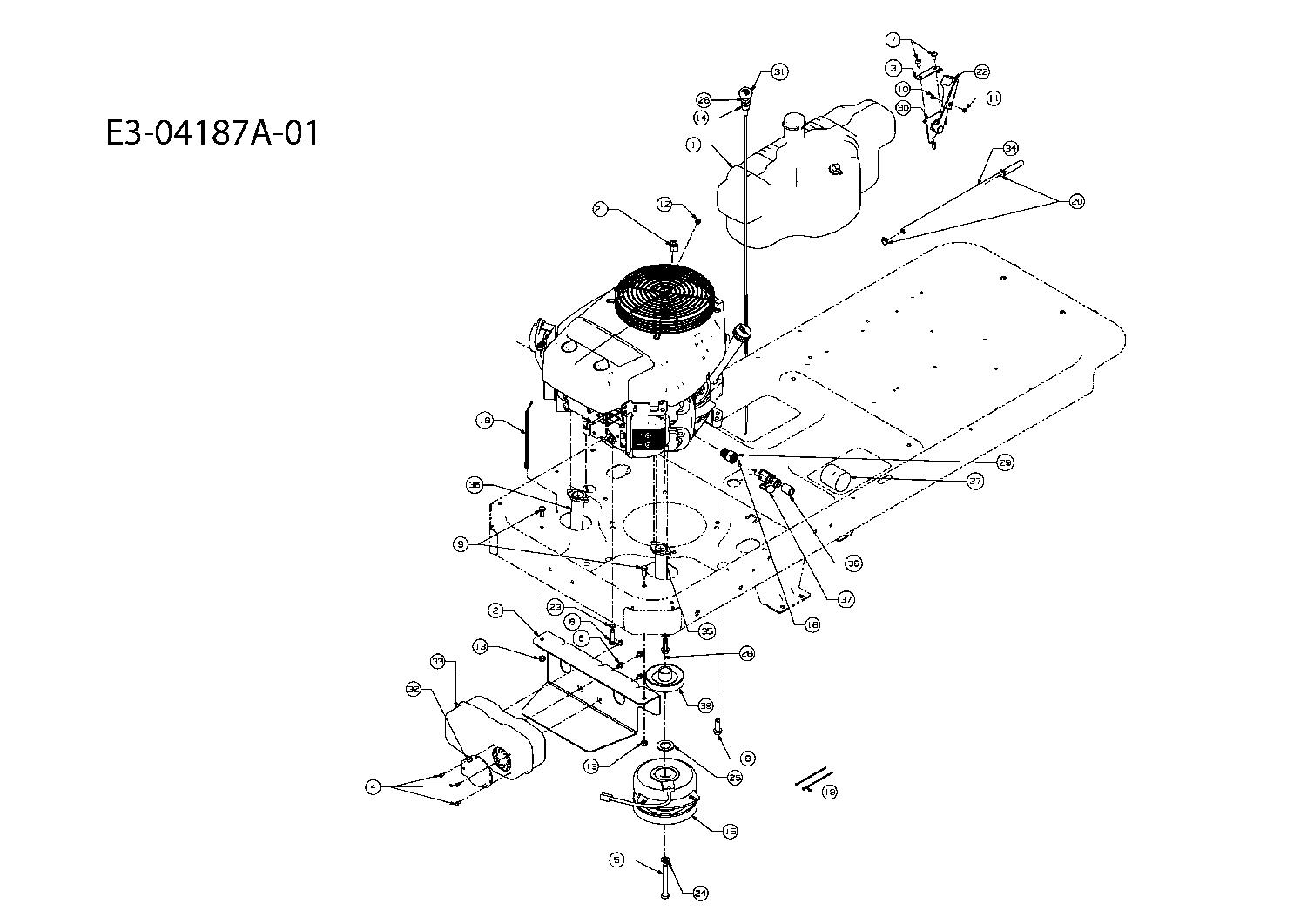

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	651-04209	TANK ASM:FUEL 3,5 GAL:MONO LY	£144.64	Add
002	703-05441A	EXHAUST BRACKET	£75.56	Add
003	703-05899	BRKT:THROT:KAW:EXPORT	£63.43	Add
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04379A	SCREW	£13.79	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-1017	TAP SCREW	£2.97	Add
008	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
009	710-3008	HEX BOLT	£3.03	Add
010	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
011	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
012	712-0271	NUT:SEMS:1/4-20	£3.03	Add
013	712-0429	NUT HEX.INS L NUT	£4.92	Add
014	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
015	717-05000	CLU:ELEC:PTO 46/50	£494.06	Add
016	721-0331	SLNT:PIPE:PST 592 LOCTITE	N/A	POA
017	725-04356	ADAPTER CABLE KAWASAKI 6 PIN	£43.32	Add
018	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
019	726-0197	TIE:CBL:PANDUIT SST-1M	£4.11	Add
020	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
021	726-0272	Clamp	£2.98	Add
022	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
023	736-0148	NO LONGER AVAILABLE	N/A	POA
024	736-0171	WASHER	£2.93	Add
025	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
026	736-0300	WASHER	£2.81	Add
028	737-0288	NO LONGER AVAILABLE	N/A	POA
029	737-04138	FTG:1.0 HEX x M20 METRIC THD	£27.42	Add
030	746-04066	THROTTLE CABLE	£61.98	Add
031	746-04214	CABLE-CHOKE 61.0 LG	£48.63	Add
032	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
033	751-0616B	MFLR:DUAL INLET	£139.86	Add
034	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
035	751-10355	PIPE-EXHAUST RH	£93.35	Add
036	751-10356	EXHAUST TUBE L.H.	£89.42	Add
037	751-10517A	OIL DRAIN	£38.87	Add
038	751-3141	HOSE:EXTN:OIL DRAIN	N/A	POA
039	756-0978B	PULLEY ENGINE ELECT. PTO	£83.07	Add
041	751-12428	FUEL CAP VENTED	£37.96	Add
042	751-10442	INTAKE TUBE	£27.23	Add
043	735-0149	BUSHING	£9.50	Add
