MTD017669

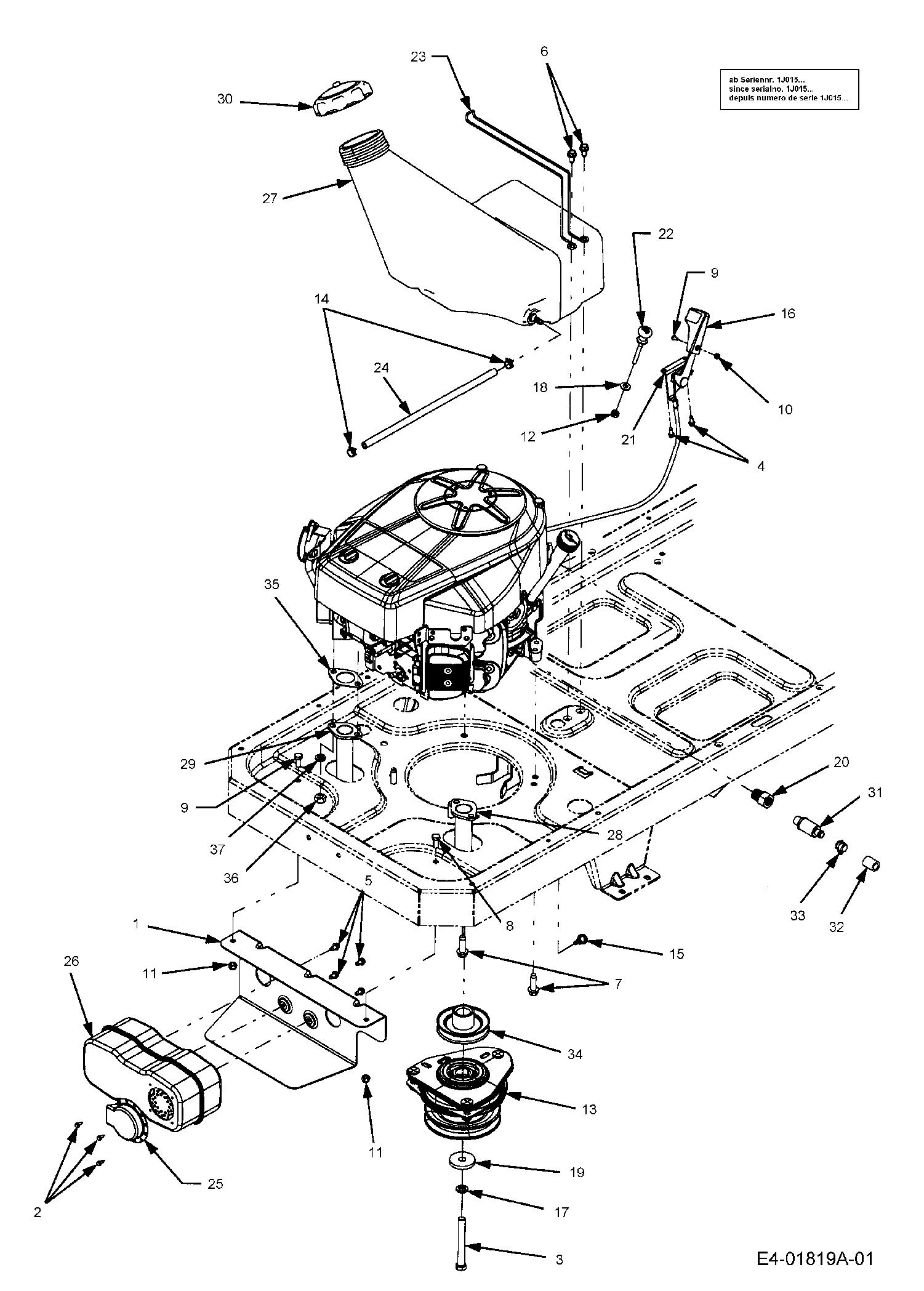

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	703-05441A	EXHAUST BRACKET	£75.56	Add
002	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
003	710-04248	SCREW_HEX CAP 7/16	£14.44	Add
004	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
005	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
006	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
007	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
008	710-3008	HEX BOLT	£3.03	Add
009	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
010	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
011	712-0429	NUT HEX.INS L NUT	£4.92	Add
012	712-3005	NUT:FLGLK:3/8-16:GR5	£3.49	Add
013	717-04183	CKUTCH-ELECTRIC PTO	£325.03	Add
014	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
015	726-3055	CLIP-CABLE RETAINER	£3.34	Add
016	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
017	736-0171	WASHER	£2.93	Add
018	736-0300	WASHER	£2.81	Add
019	736-04131	washer	£30.79	Add
020	737-04138	FTG:1.0 HEX x M20 METRIC THD	£27.42	Add
021	746-04066	THROTTLE CABLE	£61.98	Add
022	746-04214	CABLE-CHOKE 61.0 LG	£48.63	Add
023	747-04228A	WIRE-FUEL TANK	£48.55	Add
024	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
025	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
026	751-0616B	MFLR:DUAL INLET	£139.86	Add
027	751-10057C	TANK-FUEL	£118.78	Add
028	751-10355	PIPE-EXHAUST RH	£93.35	Add
029	751-10356	EXHAUST TUBE L.H.	£89.42	Add
030	751-3124B	FUEL CAP:3.5	N/A	POA
031	751-10517A	OIL DRAIN	£38.87	Add
032	751-3141	HOSE:EXTN:OIL DRAIN	N/A	POA
033	751-3142	CAP:DRAIN:OIL	£17.58	Add
034	756-0978B	PULLEY ENGINE ELECT. PTO	£83.07	Add
035	KM-11060-7018		N/A	POA
036	KM317R0800	Nut-hex. KM-317R0800	N/A	POA
037	KM461DA0800	LOCK WASHER 090.50.668	N/A	POA
