MTD017666

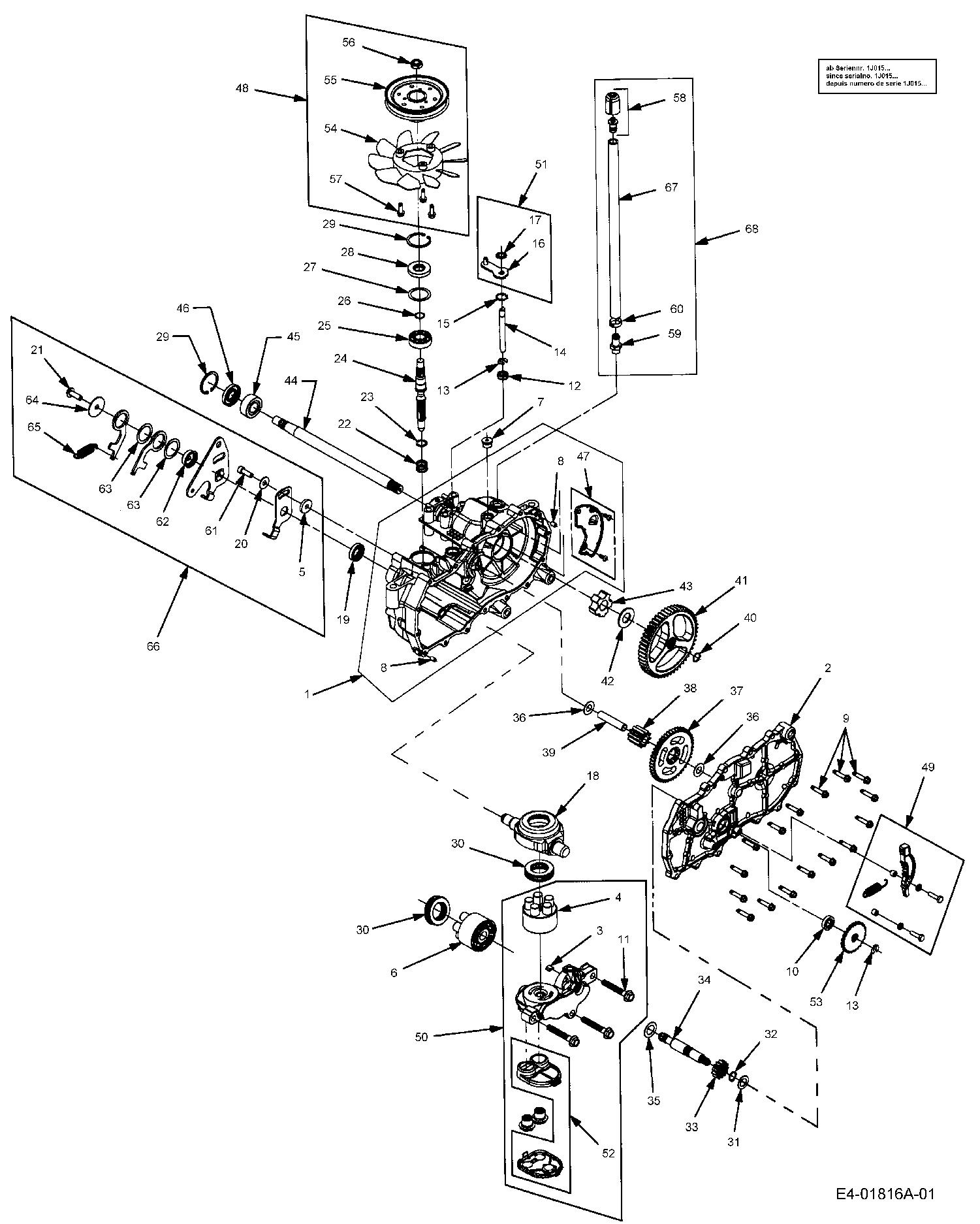

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017666

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 HG-70862R N/A POA
002 HG-70863R SIDE ASM, RH RZT £284.69 Add
003 HG-51448 PLATE, BYPASS N/A POA
004 HG-70723 KIT N/A POA
005 HG-51949 N/A POA
006 HG-70331 BLOCKASSY-CYLINDER £322.57 Add
007 HG-9005110-5600 PLUG (RED) £22.05 Add
008 HG-9004800-2506 N/A POA
009 HG-51190 HEXFLANGE SCREW 1/4-20X1.25 £8.22 Add
010 HG-70719 SEAL £52.69 Add
011 HG-50016 BOLT 3/8-24 X 2.5 £16.08 Add
012 HG-51626 NO LONGER AVAILABLE N/A POA
013 HG-5151628 N/A POA
014 HG-51625 N/A POA
015 HG-51627 Circlip N/A POA
016 HG-52370 N/A POA
017 HG-51630 RING, RETAINING £9.40 Add
018 HG-51048 SWASHPLATE,TRUNNION MACHINED £188.08 Add
019 HG-51140 SEAL £25.56 Add
020 736-0371 WASH:THRST:.343 X .880 X .062 £3.20 Add
021 HG-51812 SCREW, PATCH £16.42 Add
022 HG-2003014 SPRING BLOCK £6.44 Add
023 HG-2003017 NO LONGER AVAILABLE N/A POA
024 HG-51062 SHAFT,INPUT £255.66 Add
025 HG-50315 BALL BRG 17MMIDX40MMODX12MM £48.43 Add
026 HG-2000022 RING WIRE RETAINING £9.89 Add
027 HG-50951 SPACER £9.89 Add
028 HG-51161 SEAL RING £31.32 Add
029 28.3592.40 NO LONGER AVAILABLE N/A POA
030 HG-50551P DRUCKLAGER £68.32 Add
031 HG-44371 WASHER-FLAT £25.73 Add
032 HG-44145 RETAINING RING £7.55 Add
033 HG-51130 GEAR-PINNION,13T £18.00 Add
034 HG-51632 N/A POA
035 HG-51069 WASHER,MOTOR SHAFT £12.04 Add
036 HG-50132 NO LONGER AVAILABLE N/A POA
037 HG-51129 10T/48T GAER £114.58 Add
038 HG-51043 Gear N/A POA
039 HG-51063 N/A POA
040 HG-44871 RETAINING RING £17.89 Add
041 HG-51633 N/A POA
042 HG-44875 WASHER 3/4 X 1.5 X .13 £8.58 Add
043 HG-51088 BEARING SLEEVE £36.93 Add
044 HG-51954 SHAFT-AXLE RZT £391.00 Add
045 HG-51089 BEARING £66.64 Add
046 HG-51066 SEAL LIP £24.55 Add
047 HG-70868R PLATE KIT-RH EXPANSION N/A POA
048 HG-71333 N/A POA
049 HG-71356 KIT BRAKE ARM LH+RH RZT £70.49 Add
050 HG-71143 SECTION KIT RH N/A POA
051 HG-71006 N/A POA
052 HG-70911 N/A POA
053 HG-51635 COG BRAKE £53.91 Add
054 HG-52315 FAN £69.32 Add
055 HG-50302 NO LONGER AVAILABLE N/A POA
056 HG-51244 NUT:JAM:1/2-20:INS LOCK £4.50 Add
057 HG-50752 SCREW, HEX CAP £31.67 Add
058 HG-70921 N/A POA
059 HG-50591 N/A POA
060 HG-50590 N/A POA
061 HG-51616 SCREW, PATCH N/A POA
062 HG-61947 N/A POA
063 HG-51948 N/A POA
064 HG-51950 WASHER N/A POA
065 HG-51399 SPRING, EXTENSION £17.58 Add
066 HG-71095 N/A POA
067 HG-51731 N/A POA
068 HG-71308 HOSE ASM-BREATHER £114.53 Add
