MTD017664

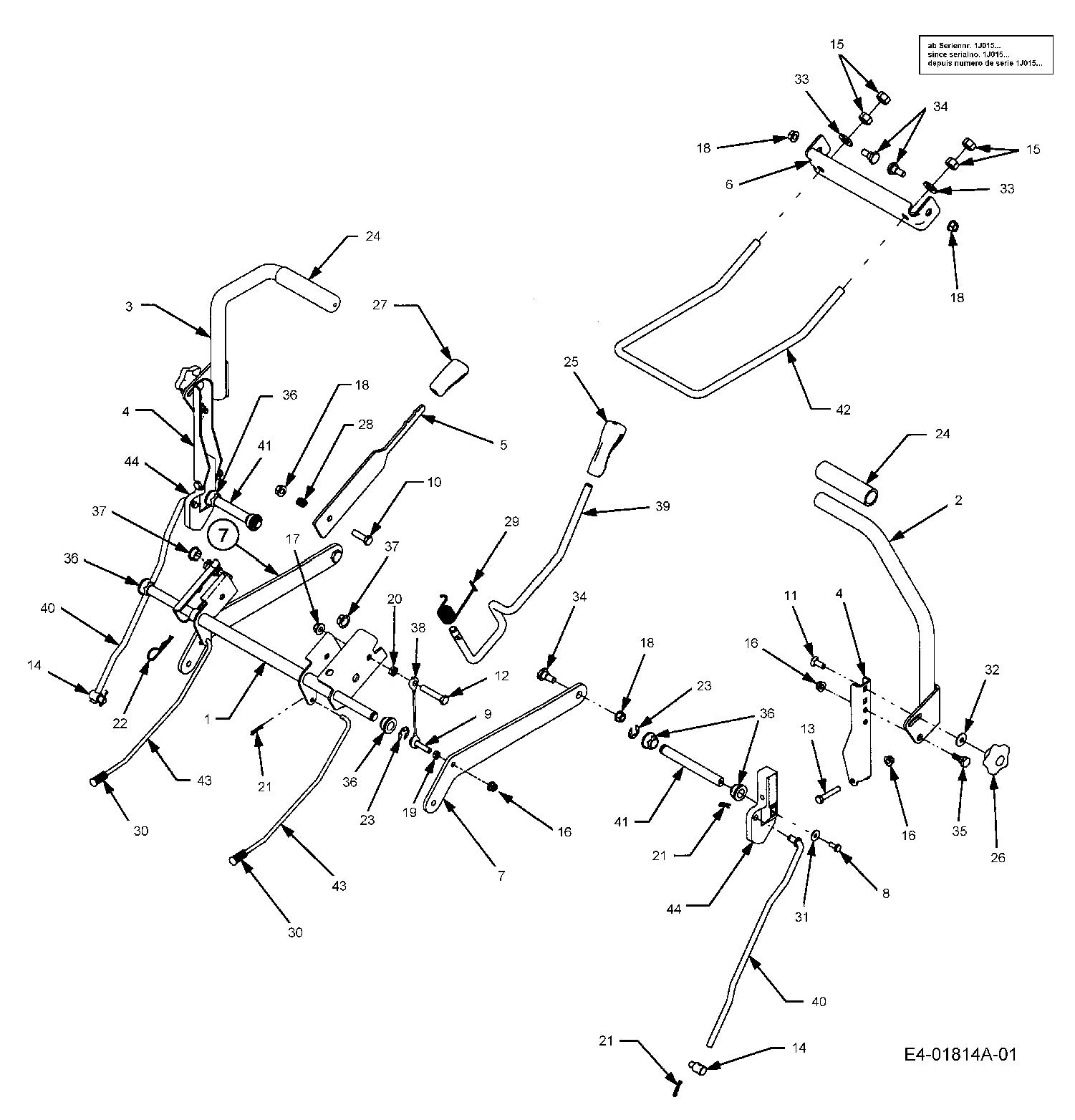

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04160A	SHAFT ASM-DECK LIFT	£83.30	Add
002	603-04322	HANDLE-RH LAPBAR	£100.37	Add
003	603-04324	HANDLE-LH LAPBAR	£106.58	Add
004	703-05387A	BRKT-STEERING PIVOT RZT	£32.45	Add
005	703-05396	LEVER, PARK BRAKE ENGAGEMENT	£58.33	Add
006	703-05414A	BRKT:FRT DECK HNGR	N/A	POA
007	703-05793	ARM - DECK LIFT	N/A	POA
008	710-0433	HEX BOLT	£6.66	Add
009	710-0805	SCRE.HHCS:5/16-18:1.50:GR5:STD	£4.71	Add
010	710-3005	BOLT	£3.24	Add
011	710-3105	BOLT:CRG:5/16-18:.875:GR1	£8.93	Add
012	710-3144	SCREW	£3.28	Add
013	710-3180	SCREW HEX CAP	£5.00	Add
014	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
015	712-0206	NUT	£3.42	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	712-04065	NUT	£4.02	Add
018	712-0431	NUT	£3.20	Add
019	712-3007	HEX JAM NUT	£3.07	Add
020	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
021	714-0104	PIN INTERNAL COTTER	£2.78	Add
022	714-3020	PIN-COTTER	£7.71	Add
023	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
024	720-0274	GRIP:1.0 ID x 5.0 LG	£7.62	Add
025	720-0311	KNOB	£20.43	Add
026	720-04052	FESTSTELLKNOPF 5/16-8	N/A	POA
027	731-04735	Handle	£24.91	Add
028	732-0334	COMPRESSION SPRING	£3.39	Add
029	732-0874	SPRING-TORSION	£11.98	Add
030	732-04350		N/A	POA
031	736-0270	BELL WASHER	£3.91	Add
032	736-0425	BELLWASHER	£3.31	Add
033	736-3019	WASHER FLAT	£5.39	Add
034	738-0143	SHOULDER BOLT	£12.24	Add
035	736-0296	WASHER	£3.49	Add
036	741-0225	HEX FLANGE BEARING	£4.92	Add
037	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
038	746-0970	BRAKE CABLE	£15.32	Add
039	747-04224	LIFT LEVER	N/A	POA
040	747-04225A	ROD-LIFT INDEX	£68.91	Add
041	747-04226	ROD	N/A	POA
042	747-04401	ROD, DECK FRONT HANGAR	£55.31	Add
043	747-04491	ROD BRAKE ASSY.	£84.46	Add
044	748-04052	FITTING,CONNECTOR	£77.08	Add
