MTD017657

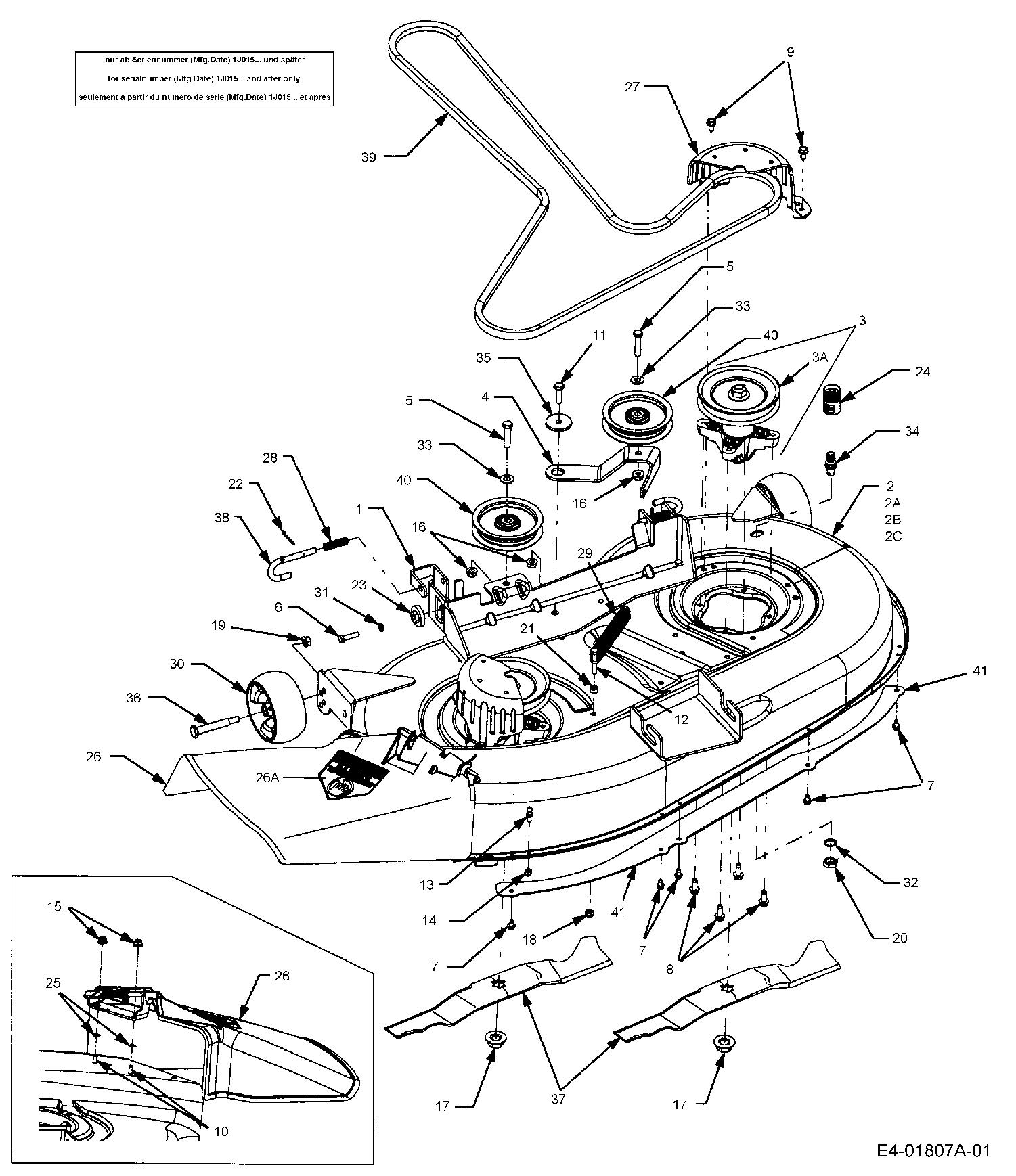

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04156	BRACKET DECK LIFT	N/A	POA
002	603-04335		N/A	POA
003	618-0427	SPINDLE ASM-W/FTG 5.75"DIA PUL	N/A	POA
004	703-05824		N/A	POA
005	710-0347	HEX SCR	£3.72	Add
006	710-0528	SCREW (DNR)	£3.55	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-0650	SCREW	£3.58	Add
009	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
010	710-0751	BOLT 069	£3.39	Add
011	710-3005	BOLT	£3.24	Add
012	710-3180	SCREW HEX CAP	£5.00	Add
013	711-04069	PIN:GRASSCATCHER:1/4-20	£16.01	Add
014	712-0324	HEX. INS L NUT	£3.69	Add
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
016	712-04065	NUT	£4.02	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-0429	NUT HEX.INS L NUT	£4.92	Add
019	712-0431	NUT	£3.20	Add
020	712-0641	NUT	£6.47	Add
021	712-3010	NUT 5/16 x 18	£2.77	Add
022	714-0470	COTTER PIN	£5.07	Add
023	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
024	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
025	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
026	731-1032B	EJECTION FLAP	£92.54	Add
027	731-2231B	BELT GUARD	£60.13	Add
028	732-0306A	SPACER	£5.28	Add
029	732-0459	SPRING 6.7	£15.10	Add
02A	777S32599	LABEL DECK WARNING	N/A	POA
02B	777S30503	NO LONGER AVAILABLE	N/A	POA
02C	777I22281	HEADLIGHT DECAL	N/A	POA
030	734-04155	WHEEL:DECK	£16.47	Add
031	736-0119	LOCK WASHER 5/16	£3.33	Add
032	736-0760	WASHER	£4.01	Add
033	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
034	737-04003D	NOZ:DECK:WATER	£19.14	Add
035	738-04162C	SPACER	£5.00	Add
036	738-3056	SHOULDER BOLT	£12.94	Add
037	942-0616A		N/A	POA
038	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
039	754-04045	BELT (DECK)	£86.89	Add
03A	756-1188	PULLEY	£20.08	Add
040	753-08171	KIT IDLER PULLEY	£37.57	Add
041	753-0884	KIT DECK SKIRT	£118.63	Add
26A	777S30284	LABEL DANGER	£24.60	Add
