MTD014003

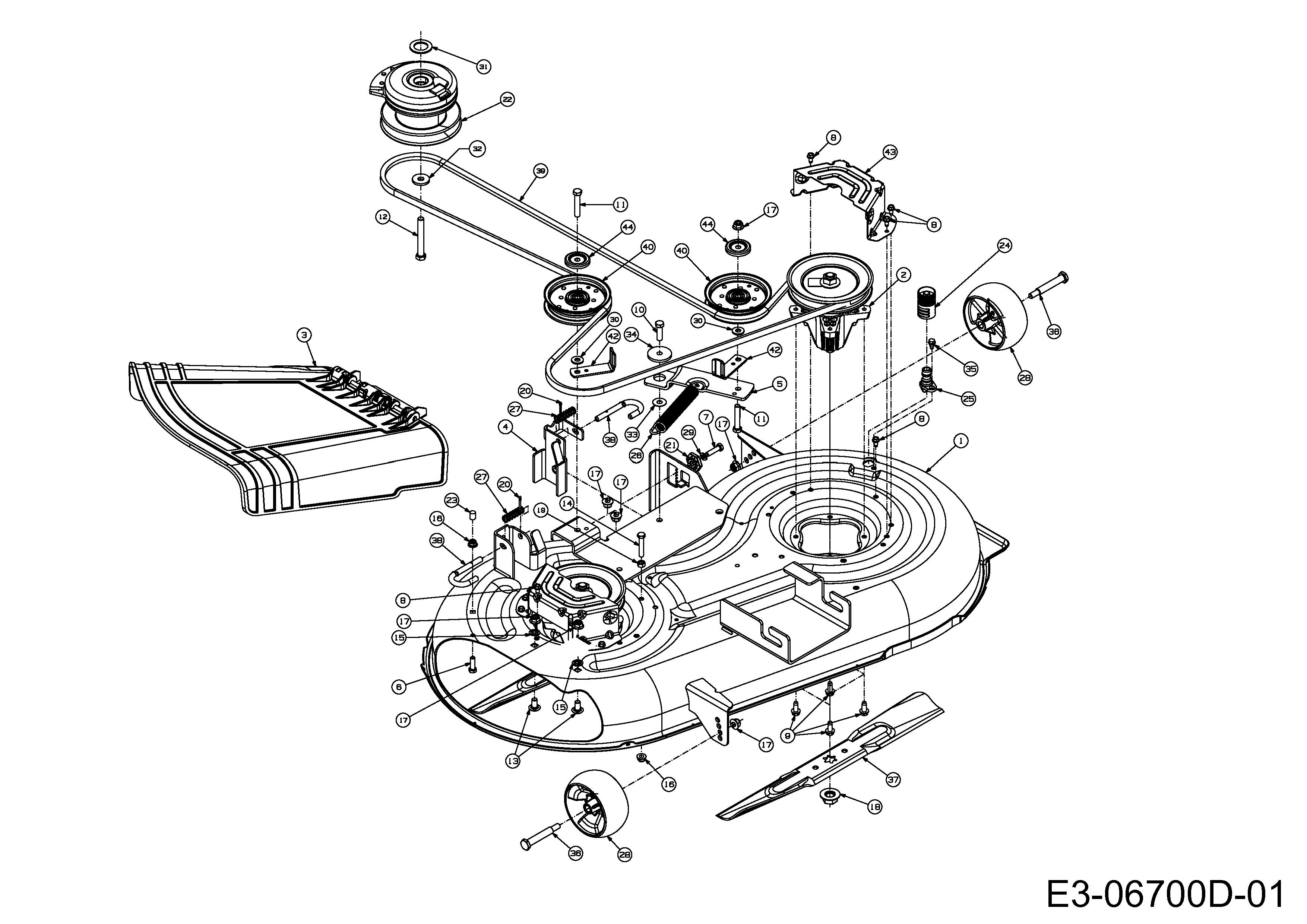

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04860A		N/A	POA
002	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
003	631-04349	CHUTE ASM. DECK	N/A	POA
004	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
005	703-08336B	BRACKET IDLER PIVOT	N/A	POA
006	710-0376	SCREW HEX CAP 5/16	£9.02	Add
007	710-0528	SCREW (DNR)	£3.55	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-1260A	SCREW	£4.00	Add
010	710-3005	BOLT	£3.24	Add
011	710-3144	SCREW	£3.28	Add
012	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
013	710-3178	BOLT SHORT NECK CARR	£11.46	Add
014	710-3180	SCREW HEX CAP	£5.00	Add
015	712-0229	NUT PUSH	£5.20	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	712-04065	NUT	£4.02	Add
018	712-05134	BLADE NUT	£3.81	Add
019	712-3010	NUT 5/16 x 18	£2.77	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	717-04376A	CLUTCH	£339.44	Add
023	720-05010	CAP VINYL	£4.62	Add
024	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
025	731-07487	NOZ:DECK WSH	£16.29	Add
026	732-0459C	EXTENSION SPRING	£18.91	Add
027	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
028	734-04155	WHEEL:DECK	£16.47	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0300	WASHER	£2.81	Add
031	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
032	736-0322	FI-WASH	£8.68	Add
033	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
034	738-04162C	SPACER	£5.00	Add
035	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
036	738-3056	SHOULDER BOLT	£12.94	Add
037	742-04308	BLADE	£59.01	Add
038	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
039	754-04137A	BELT:VTYPE:A SECx114,24 ARAMID	£75.31	Add
040	753-08171	KIT IDLER PULLEY	£37.57	Add
042	783-06368A-S	GUIDE ASSY-BELT	£21.57	Add
043	783-06424ACY	COVER BELT DECK	£39.28	Add
044	783-07236	PULLEY CAP	£10.42	Add
