MTD014002

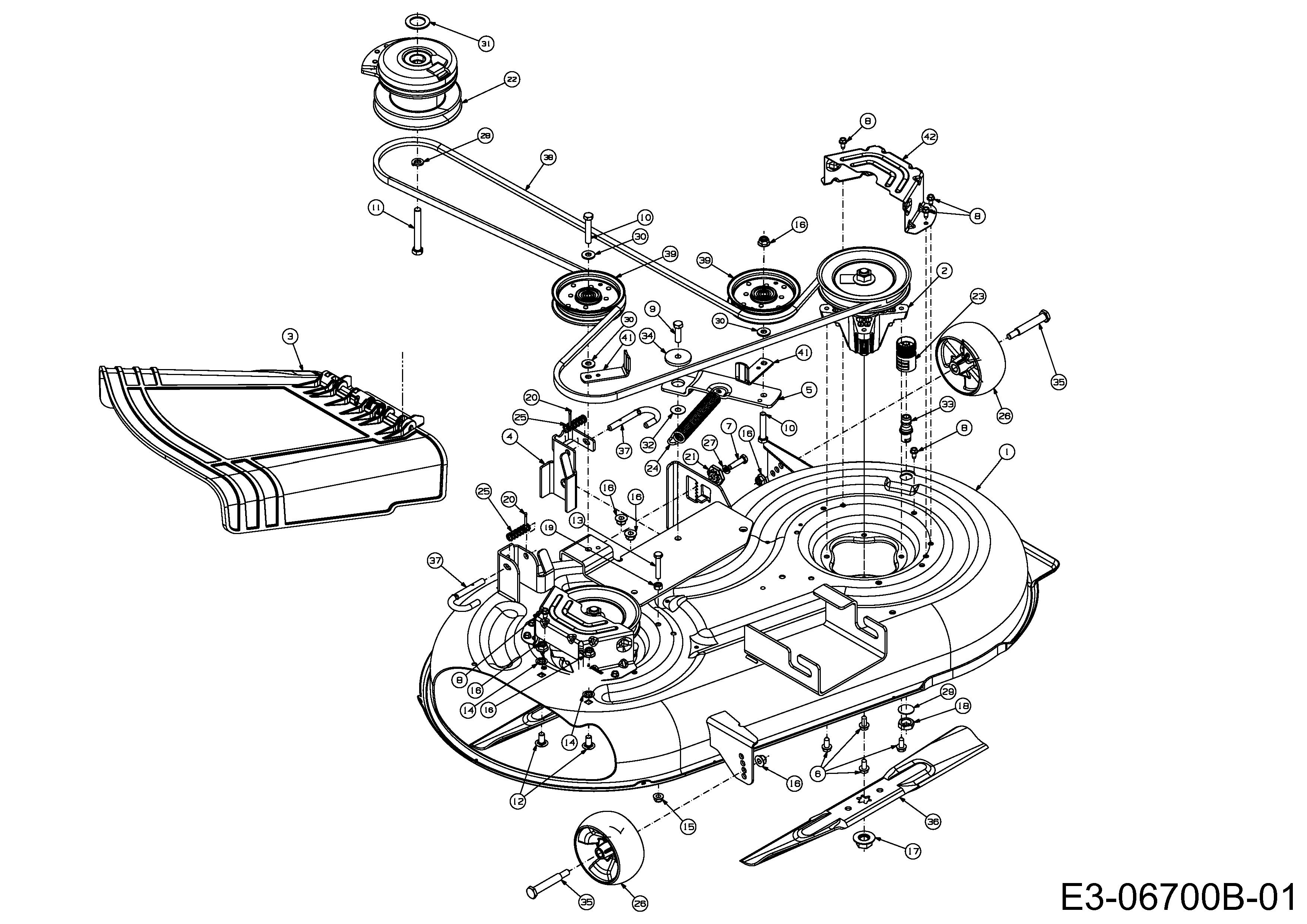

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04860		N/A	POA
002	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
003	631-04349	CHUTE ASM. DECK	N/A	POA
004	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
005	703-08336B	BRACKET IDLER PIVOT	N/A	POA
006	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
007	710-0528	SCREW (DNR)	£3.55	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-3005	BOLT	£3.24	Add
010	710-3144	SCREW	£3.28	Add
011	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
012	710-3178	BOLT SHORT NECK CARR	£11.46	Add
013	710-3180	SCREW HEX CAP	£5.00	Add
014	712-0229	NUT PUSH	£5.20	Add
015	712-04063	FLANGED NUT	£4.20	Add
016	712-04065	NUT	£4.02	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-0641	NUT	£6.47	Add
019	712-3010	NUT 5/16 x 18	£2.77	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	717-04376A	CLUTCH	£339.44	Add
023	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
024	732-0459C	EXTENSION SPRING	£18.91	Add
025	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
026	734-04155	WHEEL:DECK	£16.47	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0171	WASHER	£2.93	Add
029	736-0225	WASHER (RED)	£5.32	Add
030	736-0300	WASHER	£2.81	Add
031	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
032	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
033	737-04003D	NOZ:DECK:WATER	£19.14	Add
034	738-04162C	SPACER	£5.00	Add
035	738-3056	SHOULDER BOLT	£12.94	Add
036	742-04308	BLADE	£59.01	Add
037	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
038	754-04137A	BELT:VTYPE:A SECx114,24 ARAMID	£75.31	Add
039	753-08171	KIT IDLER PULLEY	£37.57	Add
041	783-06368A-S	GUIDE ASSY-BELT	£21.57	Add
042	783-06424A-S	COVER-BELT DECK 42"	£38.88	Add
