MTD011173

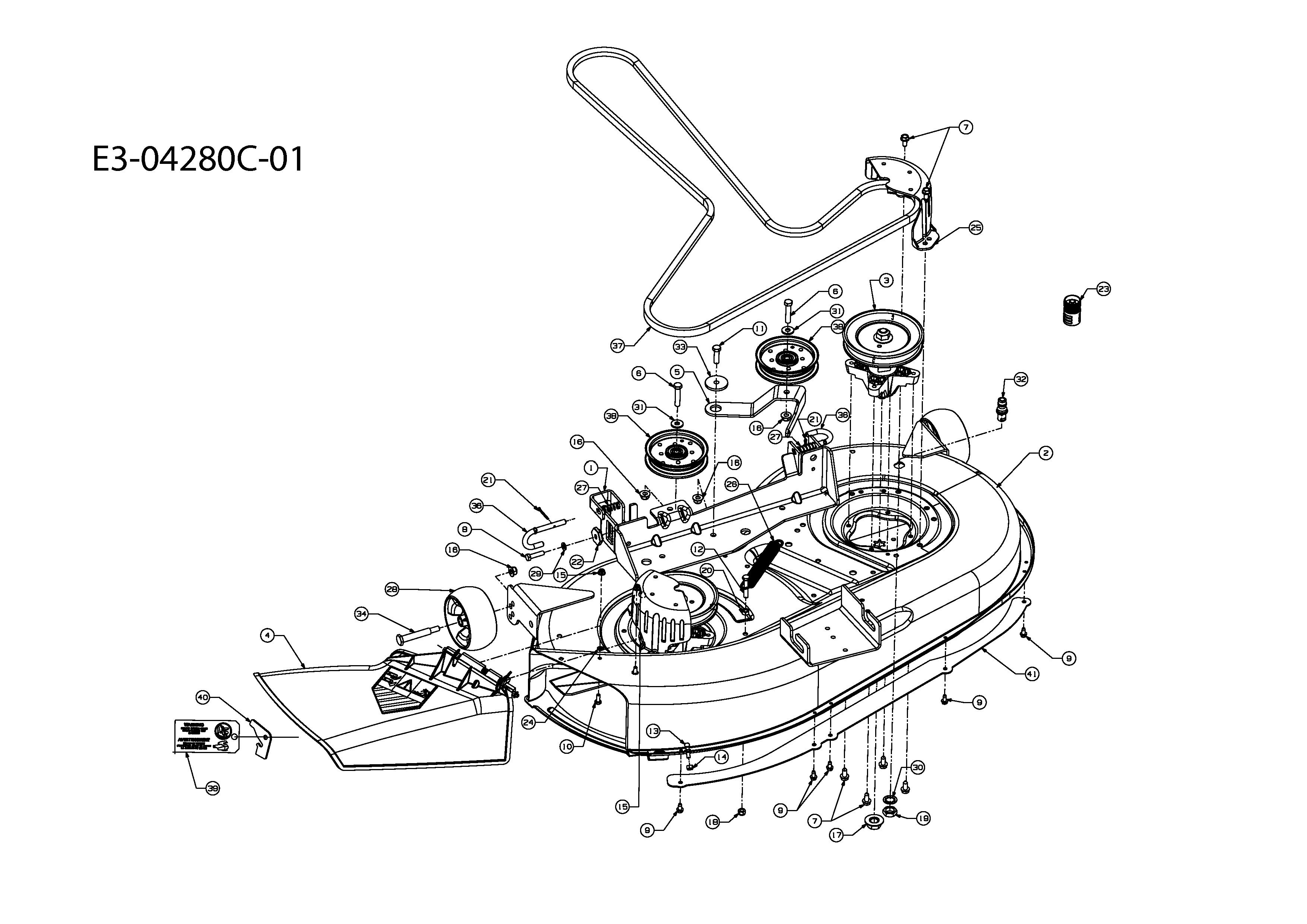

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04156	BRACKET DECK LIFT	N/A	POA
002	603-04335C	COVER	N/A	POA
003	618-0624B	SPINDLE ASSY 6.3" DIA PULLEY	£177.99	Add
004	631-0220B	CHUTE ASSY	£35.56	Add
005	703-05824C		N/A	POA
006	710-0347	HEX SCR	£3.72	Add
007	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0751	BOLT 069	£3.39	Add
011	710-3005	BOLT	£3.24	Add
012	710-3180	SCREW HEX CAP	£5.00	Add
013	711-04069	PIN:GRASSCATCHER:1/4-20	£16.01	Add
014	712-0324	HEX. INS L NUT	£3.69	Add
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
016	712-04065	NUT	£4.02	Add
017	712-05134	BLADE NUT	£3.81	Add
018	712-0429	NUT HEX.INS L NUT	£4.92	Add
019	712-0641	NUT	£6.47	Add
020	712-3010	NUT 5/16 x 18	£2.77	Add
021	714-0470	COTTER PIN	£5.07	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
024	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
025	731-2231B	BELT GUARD	£60.13	Add
026	732-04609	Spring	£21.61	Add
027	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
028	734-04155	WHEEL:DECK	£16.47	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0225	WASHER (RED)	£5.32	Add
031	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
032	737-04003D	NOZ:DECK:WATER	£19.14	Add
033	738-04162C	SPACER	£5.00	Add
034	738-3056	SHOULDER BOLT	£12.94	Add
035	742-0674-637	BLADE 21.20"LG STAR LOW BLACK	£55.23	Add
036	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
037	754-04137A	BELT:VTYPE:A SECx114,24 ARAMID	£75.31	Add
038	753-08171	KIT IDLER PULLEY	£37.57	Add
039	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
040	783-1025	STOP:CHUTE	£7.30	Add
041	753-0884	KIT DECK SKIRT	£118.63	Add
