MTD011190

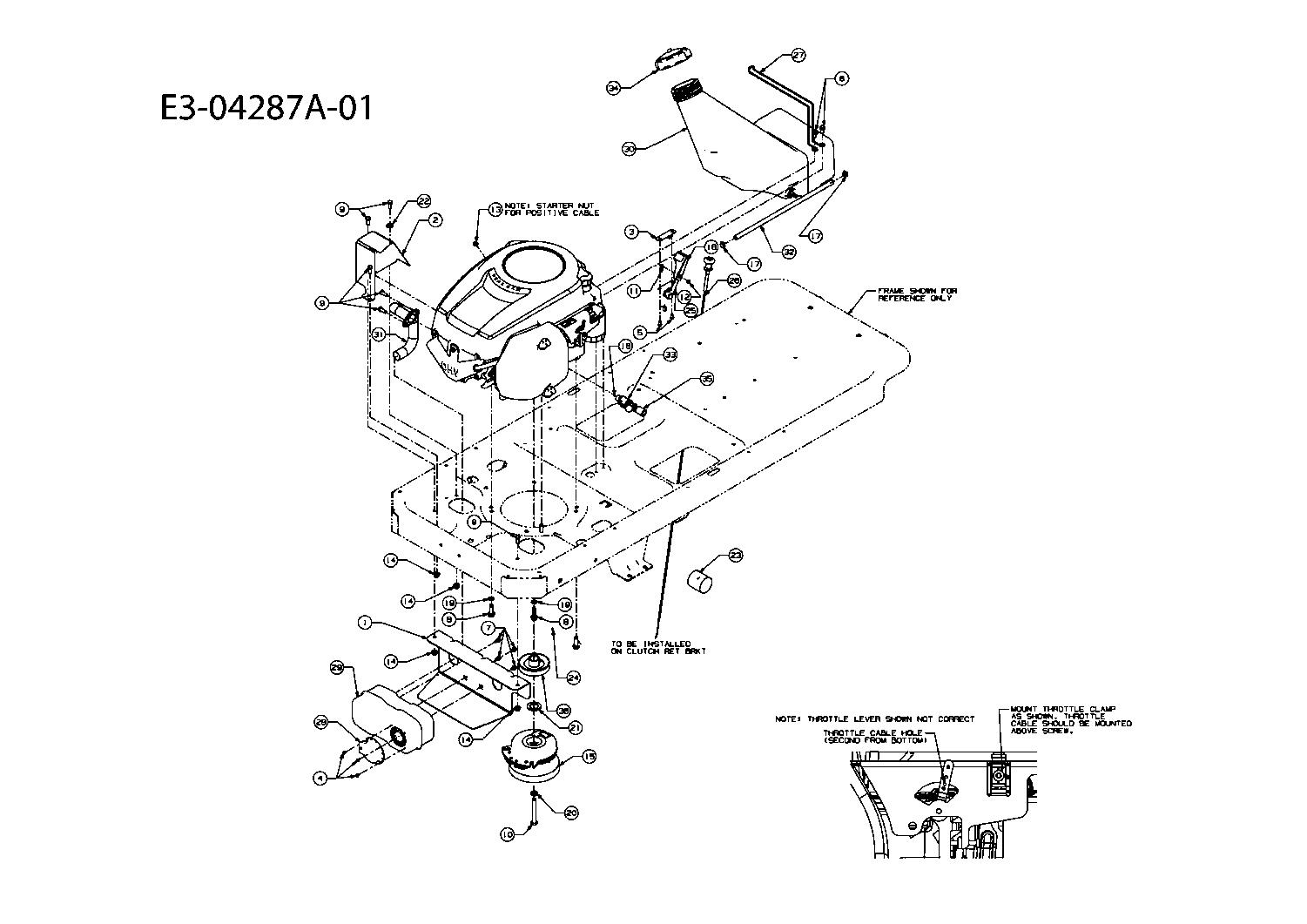

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	703-05441A	EXHAUST BRACKET	£75.56	Add
002	703-05870	SHIELD HEAT	N/A	POA
003	703-05892	PLATE THROTTLE	N/A	POA
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
006	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
009	710-3008	HEX BOLT	£3.03	Add
010	710-3157A	HEX.SCREW HHCS:7/16-20:3.25GR5	£9.80	Add
011	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
012	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
013	712-0271	NUT:SEMS:1/4-20	£3.03	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	717-04376A	CLUTCH	£339.44	Add
016	721-0331	SLNT:PIPE:PST 592 LOCTITE	N/A	POA
017	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
018	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
019	736-0148	NO LONGER AVAILABLE	N/A	POA
020	736-0171	WASHER	£2.93	Add
021	736-0277	WASH:FLAT:1.031 x 1.620 x.095	£9.72	Add
022	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
023	737-0169	MOTOR OIL SAE 30, SD,SE &	N/A	POA
024	737-0288	NO LONGER AVAILABLE	N/A	POA
025	746-04161	CBL:THROT/CHOKE:39,0" LG x.62	£39.49	Add
026	746-04235	CONT:CHOKE:47"LG 2"EXT EXT	£38.52	Add
027	747-04228A	WIRE-FUEL TANK	£48.55	Add
028	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
029	751-0617C	MFLR SINGLE INLET	£115.83	Add
030	751-10057D	TANK-FUEL	£88.48	Add
031	751-10251	TUBE EXHAUST	£103.30	Add
032	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
033	751-10517A	OIL DRAIN	£38.87	Add
034	751-3124D	CAP:FUEL:3.5" GAS w/O LOGO	N/A	POA
035	751-3141	HOSE:EXTN:OIL DRAIN	N/A	POA
036	756-0978B	PULLEY ENGINE ELECT. PTO	£83.07	Add
