MTD011171

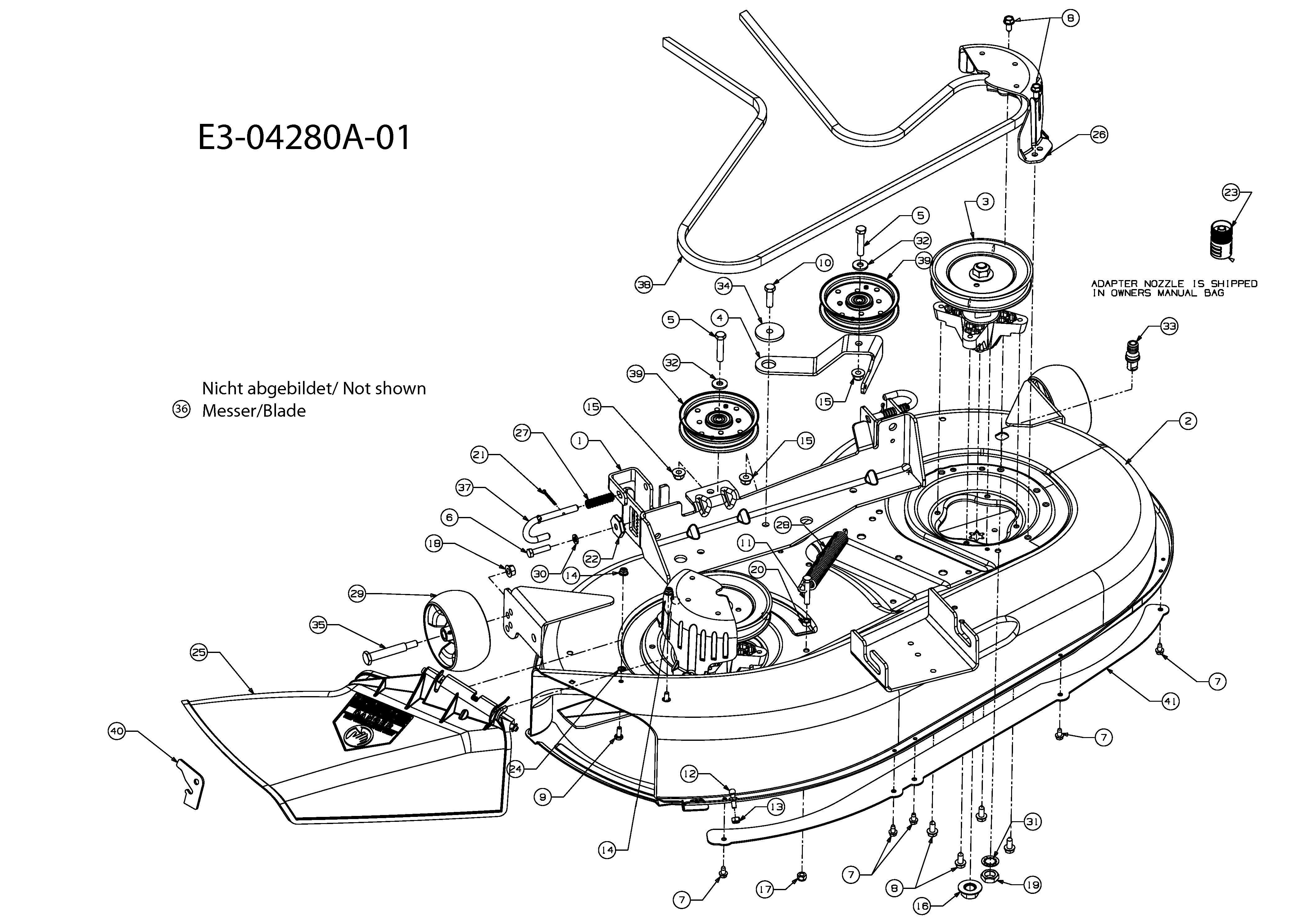

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04156	BRACKET DECK LIFT	N/A	POA
002	603-04335C	COVER	N/A	POA
003	618-0624B	SPINDLE ASSY 6.3" DIA PULLEY	£177.99	Add
004	703-05824B	SUPPORT TENSIONER BELT	N/A	POA
005	710-0347	HEX SCR	£3.72	Add
006	710-0528	SCREW (DNR)	£3.55	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-0751	BOLT 069	£3.39	Add
010	710-3005	BOLT	£3.24	Add
011	710-3180	SCREW HEX CAP	£5.00	Add
012	711-04069	PIN:GRASSCATCHER:1/4-20	£16.01	Add
013	712-0324	HEX. INS L NUT	£3.69	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04065	NUT	£4.02	Add
016	712-05134	BLADE NUT	£3.81	Add
017	712-0429	NUT HEX.INS L NUT	£4.92	Add
018	712-0431	NUT	£3.20	Add
019	712-0641	NUT	£6.47	Add
020	712-3010	NUT 5/16 x 18	£2.77	Add
021	714-0470	COTTER PIN	£5.07	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
024	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
025	731-1032B	EJECTION FLAP	£92.54	Add
026	731-2231B	BELT GUARD	£60.13	Add
027	732-0306A	SPACER	£5.28	Add
028	732-0459C	EXTENSION SPRING	£18.91	Add
029	734-04155	WHEEL:DECK	£16.47	Add
030	736-0119	LOCK WASHER 5/16	£3.33	Add
031	736-0225	WASHER (RED)	£5.32	Add
032	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
033	737-04003D	NOZ:DECK:WATER	£19.14	Add
034	738-04162C	SPACER	£5.00	Add
035	738-3056	SHOULDER BOLT	£12.94	Add
036	742-0674-637	BLADE 21.20"LG STAR LOW BLACK	£55.23	Add
037	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
038	754-04137B	BELT-SPINDLE A SEC X 113.5 RZT	£67.42	Add
039	753-08171	KIT IDLER PULLEY	£37.57	Add
040	783-1025	STOP:CHUTE	£7.30	Add
041	753-0884	KIT DECK SKIRT	£118.63	Add
