MTD017103

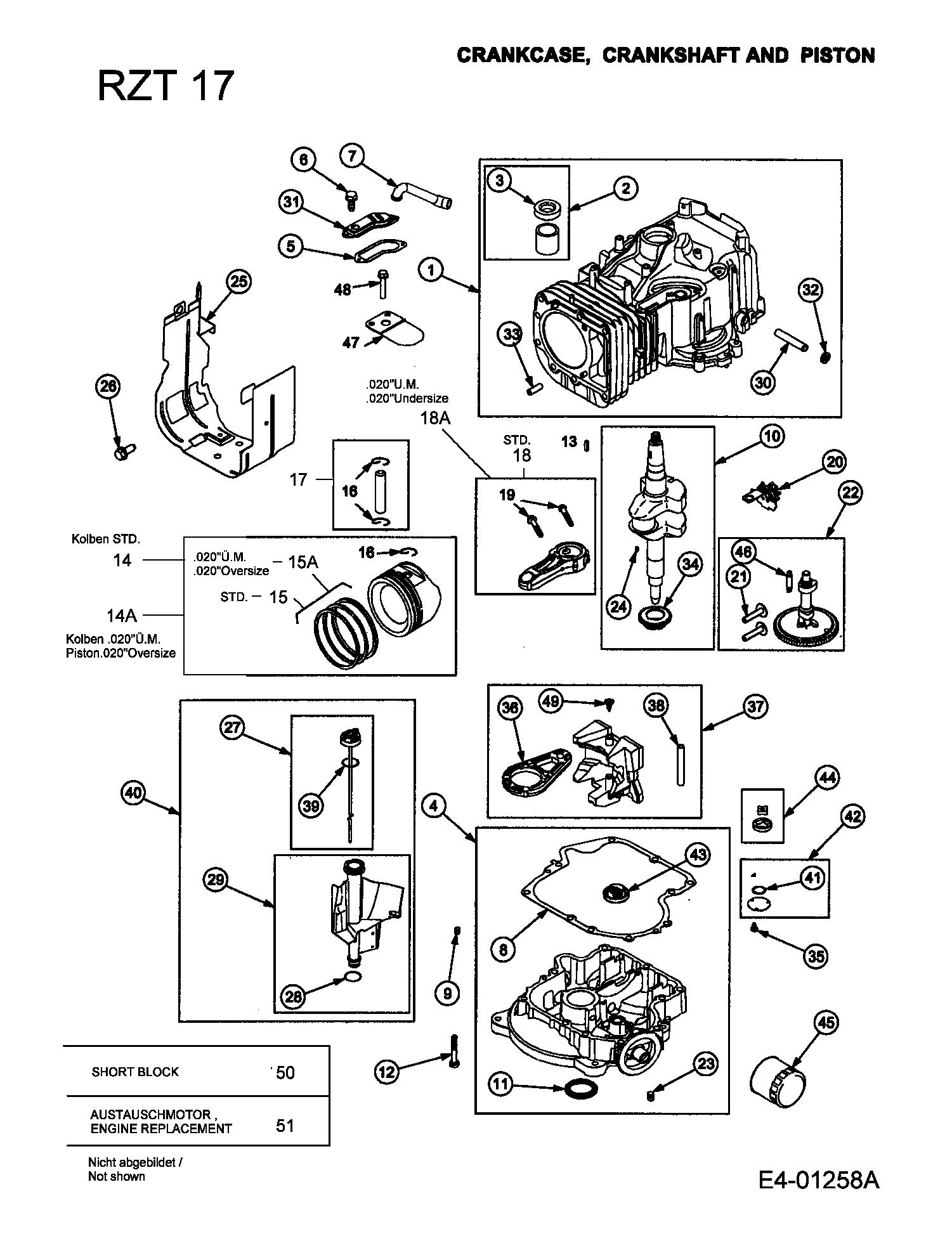

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	BS-697174	CYLINDER ASSY	£597.06	Add
002	BS-399265	KIT-BUSHING/SEAL	£69.63	Add
003	BS-391086		N/A	POA
004	BS-697188	SUMP-ENGINE	£264.19	Add
005	BS-697109	GASKET-BREATHER	£23.49	Add
006	BS-697157	SCREW	£11.93	Add
007	BS-697113	TUBE-BREATHER	£26.42	Add
008	BS-697110	GASKET-CRKCSE/015	£39.07	Add
009	BS-691680	PLUG-OIL DRAIN	£12.11	Add
010	BS-697127	CRANKSHAFT	£253.37	Add
011	BS-690947	SEAL-OIL	£22.68	Add
012	BS-692125	SCREW	£13.90	Add
013	BS-222698		N/A	POA
014	BS-699025	PISTON ASSY-STD	£227.60	Add
015	BS-699026	RING SET-STD	£130.13	Add
016	BS-698469	LOCK-PISTON PIN	£17.62	Add
017	BS-697099	PIN-PISTON/STD	£30.63	Add
018	BS-697126	ROD-CONNECTING	£163.99	Add
019	BS-692852	SCREW	£14.15	Add
020	BS-691968	SLINGER-GOVERNOR/OIL	£146.36	Add
021	BS-690564	TAPPET-VALVE	£36.31	Add
022	BS-698492	CAMSHAFT	£142.63	Add
023	BS-690283	PLUG	£12.14	Add
024	BS-691639	KEY-TIMING	£12.11	Add
025	BS-697107	SHIELD-CYLINDER	£102.34	Add
026	BS-691003	SCREW	£11.93	Add
027	BS-697086	DIPSTICK	£33.54	Add
028	BS-691032	SEAL-DIPSTICK TUBE	£17.31	Add
029	BS-697085	TUBE-DIPSTICK	£55.94	Add
030	BS-697144	BUSHING-GOV CRANK	£28.20	Add
031	BS-697112	COVER-BREA PASSAGE	£16.44	Add
032	BS-692407	SEAL-GOVERNOR SHAFT	£21.37	Add
033	BS-690959	PIN-LOCATING	£13.11	Add
034	BS-697128	GEAR-TIMING	£52.75	Add
035	BS-691033	SCREW	£15.02	Add
036	BS-697607	LINK-COUNTERWEIGHT	£67.86	Add
037	BS-697134	COUNTERWEIGHT	£209.37	Add
038	BS-697392	PIN-COUNTERWEIGHT	£16.65	Add
039	3081-B1-0003	O-RING BS-691031	£4.01	Add
040	BS-697087	DIPSTICK/TUBE ASSY	£110.60	Add
041	BS-690589	O-RING	N/A	POA
042	BS-499613	COVER-OIL PUMP	£33.24	Add
043	BS-690770	SCREEN-OIL PUMP	£52.75	Add
044	BS-499054	PUMP-OIL	£136.78	Add
045	BS-492932		N/A	POA
046	BS-693784	SHAFT-PUMP	£136.78	Add
047	BS-697124	REED-BREATHER	£15.20	Add
048	BS-697104	SCREW	£11.93	Add
049	BS-697156	PLUG-AVS CNTRWGT	£16.65	Add
050	BS-697762	SHORT BLOCK	N/A	POA
051	BS-31G77-0036		N/A	POA
14A	BS-699041	PISTON ASSY-020	£235.53	Add
15A	BS-687171		N/A	POA
18A	BS-697263	ROD-CONNECTING/020	£141.94	Add
