MTD017102

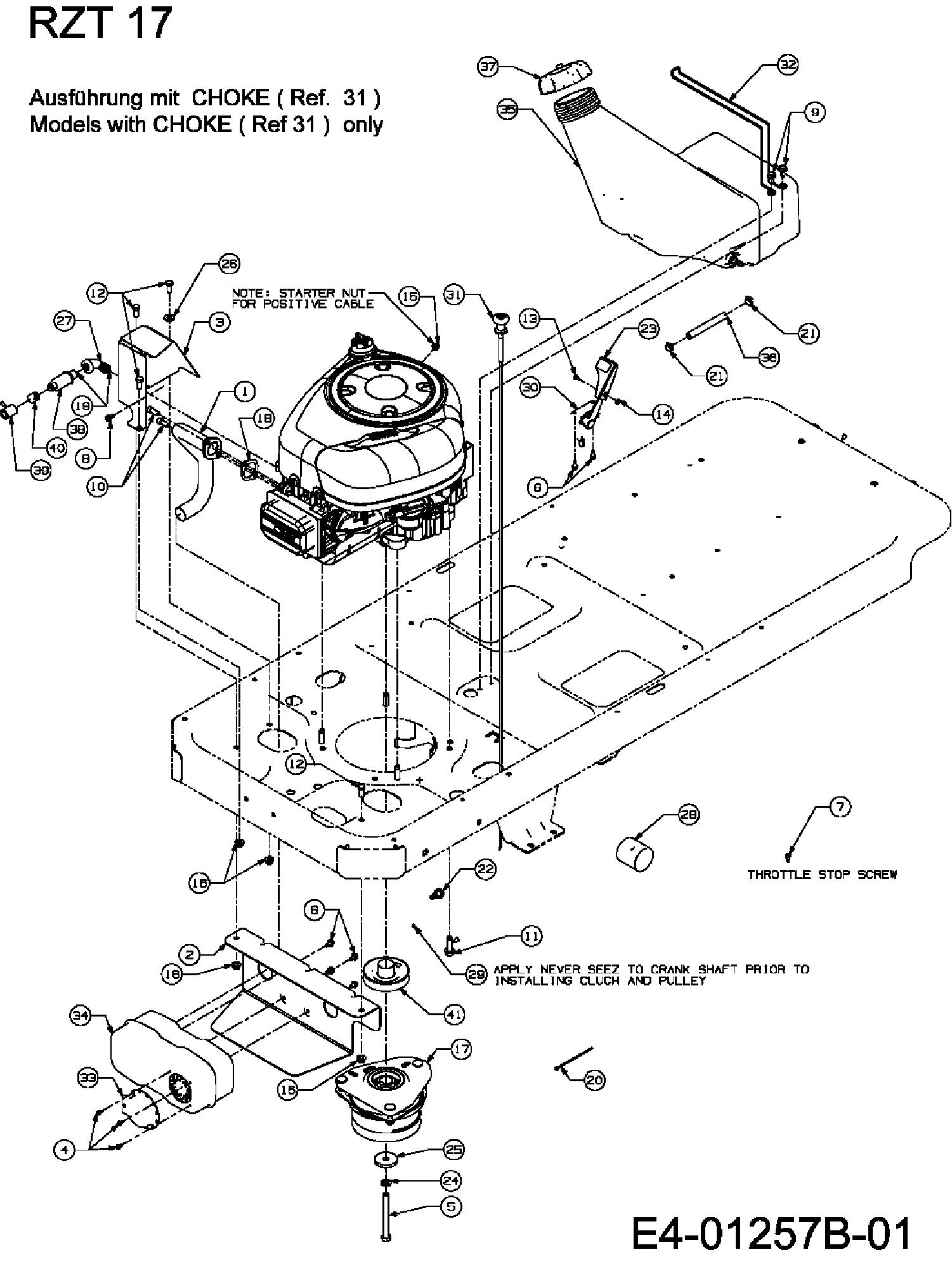

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04176	EXHAUST TUBE	£80.99	Add
002	703-05441A	EXHAUST BRACKET	£75.56	Add
003	703-05870	SHIELD HEAT	N/A	POA
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04248	SCREW_HEX CAP 7/16	£14.44	Add
006	710-04261	SCR:HL:#12-16:.50:HXINDWISH	£5.50	Add
007	710-0456	SCR:BSD:#10-16:0.500:HXINDWSH	£3.90	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
010	710-1314A	SOCKET HEAD SCREW	£3.24	Add
011	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
012	710-3008	HEX BOLT	£3.03	Add
013	710-3217	SCR:MACH:#8-32:0.375:TRUSPHI	£3.33	Add
014	712-0142	NUT:HEX:#8-32:GRA	£3.24	Add
015	712-0271	NUT:SEMS:1/4-20	£3.03	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	717-04183	CKUTCH-ELECTRIC PTO	£325.03	Add
018	721-0208	EXHAUST GSKT 10 & 11 HP	£5.80	Add
019	721-0331	SLNT:PIPE:PST 592 LOCTITE	N/A	POA
020	726-0197	TIE:CBL:PANDUIT SST-1M	£4.11	Add
021	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
022	726-3055	CLIP-CABLE RETAINER	£3.34	Add
023	731-04914	KNOB:THROTTLE CONTROL	£34.92	Add
024	736-0171	WASHER	£2.93	Add
025	736-04131	washer	£30.79	Add
026	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
027	737-0125	ELBOW	£25.03	Add
028	737-0169	MOTOR OIL SAE 30, SD,SE &	N/A	POA
029	737-0288	NO LONGER AVAILABLE	N/A	POA
030	746-04161	CBL:THROT/CHOKE:39,0" LG x.62	£39.49	Add
031	746-04235	CONT:CHOKE:47"LG 2"EXT EXT	£38.52	Add
032	747-04228A	WIRE-FUEL TANK	£48.55	Add
033	751-0564B	DEFLECTOR:MUFFLER	£15.24	Add
034	751-0617C	MFLR SINGLE INLET	£115.83	Add
035	751-10057C	TANK-FUEL	£118.78	Add
036	751-10349	HOSE:FUEL:LOW PERMEATION	£72.63	Add
037	751-3124C		N/A	POA
038	751-10517A	OIL DRAIN	£38.87	Add
039	751-3141	HOSE:EXTN:OIL DRAIN	N/A	POA
040	751-3142	CAP:DRAIN:OIL	£17.58	Add
041	756-0978B	PULLEY ENGINE ELECT. PTO	£83.07	Add
