MTD017100

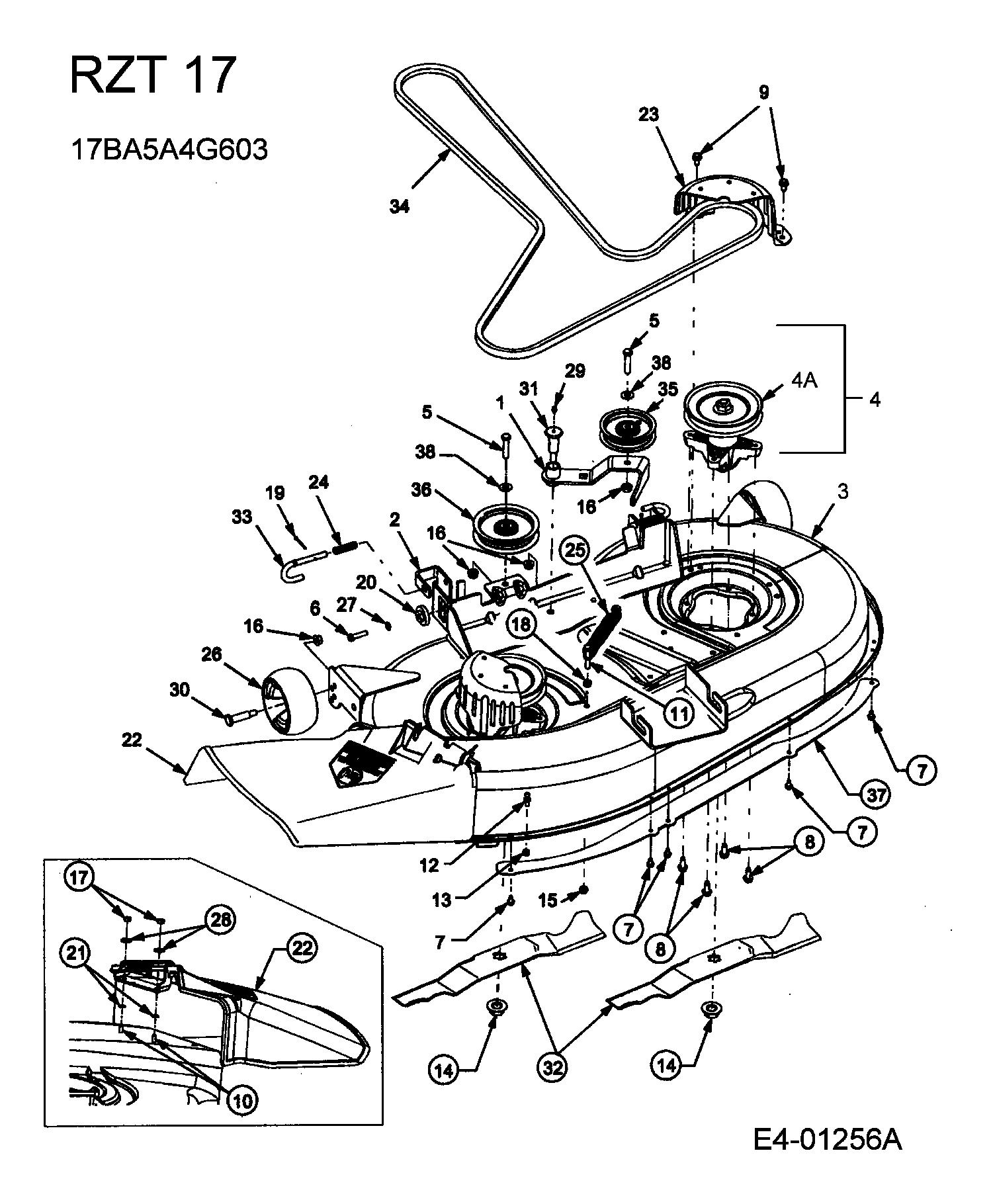

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04155 ARM-DECK IDLER 42" £82.04 Add
002 603-04156 BRACKET DECK LIFT N/A POA
003 603-04157 DECK ASSY. 42" £339.60 Add
004 618-0427 SPINDLE ASM-W/FTG 5.75"DIA PUL N/A POA
005 710-0347 HEX SCR £3.14 Add
006 710-0528 SCREW (DNR) £3.00 Add
007 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
008 710-0850 SKT-SCHRAUBE 7/16-14X2,5 £3.90 Add
009 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
010 710-0751 BOLT 069 £2.68 Add
011 710-3180 SCREW HEX CAP £2.82 Add
012 711-04069 PIN:GRASSCATCHER:1/4-20 £19.14 Add
013 712-0324 HEX. INS L NUT £1.36 Add
014 712-05134 NUT £2.92 Add
015 712-0429 NUT HEX.INS L NUT £3.77 Add
016 712-0431 NUT £2.71 Add
017 712-3006 NUT £2.35 Add
018 712-3010 NUT £2.35 Add
019 714-0470 COTTER PIN £2.50 Add
020 717-04074 GEAR DECK ADJUSTMENT £9.30 Add
021 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
022 731-1032B EJECTION FLAP £80.12 Add
023 731-2231B BELT GUARD £50.10 Add
024 732-0306A SPACER £4.44 Add
025 732-0459 SPRING 6.7 £11.14 Add
026 734-04039 WHL:DECK:5.0 DIA BALL £27.19 Add
027 736-0119 LOCK WASHER 5/16 £2.81 Add
028 736-0270 BELL WASHER £3.30 Add
029 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.00 Add
030 738-0373 AXLE BOLT £5.74 Add
031 638-04012A BOLT £13.46 Add
032 742-04087 BLADE £56.45 Add
033 747-1116 QUICK RELEASE PINS RH LONG £12.30 Add
034 754-04045 BELT (DECK) £72.38 Add
035 756-0627D PUL:IDLR:FLAT 3.5 OD £22.97 Add
036 756-1229 PUL:IDLR: 4.06 DIA. W/FLG £71.68 Add
037 753-0884 KIT DECK SKIRT £87.88 Add
038 736-3072 WASH:FLAT:.38 x.93 x.110:HT £3.51 Add
04A 756-1188 PULLEY £17.95 Add
