MTD017098

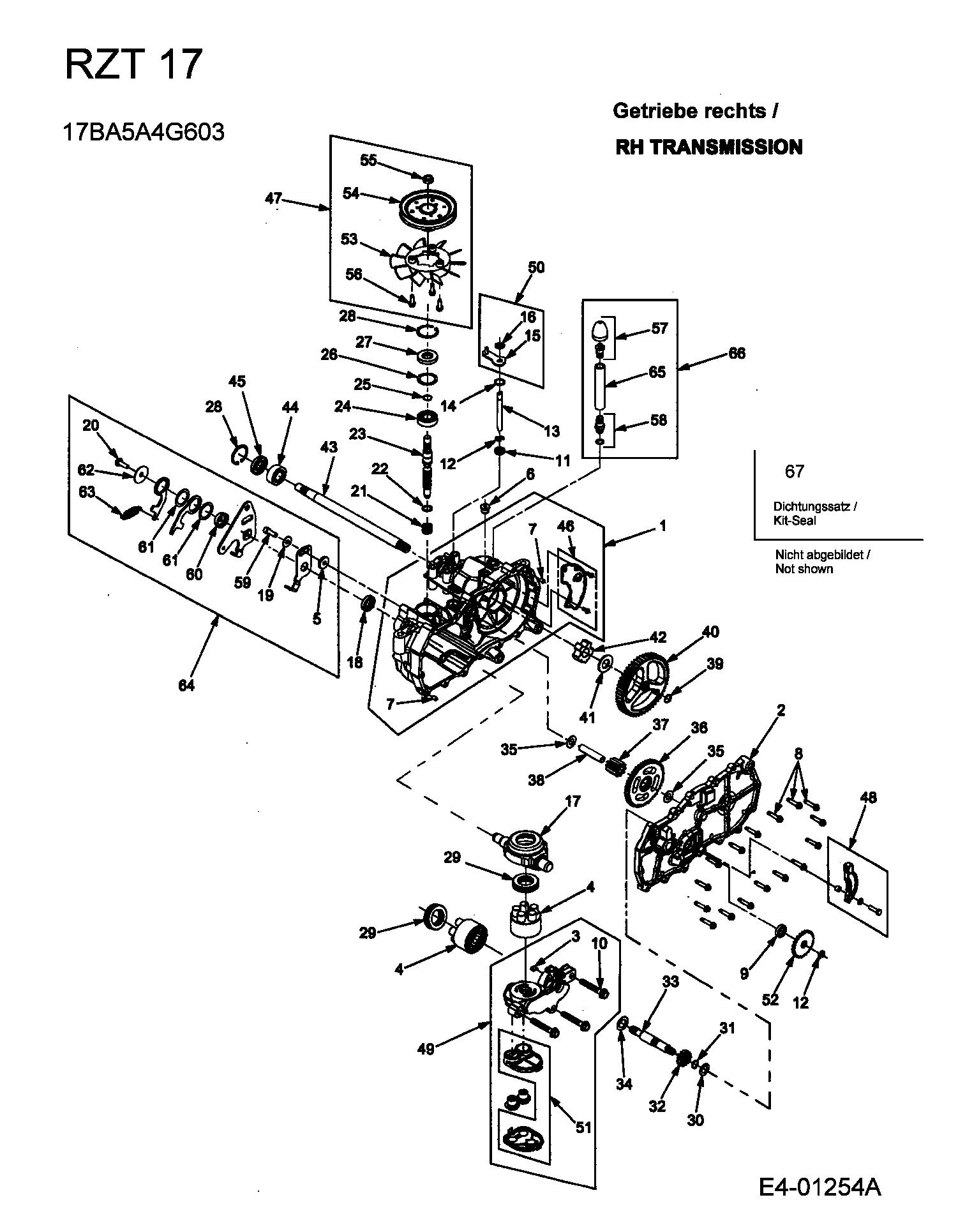

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017098

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 HG-70862R N/A POA
002 HG-70863R SIDE ASM, RH RZT £256.72 Add
003 HG-51448 PLATE, BYPASS N/A POA
004 HG-70331 CRANKCASE-COMP £239.21 Add
005 HG-51949 N/A POA
006 HG-9005110-5600 PLUG £20.06 Add
007 HG-9004800-2506 N/A POA
008 HG-51190 HEXFLANGE SCREW 1/4-20X1.25 £8.25 Add
009 HG-70719 KIT SEAL £39.56 Add
010 HG-50016 Screw £17.99 Add
011 HG-51626 SEAL, LIP £17.70 Add
012 HG-51628 Circlip £10.83 Add
013 HG-51625 N/A POA
014 HG-51627 Circlip N/A POA
015 HG-51910 N/A POA
016 HG-51630 Circlip £8.65 Add
017 HG-51048 SWASHPLATE,TRUNNION MACHINED £169.66 Add
018 HG-51140 SEAL-LIP 18X32X7 DIN 3760 £24.58 Add
019 736-0371 WASH:THRST:.343 X .880 X .062 £2.71 Add
020 HG-51812 SCREW, PATCH £18.37 Add
021 HG-2003014 Spring £5.99 Add
022 HG-3003017 N/A POA
023 HG-51062 SHAFT,INPUT £153.01 Add
024 HG-50315 SELF-ALIGNING BEARING £44.70 Add
025 HG-2000022 Circlip £5.75 Add
026 HG-50951 bush £9.50 Add
027 HG-51161 SEALING WASHER £34.62 Add
028 28.3592.40 RING-SNAP HG-50329 N/A POA
029 HG-50551P THRUST BEARING HG-50551 £54.00 Add
030 HG-44371 WASHER. 1.59x1.032x.060 £23.37 Add
031 HG-44145 SNAP RING £5.89 Add
032 HG-51130 SPROCKET-#60 £16.40 Add
033 HG-51632 N/A POA
034 HG-51069 WASHER,MOTOR SHAFT £11.03 Add
035 HG-50132 washer £5.41 Add
036 HG-51129 Gear £103.44 Add
037 HG-51043 Gear N/A POA
038 HG-51083 PIN N/A POA
039 HG-44871 RETAINING RING £14.94 Add
040 HG-51633 N/A POA
041 HG-44875 washer £6.93 Add
042 HG-51088 BEARING SLEEVE £57.14 Add
043 HG-51954 SHAFT-AXLE RZT £159.25 Add
044 HG-51089 BEARING £55.52 Add
045 HG-51066 SEAL LIP £20.48 Add
046 HG-70868R PLATE KIT-RH EXPANSION N/A POA
047 HG-70583 KIT FAN PULLEY N/A POA
048 HG-70865 BRAKE ARM N/A POA
049 HG-70864R KIT - CENTER SECTION RH N/A POA
050 HG-71006 N/A POA
051 HG-70911 N/A POA
052 HG-51635 WASHER £64.44 Add
053 HG-51362 FAN-HYDRO: I SERIES £38.02 Add
054 HG-51182 PULLEY ASSY.DRIVE £100.15 Add
055 HG-51244 NUT:JAM:1/2-20:INS LOCK £5.10 Add
056 HG-50752 SCREW-SHLD £28.74 Add
057 HG-70921 N/A POA
058 HG-70110 N/A POA
059 HG-51616 SCREW, PATCH N/A POA
060 HG-51947 N/A POA
061 HG-51948 N/A POA
062 HG-51950 WASHER N/A POA
063 HG-51399 SPRING, EXTENSION £20.75 Add
064 HG-71095 N/A POA
065 HG-51401 TUBE-VENT .50 X 4" £42.15 Add
066 HG-71004 KIT BREATHER £68.30 Add
067 HG-70853 GASKET SET N/A POA
