MTD017095

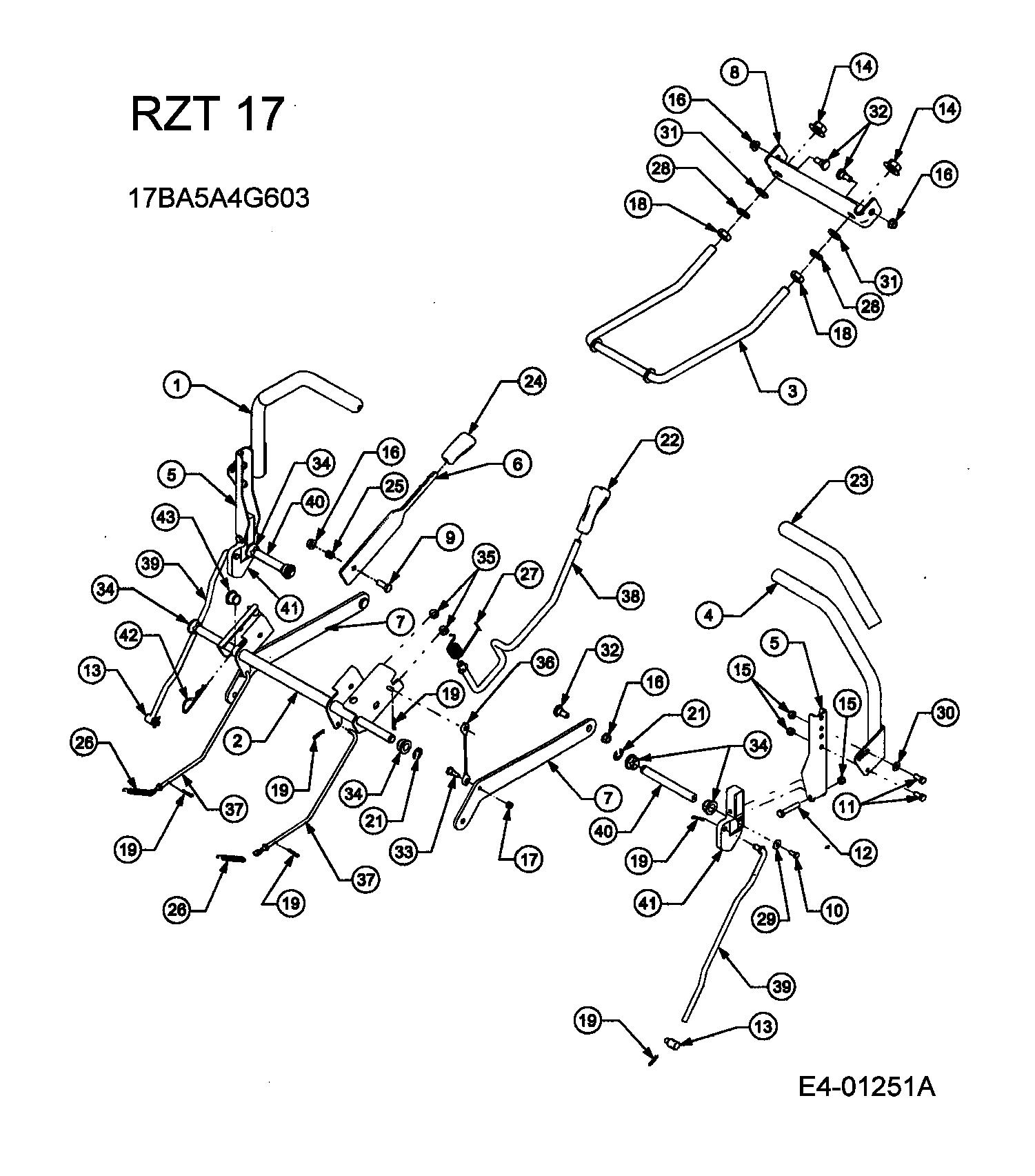

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017095

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04150 N/A POA
002 603-04160 N/A POA
003 603-04161 N/A POA
004 603-04181 N/A POA
005 703-05387 BRKT-STEERING PIVOT RZT £21.79 Add
006 703-05396 LEVER, PARK BRAKE ENGAGEMENT £54.29 Add
007 703-05401 N/A POA
008 703-05414 N/A POA
009 710-0514 HEX BOLT £3.22 Add
010 710-0751 BOLT 069 £2.68 Add
011 710-3008 HEX BOLT £2.57 Add
012 710-3180 SCREW HEX CAP £2.82 Add
013 711-0198 PIVOT BUSHING £9.13 Add
014 712-05134 NUT £2.92 Add
015 712-0429 NUT HEX.INS L NUT £3.77 Add
016 712-0431 NUT £2.71 Add
017 712-0896 NUT:HEXLK:1/4-28:GR2:NYLON £4.67 Add
018 712-3056 NUT:JAM:5/8-18:GR5 £4.18 Add
019 714-0104 PIN INTERNAL COTTER £2.36 Add
021 716-0106A RING E TYPE .625 DIA SHAFT £2.82 Add
022 720-0311 KNOB £17.05 Add
023 731-04719A GRIP-LAPBAR 731-04719 £23.52 Add
024 731-04735 Handle £58.85 Add
025 732-0334 COMPRESSION SPRING £2.71 Add
026 732-0611 SPR:EXTN:.38 OD x 3.6 LG £5.21 Add
027 732-0874 SPRING-TORSION £10.02 Add
028 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
029 736-0270 BELL WASHER £3.30 Add
030 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
031 736-0366 WASHER £3.34 Add
032 738-0143 SHOULDER BOLT £11.95 Add
033 738-04100 N/A POA
034 741-0225 HEX FLANGE BEARING £4.14 Add
035 741-0715 FLANGE BEARING £3.96 Add
036 746-0970 BRAKE CABLE £10.17 Add
037 747-04218 N/A POA
038 747-04224 LIFT LEVER N/A POA
039 747-04225 N/A POA
040 747-04226 ROD N/A POA
041 748-04052 FITTING,CONNECTOR £69.65 Add
042 714-3020 PIN-COTTER £3.73 Add
043 741-3074 BRG:FLG:.626x.938x.344 £6.75 Add
