STEERING COLUMN TO 03.11.2015

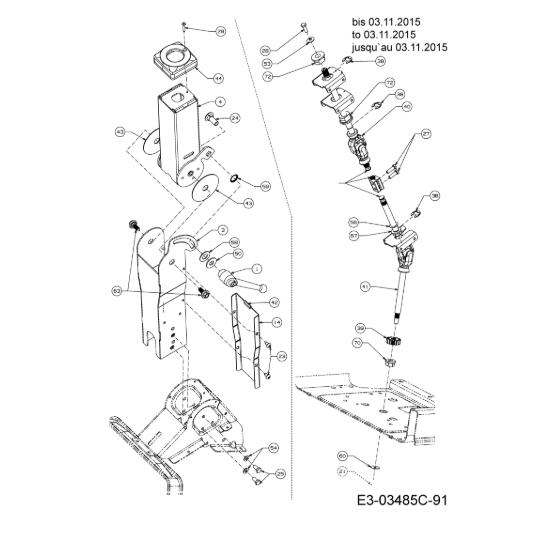

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005058	LEVER ADJUST/LOCK STEERING	£73.24	Add
005	647-04270C	SHAFT ASM FWD PEDAL	£91.96	Add
006	647-05042A	SHAFT ASM BRAKE	£80.54	Add
015	703-09837A	LINK NEUTRAL RETURN	£32.21	Add
016	703-10338A	BRACKET PIVOT FORWARD PEDAL	£56.62	Add
017	703-10350	PLATE REVERSE PEDAL PIVOT	£30.00	Add
019	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
020	710-0376	SCREW HEX CAP 5/16	£9.02	Add
021	710-0433	HEX BOLT	£6.66	Add
022	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
024	710-05375	CARRIAGE BOLT	£7.48	Add
025	710-0538	HEX L BOLT	£4.15	Add
026	710-0606	SCREW (RED)	£3.33	Add
027	710-0643	BOLT	£3.85	Add
028	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
029	710-1331	SCR:AB:#10-16:1.250:CSKPHI	£8.09	Add
030	710-3005	BOLT	£3.24	Add
031	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
033	712-04063	FLANGED NUT	£4.20	Add
034	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
035	712-04065	NUT	£4.02	Add
036	714-0162	COTTER PIN	£2.79	Add
037	714-04040	PIN-COTTER	£4.38	Add
038	716-0231	E RING (RED)	£2.97	Add
039	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
040	717-05247	UPPER SHAFT	£140.78	Add
043	731-09831	PLATE COLUMN	£14.60	Add
044	731-11491A	COVER COLUMN	£33.28	Add
045	732-04748	SPRING EXTENSION	£21.34	Add
046	732-04949	SPRING TORSION LH	£14.62	Add
047	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
048	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
049	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
050	736-0179	WASHER-FL	£14.34	Add
051	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
052	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
053	736-0242	BELL WASHER	£3.72	Add
054	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
055	736-0314	WASHER-THRUST	£2.97	Add
056	736-0337	WASHER:FLAT:.634x1.00x.04:HT	£3.19	Add
057	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
058	736-04602	WASHER	£13.16	Add
059	736-0760	WASHER	£4.01	Add
060	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
061	738-0296	SCR SHLDR	£6.59	Add
062	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
063	738-04130A	SHOULDER SCREW	£3.37	Add
064	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
065	738-04552B	SPACER	£11.82	Add
066	738-0929	HEX CAP SCREW,1/2-13X1.75	£9.71	Add
067	741-0225	HEX FLANGE BEARING	£4.92	Add
068	741-04425	BALL BEARING	£25.86	Add
069	741-0495	FLANGED BRG.	£8.22	Add
070	741-05052	FLANGE BEARING	£14.30	Add
071	747-05654A	ROD BRAKE	£57.87	Add
073	748-04203	LATCH:CRUS	£17.46	Add
074	748-05045	STEERING COUPLING	£30.43	Add
075	750-06497	SPACER	£16.18	Add
