STEERING COLUMN 04.11.2015

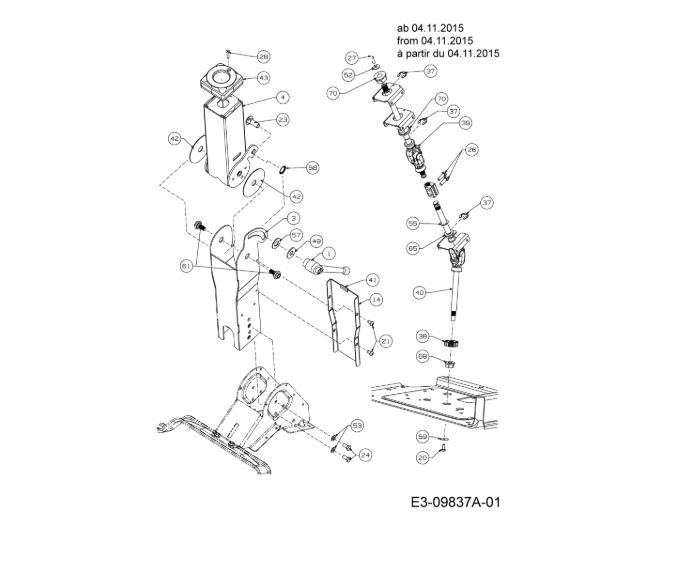

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	02005058	LEVER ADJUST/LOCK STEERING	£73.24	Add
005	647-05042A	SHAFT ASM BRAKE	£80.54	Add
006	647-05087	DRIVE PEDAL	£106.04	Add
015	703-09837A	LINK NEUTRAL RETURN	£32.21	Add
016	703-10338A	BRACKET PIVOT FORWARD PEDAL	£56.62	Add
018	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
019	710-0376	SCREW HEX CAP 5/16	£9.02	Add
020	710-0433	HEX BOLT	£6.66	Add
021	710-04483	SCR:TT:1/4-20:0.500 PANTRXI	£11.98	Add
022	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
023	710-05375	CARRIAGE BOLT	£7.48	Add
024	710-0538	HEX L BOLT	£4.15	Add
025	710-0606	SCREW (RED)	£3.33	Add
026	710-0643	BOLT	£3.85	Add
027	710-1245B	HHCS:5/16-24:.875:GR8:LOCK	£3.42	Add
028	710-1331	SCR:AB:#10-16:1.250:CSKPHI	£8.09	Add
029	710-3005	BOLT	£3.24	Add
030	711-05068A	PIN:CLV:5/16 x 4.135	£9.82	Add
032	712-04063	FLANGED NUT	£4.20	Add
033	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
034	712-04065	NUT	£4.02	Add
035	714-0162	COTTER PIN	£2.79	Add
036	714-04040	PIN-COTTER	£4.38	Add
037	716-0231	E RING (RED)	£2.97	Add
038	717-04960	GEAR STEERING 14 TEETH	£22.82	Add
039	717-05247	UPPER SHAFT	£140.78	Add
042	731-09831	PLATE COLUMN	£14.60	Add
043	731-11491A	COVER COLUMN	£33.28	Add
044	732-04748	SPRING EXTENSION	£21.34	Add
045	732-04949	SPRING TORSION LH	£14.62	Add
046	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
047	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
048	735-04136	PAD:PEDAL:BRAKE	£20.70	Add
049	736-0179	WASHER-FL	£14.34	Add
050	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
051	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
052	736-0242	BELL WASHER	£3.72	Add
053	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
054	736-0314	WASHER-THRUST	£2.97	Add
055	736-0337	WASHER:FLAT:.634x1.00x.04:HT	£3.19	Add
056	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
057	736-04602	WASHER	£13.16	Add
058	736-0760	WASHER	£4.01	Add
059	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD	£3.49	Add
060	738-0296	SCR SHLDR	£6.59	Add
061	738-04130A	SHOULDER SCREW	£3.37	Add
062	738-04483	SPCR:SHLDR:.375X.625X.20	£5.00	Add
063	738-04552B	SPACER	£11.82	Add
064	738-0929	HEX CAP SCREW,1/2-13X1.75	£9.71	Add
065	741-0225	HEX FLANGE BEARING	£4.92	Add
066	741-04425	BALL BEARING	£25.86	Add
067	741-0495	FLANGED BRG.	£8.22	Add
068	741-05052	FLANGE BEARING	£14.30	Add
069	747-05654A	ROD BRAKE	£57.87	Add
070	748-0209	BEARING FLANGE	£13.84	Add
071	748-04203	LATCH:CRUS	£17.46	Add
072	748-05045	STEERING COUPLING	£30.43	Add
073	750-06497	SPACER	£16.18	Add
