DECK LIFT 2

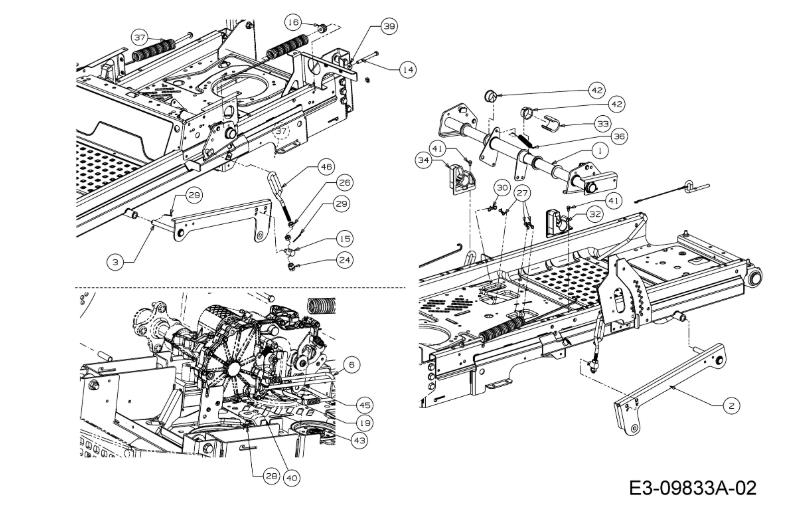

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
004	603-05143A	HANDLE LATCH ASSY	£154.52	Add
006	647-05027	ROD ASM BRAKE W/SPRING	£30.20	Add
008	703-10475	SPACER FLAT	£9.20	Add
010	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
011	710-0514	HEX BOLT	£3.81	Add
012	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD	£5.96	Add
013	710-3008	HEX BOLT	£3.03	Add
014	710-3279	SCREW,HEX CAP	£16.56	Add
015	711-06284	FERRULE	£23.64	Add
016	711-0635	PLATE SPRING SHIFT	£33.54	Add
017	711-0642A	BUTTON HANDLE	£5.20	Add
018	711-06591	PIVOT PIN	£55.80	Add
019	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
020	712-0266A	NUT:JAMLK:3/8-16:GR5	£4.39	Add
021	712-0301	NUT-HEX JAM	£17.52	Add
022	712-04063	FLANGED NUT	£4.20	Add
023	712-04217	NUT FLANGE LOCK	£2.52	Add
024	712-05046	NUT	£8.57	Add
025	712-05154	LOCK NUT 3/4-10	£8.86	Add
026	712-3048	HEX JAM NUT 1/2-13 GR.5	£10.38	Add
027	714-0211	ROLL PIN	£7.92	Add
028	714-04040	PIN-COTTER	£4.38	Add
029	714-0470	COTTER PIN	£5.07	Add
030	714-05005	PIN 7/16 INCH-1/2 INCH	£5.64	Add
032	731-09683	BRACKET DECK LIFT RH	£26.76	Add
033	731-09687	SPACER SHAFT	£21.42	Add
034	731-09707	BRACKET DECK LIFT LH	£21.38	Add
035	731-3158	GRIP:HNDL:DECK LIFT	£45.81	Add
036	732-04587	SPR:EXTN:.63 DIA x 4.95 LG	£18.44	Add
037	732-05096	SPRING BRAKE TENSION	£32.06	Add
038	732-3097	COMP SPRING:.4ID x 8.52 LG	£6.50	Add
039	736-0262	WASHER	£1.62	Add
040	736-0314	WASHER-THRUST	£2.97	Add
041	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
042	741-05059	FLANGE BEARING	£13.20	Add
043	741-05170	BEARING FLANGE	£12.85	Add
044	741-05195	FLANGE BEARING	£13.98	Add
045	747-05592B	ROD	£31.39	Add
046	747-06259A	LIFT LINK	£30.49	Add
047	747-06355	ROD CUT HEIGHT	£28.27	Add
048	747-06644A	ROD DECK HANGER	£110.70	Add
049	750-06031	SPACER	£4.99	Add
