MTD011698

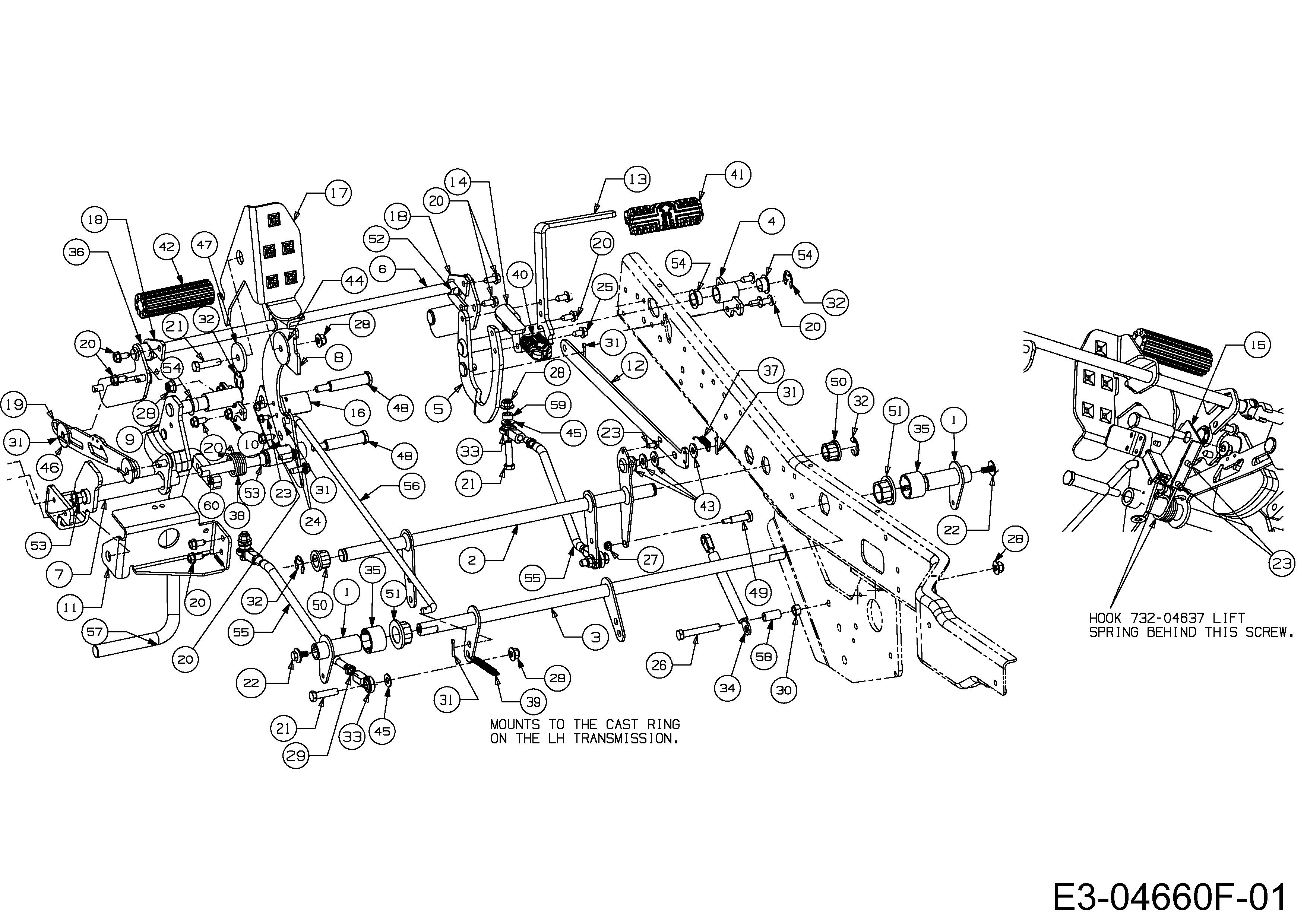

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04526B-Z	BRAKE LEVER	£16.91	Add
002	603-04535B-Z	SHF ASM:PED CONT	£100.18	Add
003	603-04560A	SHF ASM:CROSS:BRAKE	N/A	POA
004	603-04587A	HUB ASM:PIVOT:PED	£31.14	Add
005	603-04590	PED ASM:FWD REV	N/A	POA
006	603-04697	SHAFT ASM:LIFT:CRG	£85.92	Add
007	603-04699A	PIVOT ASM:LIFT PEDAL	N/A	POA
008	603-04704	PED ASM:PIVOT:BRAKE	£49.22	Add
009	603-04750A	PLT ASM:PENDULUM SW	N/A	POA
010	603-04751	HUB VOLLST:PIVOT:PENDULUM SW	£19.77	Add
011	603-04775	BEAM ASM:LOGSP:31/33 W/O TRAY	N/A	POA
012	703-06339A-S	LINK:FWD/REV	£34.05	Add
013	703-06636A	PED:FWD:FMZ	£41.35	Add
014	703-06654	PEDAL:REVERSE	£27.52	Add
015	703-06676	BRAKE BRACKET	N/A	POA
016	703-06678A-Z	BRKT:BRAKE SW:TO BE ZINC PLTED	£13.94	Add
017	703-07102	PEDAL-BRAKE	£75.86	Add
018	703-07198	LIFT:SUPPORT	£17.67	Add
019	703-07509A	LIFT:LINK:CONNECTOR	£25.29	Add
020	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
021	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
022	710-05339	SCR:SEMS:5/16-24:.750:GR5	£5.66	Add
023	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
024	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
025	710-0604A	SCREW	£3.62	Add
026	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD	£5.96	Add
027	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
028	712-04065	NUT	£4.02	Add
029	712-0711	NUT	£3.07	Add
030	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
031	714-0474	PIN (RED)	£3.20	Add
032	716-0231	E RING (RED)	£2.97	Add
033	723-04080	JOINT BALL FEMALE 3/8-24 RH	£35.94	Add
034	727-04141	CYL:DAMPER .59 OD x 7.84 LG	£45.40	Add
035	731-05163	SPACER: 1.50ODX1.00IDX1.00LG	£4.62	Add
036	731-06918	SPACER:.62ID x .50 LG	£6.86	Add
037	732-04549	SPR:EXTN:.375 OD x 1.48 LG	£16.77	Add
038	732-04637	SPR:TORSN:1.120 ID x .675 LG	£8.53	Add
039	732-0611	SPR:EXTN:.38 OD x 3.6 LG	£5.34	Add
040	735-04117	PAD:PEDAL:REVERSE	£23.45	Add
041	735-04118A	PAD:PEDAL:FORWARD	£19.97	Add
042	735-04174	PAD:FOOT 4.6" LG	£17.46	Add
043	736-0300	WASHER	£2.81	Add
044	736-04018	WASH:FLAT:.380x2.000x.120	£5.91	Add
045	736-0864	WASHER THRUST	£3.58	Add
046	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
047	738-04162C	SPACER	£5.00	Add
048	738-04216A	BOLT:SHLDR:.625x2.515:3/8-16	£25.14	Add
049	738-0572	SHOULDER BOLT	£8.74	Add
050	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
051	741-04324	BRG:FLG:HEX:1.25ID x.775LG	£9.92	Add
052	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
053	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
054	741-3084	BUSH	£11.51	Add
055	747-04883A	ROD:CONT:F/R FC	£29.82	Add
056	747-04996	ROD:BRAKE:FMZ	£30.22	Add
057	747-05103	LIFT:PEDAL	£84.34	Add
058	750-0434	SPACER:.375 x.50 x 1.02 LG	£3.69	Add
059	750-04776	SPACER .380ID X.625 OD X .265	£10.66	Add
060	750-05244	SHAFT:LIFT:PEDAL	£24.60	Add
