MTD012240

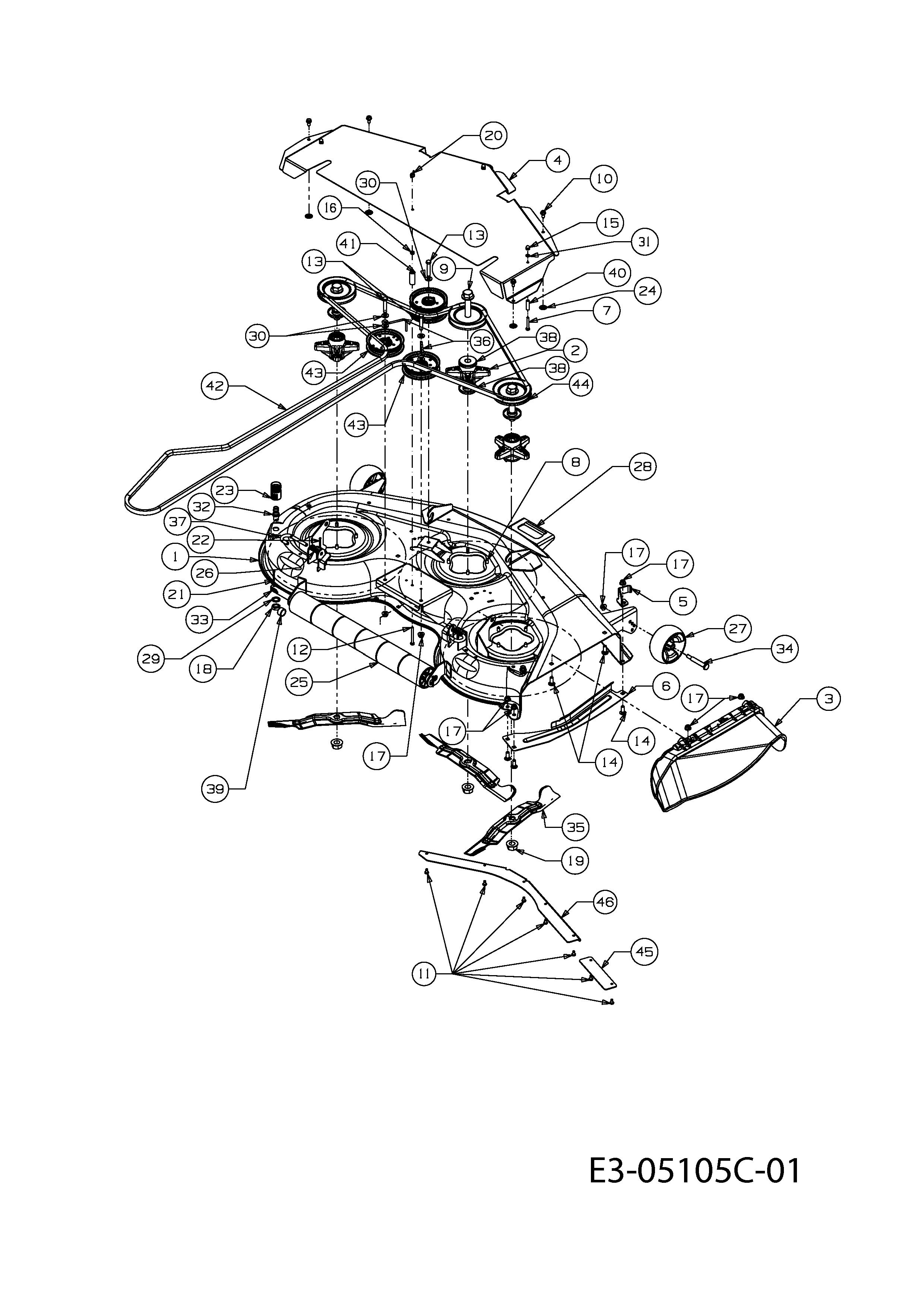

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04655A	DECK ASM:50" FMZ	£1,758.83	Add
002	618-04426	SPINDLE ASSY	£136.79	Add
003	631-04092C	CHUT ASM:48/50/54" DECK EXPORT	£57.60	Add
004	703-07148	COVER:DECK:50" FMZ	£263.27	Add
005	703-3279	STOP:CHUT:DFL	£27.80	Add
006	703-3511B637	GUARD BLACK	£30.09	Add
007	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-04781	BOLT	£34.49	Add
010	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
011	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
012	710-1122	SCREW HHCS:1/4-20:2.50:GR5:STD	£3.90	Add
013	710-3144	SCREW	£3.28	Add
014	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
015	712-0264	NUT:ACORN:1/20-20:w/o LOCK	£4.58	Add
016	712-0291	LOCK-NUT	£2.77	Add
017	712-04065	NUT	£4.02	Add
018	712-0641	NUT	£6.47	Add
019	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
020	712-3087	WING NUT	£3.62	Add
021	714-0162	COTTER PIN	£2.79	Add
022	714-0470	COTTER PIN	£5.07	Add
023	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
024	726-04040	NUT:PUSH:5/16	£5.31	Add
025	731-3305	ROLLER:DECK:48/50/60	£43.85	Add
026	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
027	734-04155	WHEEL:DECK	£16.47	Add
028	735-04130	TRIM:EDGE:RZ	£12.81	Add
029	736-0225	WASHER (RED)	£5.32	Add
030	736-0300	WASHER	£2.81	Add
031	736-0329	L. WASHER	£3.26	Add
032	737-04003D	NOZ:DECK:WATER	£19.14	Add
033	738-04260	SHF:.75 DIA x 26.893 LG	£70.33	Add
034	738-3056	SHOULDER BOLT	£12.94	Add
035	742-04068C	BLADE	£40.81	Add
036	747-04530	ROD KEEPER	£19.05	Add
037	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
038	748-3065A	SPCR:SPDL:DECK	£14.96	Add
039	750-0212	SPCR:.82 ID x 1.00 OD x.53	£12.80	Add
040	750-04456	SPACER	£5.75	Add
041	750-04783	SPACER:.25 x .68 x 1.75	£6.72	Add
042	754-04188	DECK BELT	£100.15	Add
043	753-08171	KIT IDLER PULLEY	£37.57	Add
044	756-3096	PUL:SPDL:60" DECK	£35.54	Add
045	783-04415	SKIRT:RH:50"	N/A	POA
046	783-06125	SKIRT:CNTR:50" EXPORT	N/A	POA
